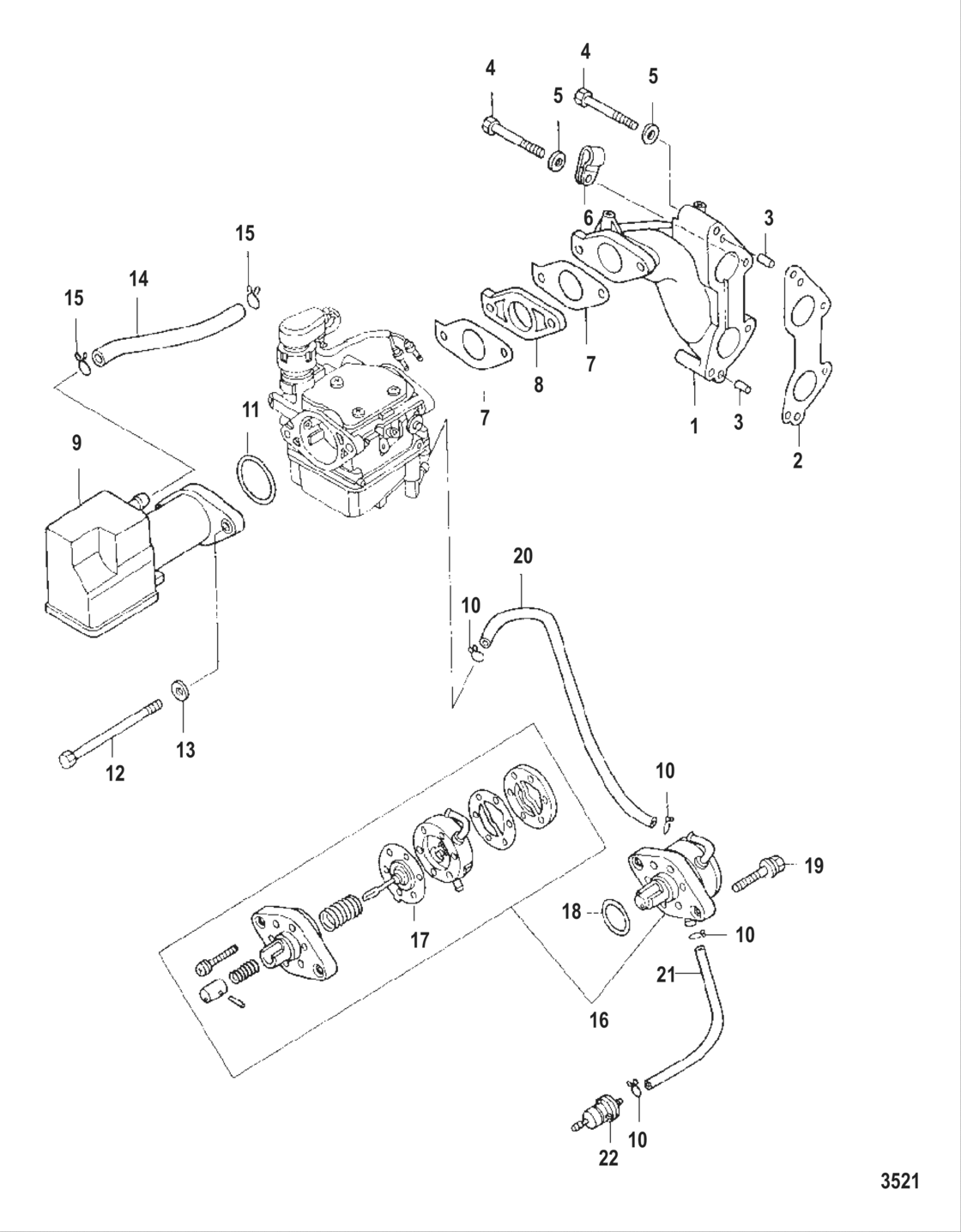

Intake Manifold And Fuel Pump Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R051685 THRU 0R123564
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
804887002
Manifold, inlet
|
804887002 |
— | ||
|
2
|
2
853525003
Gasket
|
853525003 |
— | ||
|
3
|
3
16119 Pin, dowel |
16119 |
US $6.72 |
||
|
4
|
4
16125 Bolt, gear housing |
16125 |
US $7.31 |
||
|
5
|
5
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
6
|
6
953951 Clamp |
953951 |
US $8.35 |
||
|
7
|
7
16327002
Gasket, carburetor
|
16327002 |
— | ||
|
8
|
8
853526004
Insulator
|
853526004 |
— | ||
|
9
|
9
853728003
Silencer, air
|
853728003 |
— | ||
|
10
|
10
95395 Clip, stainless steel, fuel line |
95395 |
US $2.67 |
||
|
11
|
11
825057005
O-ring
|
825057005 |
— | ||
|
12
|
12
855809001 Bolt |
855809001 |
US $12.86 |
||
|
13
|
13
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
14
|
14
851848012
Tubing,
|
851848012 |
— | ||
|
15
|
15
952245 Clamp |
952245 |
US $2.78 |
||
|
16
|
16
803529A04
Pump, fuel
|
803529A04 |
— | ||
| replacement | |||||
|
16
|
16
803529T04 Fuel pump |
803529T04 |
US $234.72 |
||
|
17
|
17
853731004 Diaphragm set |
853731004 |
US $858.22 |
||
|
18
|
18
161313 O-ring |
161313 |
US $4.18 |
||
| replacement | |||||
|
18
|
18
16109003 O-ring |
16109003 |
US $4.18 |
||
|
19
|
19
823042 Bolt |
823042 |
US $3.36 |
||
|
20
|
20
851848013
Tubing,
|
851848013 |
— | ||
|
21
|
21
851848006
Hose, , fuel
|
851848006 |
— | ||
|
22
|
22
16248 Filter, fuel |
16248 |
US $29.73 |
||
|
NI
|
NI
895274A05
Powerhead assembly
|
895274A05 |
— | ||
|
NI
|
NI
835427A05 Gasket Set Powerhead |
835427A05 |
US $130.34 |
||
