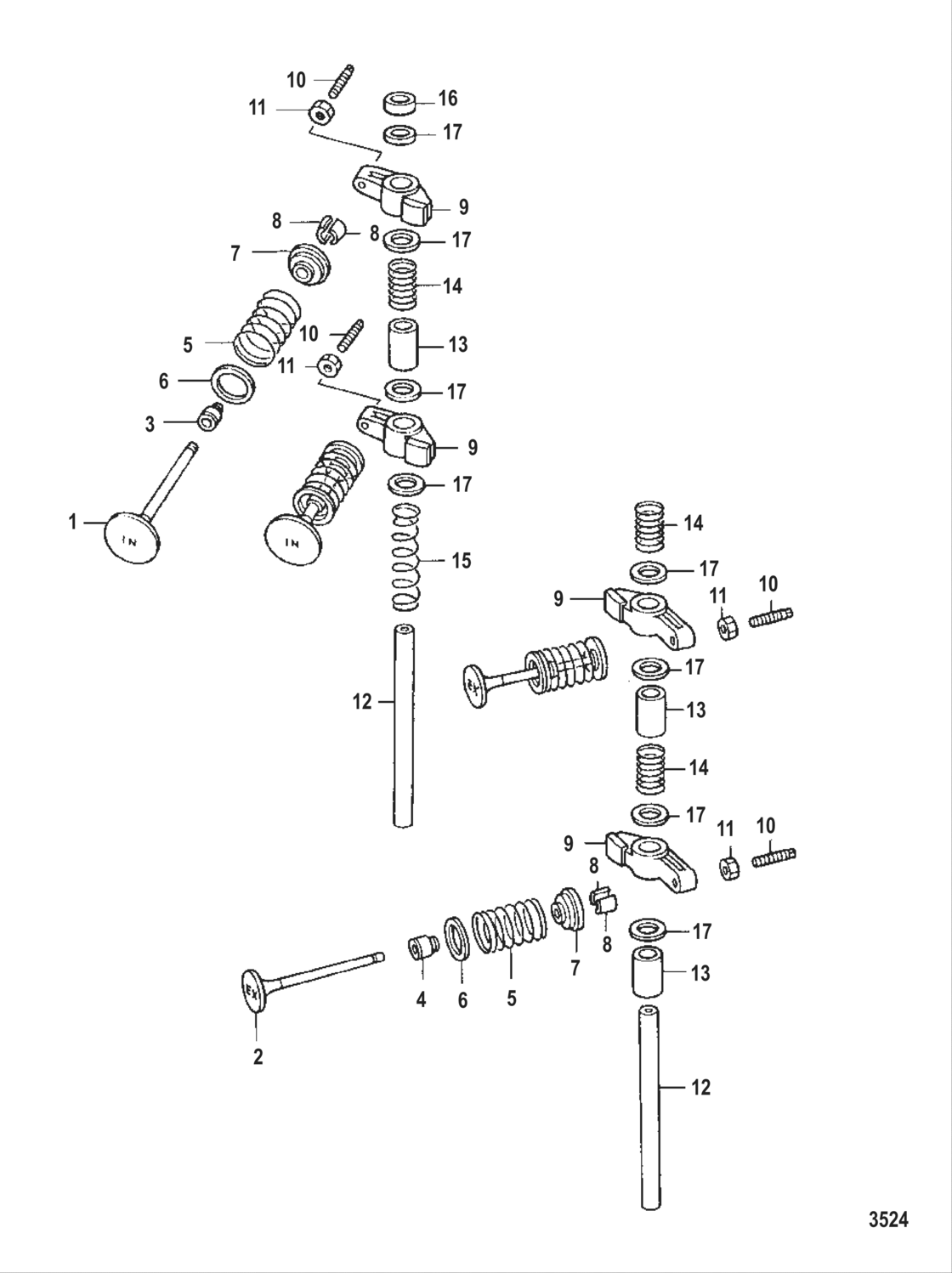

Intake Valve And Exhaust Valve Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R051685 THRU 0R123564
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
850838002
New Genuine Part
|
850838002 |
— | ||
| replacement | |||||
|
1
|
1
850838T02
New Genuine Part
|
850838T02 |
— | ||
|
2
|
2
850839003
Valve, Exhaust
|
850839003 |
— | ||
|
3
|
3
822647001 Seal, intake - black, valve stem |
822647001 |
US $8.40 |
||
|
4
|
4
822647002 Seal, exhaust - green, valve stem |
822647002 |
US $8.08 |
||
|
5
|
5
8035544 Spring |
8035544 |
US $6.38 |
||
| replacement | |||||
|
5
|
5
898101214 Spring, valve |
898101214 |
US $6.38 |
||
|
6
|
6
803598 Seat |
803598 |
US $2.90 |
||
|
7
|
7
803555 Retainer |
803555 |
US $12.29 |
||
|
8
|
8
803556
Keeper, valve
|
803556 |
— | ||
|
9
|
9
850841004
Rocker arm
|
850841004 |
— | ||
|
10
|
10
825046002
Screw
|
825046002 |
— | ||
|
11
|
11
826150001 Nut, adjusting |
826150001 |
US $3.71 |
||
|
12
|
12
850842001 Shaft-rocker arm |
850842001 |
US $31.01 |
||
|
13
|
13
825451001 New Genuine Part |
825451001 |
US $5.33 |
||
|
14
|
14
825452002 Spring |
825452002 |
US $3.71 |
||
|
15
|
15
825453001 Spring |
825453001 |
US $2.90 |
||
|
16
|
16
895118001 Washer |
895118001 |
US $2.54 |
||
|
17
|
17
895118004
Washer
|
895118004 |
— | ||
|
NI
|
NI
895274A05
Powerhead assembly
|
895274A05 |
— | ||
