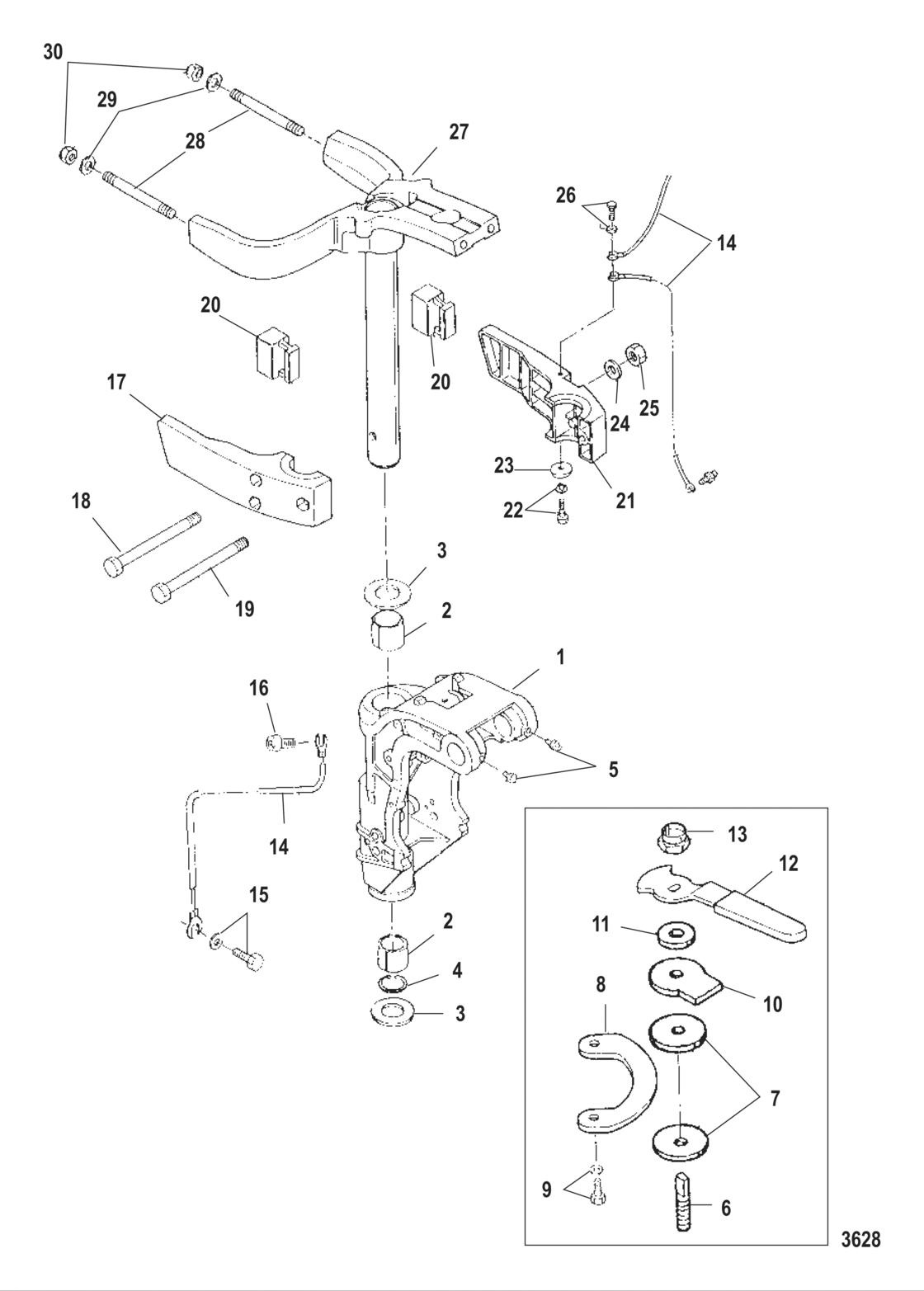

Swivel Bracket Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R051685 THRU 0R123564
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
813029016
Swivel bracket
|
813029016 |
— | ||
|
2
|
2
16336008 Bushing |
16336008 |
US $5.46 |
||
|
3
|
3
803774003 New Genuine Part |
803774003 |
US $5.68 |
||
|
4
|
4
16109003 O-ring |
16109003 |
US $4.18 |
||
|
5
|
5
824969 Fitting, grease |
824969 |
US $7.78 |
||
|
6
|
6
895140002 Bolt |
895140002 |
US $14.78 |
||
|
7
|
7
895173 Disc 2 |
895173 |
US $16.78 |
||
|
8
|
8
895172001 Plate-co-pilot |
895172001 |
US $9.74 |
||
|
9
|
9
82304213 Bolt |
82304213 |
US $1.62 |
||
| replacement | |||||
|
9
|
9
8248324 Screw |
8248324 |
US $2.04 |
||
|
10
|
10
895146002 Washer |
895146002 |
US $12.86 |
||
|
11
|
11
895146001 Washer |
895146001 |
US $3.71 |
||
|
12
|
12
895171001 Handle, co-pilot |
895171001 |
US $37.55 |
||
|
13
|
13
95374001 Nut, nylon |
95374001 |
US $12.29 |
||
|
14
|
14
803779
Ground wire
|
803779 |
— | ||
| replacement | |||||
|
14
|
14
898101089 Wire, ground |
898101089 |
US $12.06 |
||
|
15
|
15
82304234 Bolt |
82304234 |
US $3.60 |
||
| replacement | |||||
|
15
|
15
8230427 Bolt |
8230427 |
US $3.71 |
||
|
16
|
16
810755003
Screw
|
810755003 |
— | ||
| replacement | |||||
|
16
|
16
85554410 Screw |
85554410 |
US $3.47 |
||
|
17
|
17
803776006
Bracket-stbd
|
803776006 |
— | ||
|
18
|
18
823042056 Bolt |
823042056 |
US $6.96 |
||
| replacement | |||||
|
18
|
18
879194310 BOLT |
879194310 |
US $6.96 |
||
|
19
|
19
823042057
Bolt
|
823042057 |
— | ||
| replacement | |||||
|
19
|
19
879194309 BOLT |
879194309 |
US $7.55 |
||
|
20
|
20
803775007 New Genuine Part |
803775007 |
US $23.66 |
||
| replacement | |||||
|
20
|
20
803775006 New Genuine Part |
803775006 |
US $29.53 |
||
|
21
|
21
803776007
Bracket-port
|
803776007 |
— | ||
| replacement | |||||
|
21
|
21
8M0102285
BRACKET-PORT
|
8M0102285 |
— | ||
|
22
|
22
167051 Bolt |
167051 |
US $6.27 |
||
|
23
|
23
823913Q Anode 2 |
823913Q |
US $20.34 |
||
|
24
|
24
853701 Washer |
853701 |
US $4.53 |
||
| replacement | |||||
|
24
|
24
8M0135942 Washer |
8M0135942 |
US $4.53 |
||
|
25
|
25
400213 Nut, stainless steel |
400213 |
US $2.43 |
||
|
26
|
26
823042041 Bolt |
823042041 |
US $3.94 |
||
| replacement | |||||
|
26
|
26
879194260 BOLT |
879194260 |
US $3.94 |
||
|
27
|
27
853770004
New Genuine Part
|
853770004 |
— | ||
|
28
|
28
895166001 Stud bolt |
895166001 |
US $15.78 |
||
|
29
|
29
895141 Washer, stainless steel |
895141 |
US $4.40 |
||
| replacement | |||||
|
29
|
29
879194340 Washer |
879194340 |
US $4.40 |
||
|
30
|
30
85372212 Nut, nylon |
85372212 |
US $7.54 |
||
