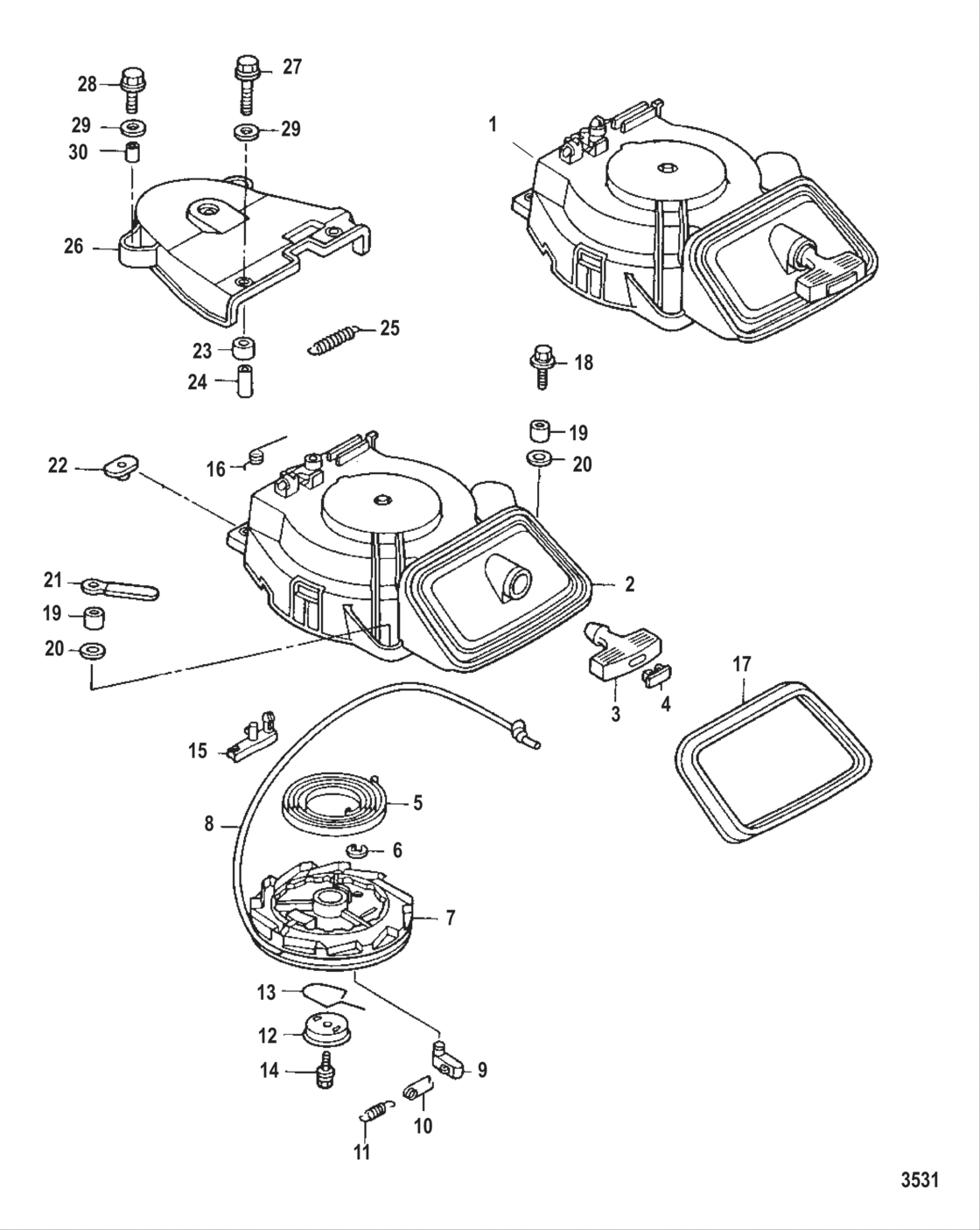

Recoil Starter Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R123565 & Up
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
803716A05
Starter Assembly Recoil
|
803716A05 |
— | ||
| replacement | |||||
|
1
|
1
8M0120627 RECOIL STARTER |
8M0120627 |
US $370.22 |
||
|
2
|
2
803716005
Housing, starter
|
803716005 |
— | ||
|
3
|
3
804029 Handle, starter |
804029 |
US $26.34 |
||
|
4
|
4
853755002 New Genuine Part |
853755002 |
US $15.66 |
||
|
5
|
5
804024008 Spring, starter |
804024008 |
US $39.22 |
||
|
6
|
6
852784001 E ring |
852784001 |
US $3.36 |
||
|
7
|
7
803717002 Reel |
803717002 |
US $49.44 |
||
|
8
|
8
850057003 Rope, starter |
850057003 |
US $24.90 |
||
| replacement | |||||
|
8
|
8
8M0110715 Rope Starter |
8M0110715 |
US $24.90 |
||
|
9
|
9
812635T03 New Genuine Part |
812635T03 |
from US $5.30 |
||
|
10
|
10
803718002
Ratchet guide
|
803718002 |
— | ||
| replacement | |||||
|
10
|
10
898101148 New Genuine Part |
898101148 |
US $9.28 |
||
|
11
|
11
812634004 Spring, return |
812634004 |
US $13.92 |
||
|
12
|
12
812638002 Plate-friction |
812638002 |
US $12.06 |
||
|
13
|
13
852778010
Spring, friction
|
852778010 |
— | ||
|
14
|
14
812637002 Bolt |
812637002 |
US $4.75 |
||
| replacement | |||||
|
14
|
14
8M0126987 BOLT |
8M0126987 |
US $4.75 |
||
|
15
|
15
804031002 Starter lock |
804031002 |
US $10.32 |
||
|
16
|
16
812645008 Spring |
812645008 |
US $6.03 |
||
|
17
|
17
824995005 Seal, rubber |
824995005 |
US $10.56 |
||
|
18
|
18
16705 Bolt |
16705 |
US $3.60 |
||
|
18
|
18
16830 Bolt |
16830 |
US $6.40 |
||
| replacement | |||||
|
18
|
18
8M0124428 Bolt |
8M0124428 |
US $4.40 |
||
|
19
|
19
8035731 Collar |
8035731 |
US $5.33 |
||
|
20
|
20
895118002 Washer |
895118002 |
US $4.86 |
||
| replacement | |||||
|
20
|
20
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
21
|
21
95306 Clamp, lead wire |
95306 |
US $4.64 |
||
| replacement | |||||
|
21
|
21
8M0130961 Clamp |
8M0130961 |
US $4.64 |
||
|
22
|
22
856949001 Nut |
856949001 |
US $5.33 |
||
| replacement | |||||
|
22
|
22
856949002 NUT |
856949002 |
US $5.33 |
||
|
23
|
23
881305006 Grommet, rubber |
881305006 |
US $2.78 |
||
|
24
|
24
895162 Collar, steel |
895162 |
US $3.36 |
||
| replacement | |||||
|
24
|
24
895162001 COLLAR |
895162001 |
US $3.36 |
||
|
25
|
25
812645009 Spring |
812645009 |
US $9.78 |
||
|
26
|
26
895133T01 New Genuine Part |
895133T01 |
US $30.45 |
||
|
27
|
27
16830 Bolt |
16830 |
US $6.40 |
||
| replacement | |||||
|
27
|
27
8M0124428 Bolt |
8M0124428 |
US $4.40 |
||
|
28
|
28
16705 Bolt |
16705 |
US $3.60 |
||
|
29
|
29
895118002 Washer |
895118002 |
US $4.86 |
||
| replacement | |||||
|
29
|
29
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
30
|
30
952868 Collar |
952868 |
US $3.25 |
||
