Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 8M0134479 Driveshaft Housing Assembly Short - Manual	8M0134479	US $316.34
1	1 8M0134480 Driveshaft Housing Assembly Long - All Models	8M0134480	US $330.90
1	1 8M0134481 Driveshaft Housing Assembly Power Tilt - Short	8M0134481	US $321.78
2	2 8M0137339 Fitting Nipple	8M0137339	US $7.14
3	3 8M0111615 Drain Plug Bolt	8M0111615	US $16
4	4 895146 Washer	895146	US $5.47
5	5 16119 Pin, dowel	16119	US $6.72
6	6 8036675 Seal, oil	8036675	US $9.74
7	7 8M0135799 Seal Rubber	8M0135799	US $74.53
8	8 804899002 Grommet, upper	804899002	US $4.06
9	9 898101330 Pin, dowel	898101330	US $4.99
10	10 8M0135712 Tube Water, Short	8M0135712	US $12.70
10	10 8M0135713 Tube Water, Long	8M0135713	US $18.61
10	10 8M0135714 Tube Water, X-Long	8M0135714	US $90.90
11	11 881305004 Grommet	881305004	US $6.50
12	12 8M0135783 Plate Lock	8M0135783	US $3.55
13	13 8230427 Bolt	8230427	US $3.71
14	14 8M0135914 Flush Connector	8M0135914	US $3.04
15	15 8M0137342 Seal Ring	8M0137342	US $1.49
16	16 8M0135786 Cover Exhaust	8M0135786	US $18.51
17	17 8M0135798 Gasket Exhaust, Port	8M0135798	—
18	18 803698002 Bolt	803698002	US $2.32
19	19 8M0135787 Plate	8M0135787	—
20	20 8248324 Screw	8248324	US $2.04
21	21 898101090 Wire, ground DSH to Mount Bracket	898101090	US $12.53
22	22 8M0088179 Bolt	8M0088179	—
23	23 8M0135800 Housing Extension	8M0135800	US $450.56
24	24 8M0137343 Bolt	8M0137343	US $4.50
25	25 811314006 Bushing, driveshaft	811314006	US $210.45
26	26 16121001 New Genuine Part	16121001	US $11.71
27	27 898101330 Pin, dowel	898101330	US $4.99
28	28 8230427 Bolt	8230427	US $3.71

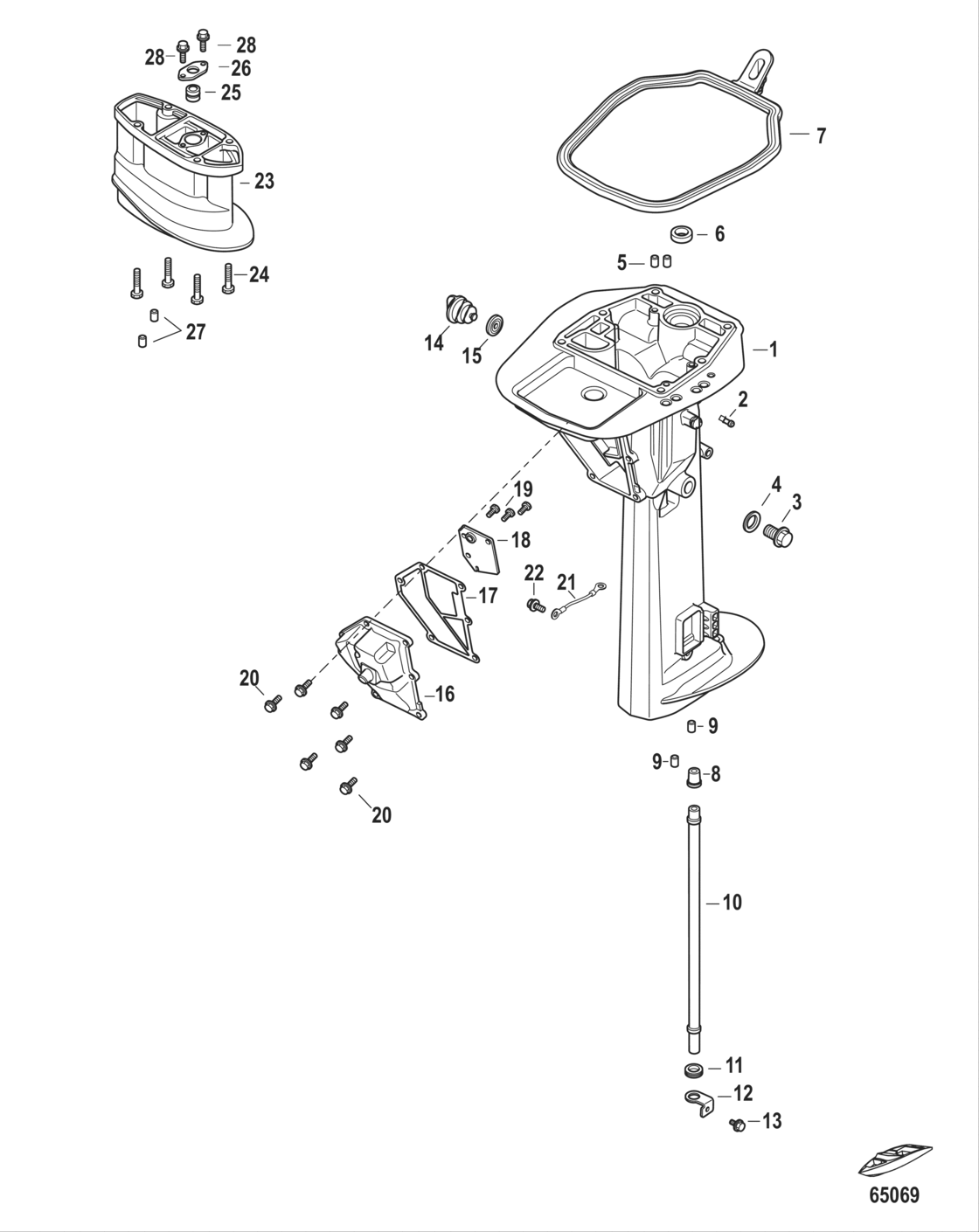

Driveshaft Housing Diagram Mercury-Mercruiser F15 18233188-945659

Driveshaft Housing Diagram Mercury-Mercruiser F15 18233188-945659
