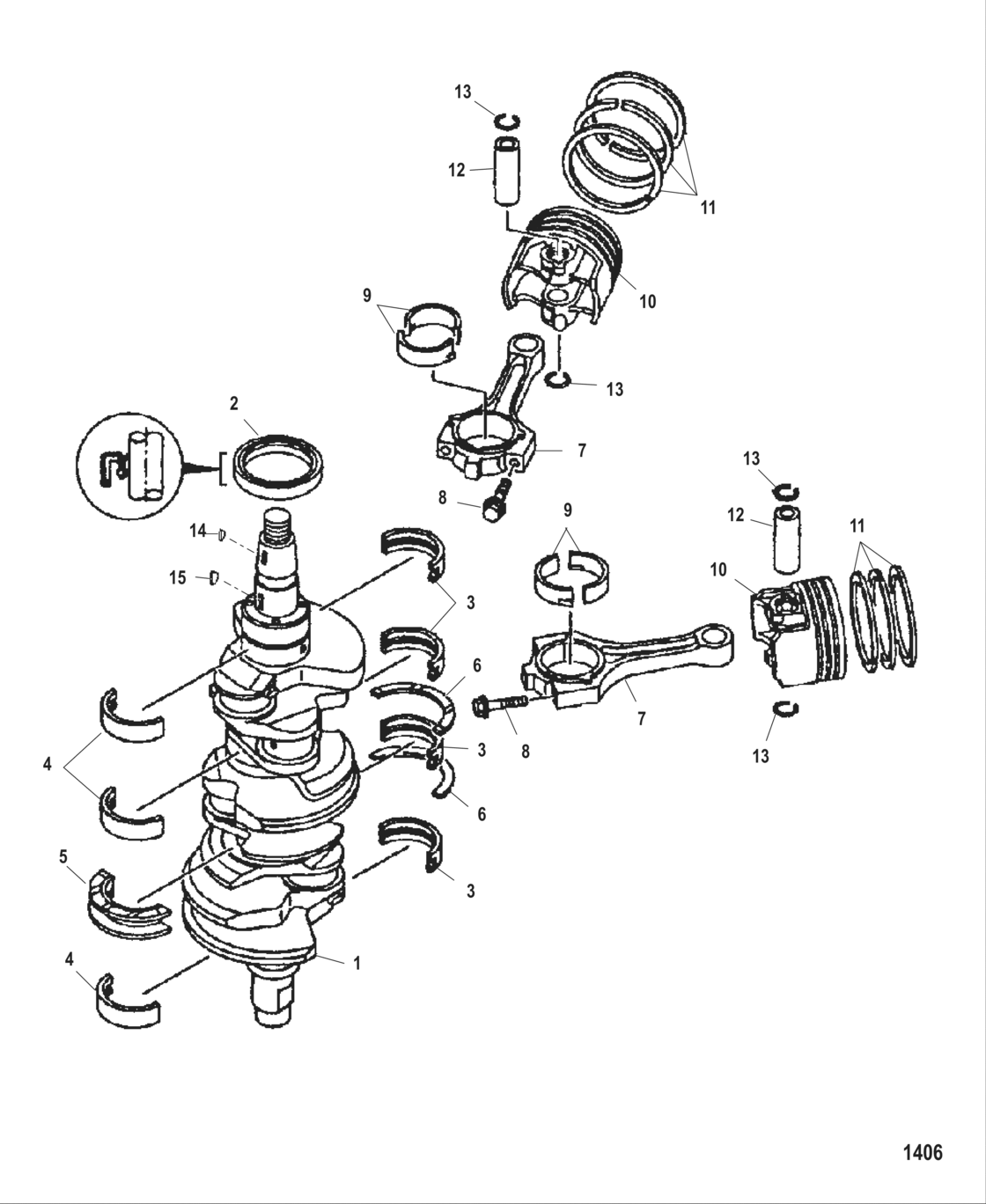

Crankshaft, Pistons And Connecting Rods Diagram Mercury-Mercruiser F225
- Power
- 225
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0T653945 & Up
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
887829T
Crankshaft
|
887829T |
— | ||
|
2
|
2
887830 Oil seal |
887830 |
US $48 |
||
|
3
|
3
887833T Bearing(#1) |
887833T |
US $35.71 |
||
|
3
|
3
887833T10 Bearing(#2) |
887833T10 |
US $33.33 |
||
|
3
|
3
887833T20 Bearing(#3) |
887833T20 |
US $30.90 |
||
|
4
|
4
887834T Bearing(#1) |
887834T |
US $33.04 |
||
|
4
|
4
887834T10 Bearing(#2) |
887834T10 |
US $33.33 |
||
|
4
|
4
887834T20 Bearing(#3) |
887834T20 |
US $42.11 |
||
|
5
|
5
887835T Bearing(#1) |
887835T |
US $59.94 |
||
|
5
|
5
887835T10 Bearing(#2) |
887835T10 |
US $64.34 |
||
|
5
|
5
887835T20 Bearing(#3) |
887835T20 |
US $65.04 |
||
|
6
|
6
887836T Bearing |
887836T |
US $15.42 |
||
|
7
|
7
887837A1 Connecting rod |
887837A1 |
US $168.56 |
||
|
8
|
8
887838 Bolt |
887838 |
US $7.42 |
||
|
9
|
9
887839T Bearing(Yellow) |
887839T |
US $33.01 |
||
|
9
|
9
887839T10 Bearing(Green) |
887839T10 |
US $32.78 |
||
|
9
|
9
887839T20 Bearing(Blue) |
887839T20 |
US $31.22 |
||
|
10
|
10
887840A1
Piston Assembly
(Standard) [1B055870] & Below |
887840A1 |
— | ||
| replacement | |||||
|
10
|
10
887840A02
Piston assembly
(Standard) [1B055870] & Below |
887840A02 |
— | ||
|
10
|
10
887840A02
Piston assembly
(Standard) [1B055871] & Up |
887840A02 |
— | ||
|
10
|
10
887840A03
Piston Assembly
(Oversize) |
887840A03 |
— | ||
|
11
|
11
887841T Ring Set Piston(Standard) |
887841T |
US $80.56 |
||
| replacement | |||||
|
11
|
11
887841T04 RING SET-PISTON(Standard) |
887841T04 |
US $80.56 |
||
|
11
|
11
887841A02 Ring set, piston(Oversize) |
887841A02 |
US $70.72 |
||
|
12
|
12
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
13
|
13
887843 Clip |
887843 |
US $1.62 |
||
|
14
|
14
8261001
Key
|
8261001 |
— | ||
|
15
|
15
804153 Key |
804153 |
US $9.28 |
||
|
NI
|
NI
885225T03
Powerhead
[1B055687] & Below |
885225T03 |
— | ||
| replacement | |||||
|
NI
|
NI
885225T07
PH 225 HP 4S
[1B055687] & Below |
885225T07 |
— | ||
|
NI
|
NI
885225T05
Powerhead
[1B055688] THRU [1B226999] |
885225T05 |
— | ||
| replacement | |||||
|
NI
|
NI
885225T07
PH 225 HP 4S
[1B055688] THRU [1B226999] |
885225T07 |
— | ||
|
NI
|
NI
885225T06
New Genuine Part
[1B227000] & Up |
885225T06 |
— | ||
| replacement | |||||
|
NI
|
NI
885225T07
PH 225 HP 4S
[1B227000] & Up |
885225T07 |
— | ||
|
NI
|
NI
887810A03
Gasket Set Powerhead
[0T807875] & Below |
887810A03 |
— | ||
|
NI
|
NI
887810A04 Gasket Set Powerhead[0T807876] THRU [1B055687] |
887810A04 |
US $1,118.99 |
||
|
NI
|
NI
887810A05 Gasket Set Powerhead[1B055688] & Up |
887810A05 |
US $1,208.30 |
||
