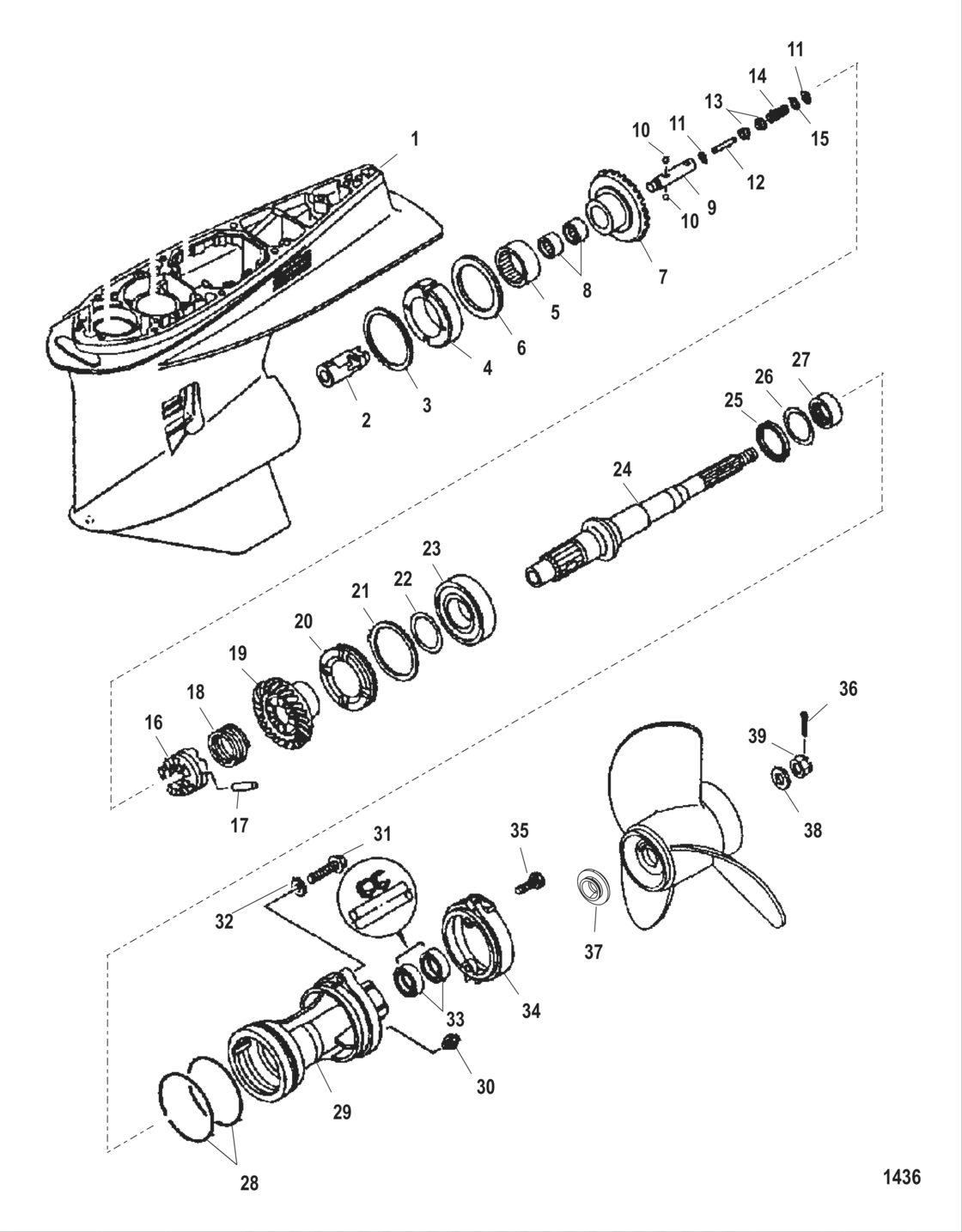

Gear Housing Propeller Shaft - Counter Rotation Diagram Mercury-Mercruiser F225
- Power
- 225
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0T653945 & Up
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
888680T1 Gear Housing Assembly Basic (Basic) |
888680T1 |
US $2,940 |
||
|
2
|
2
8887001 New Genuine Part |
8887001 |
US $204.78 |
||
| replacement | |||||
|
2
|
2
8M0120286 SHIFTER |
8M0120286 |
US $204.78 |
||
|
3
|
3
888713A1 Shim set |
888713A1 |
US $17.39 |
||
|
4
|
4
888716 Spacer |
888716 |
US $375.78 |
||
|
5
|
5
8886816 Bearing |
8886816 |
US $101.10 |
||
|
6
|
6
8886817 Bearing |
8886817 |
US $90.90 |
||
|
7
|
7
888707T1
Gear Reverse
[1B226999] & Below |
888707T1 |
— | ||
|
7
|
7
888707T03 Gear Reverse[1B227000] & Up |
888707T03 |
US $627.01 |
||
|
8
|
8
8886818
Bearing
[1B226999] & Below |
8886818 |
— | ||
|
8
|
8
8M0070189
Bearing
[1B227000] & Up |
8M0070189 |
— | ||
|
9
|
9
888701
Slide-shift
|
888701 |
— | ||
|
10
|
10
82346M
New Genuine Part
|
82346M |
— | ||
|
11
|
11
8813142 Nut |
8813142 |
US $0.69 |
||
|
12
|
12
888704 New Genuine Part |
888704 |
US $4.06 |
||
|
13
|
13
888705 New Genuine Part |
888705 |
US $11.82 |
||
|
14
|
14
8887031 Spring |
8887031 |
US $4.99 |
||
|
15
|
15
8043051 Washer |
8043051 |
US $4.53 |
||
|
16
|
16
888702 Clutch |
888702 |
US $304.90 |
||
|
17
|
17
8886331
Pin
|
8886331 |
— | ||
|
18
|
18
888703 Spring |
888703 |
US $7.04 |
||
|
19
|
19
888698T1 Gear Forward[1B226999] & Below |
888698T1 |
US $500.34 |
||
|
19
|
19
888698T03 Gear Forward[1B227000] & Up |
888698T03 |
US $629.10 |
||
|
20
|
20
889309 Nut |
889309 |
US $109.57 |
||
|
21
|
21
888717 Tab washer |
888717 |
US $4.64 |
||
|
22
|
22
888767A1 Shim set |
888767A1 |
US $142.45 |
||
|
23
|
23
8886819
Bearing
|
8886819 |
— | ||
|
24
|
24
8886991
Propeller Shaft
|
8886991 |
— | ||
|
25
|
25
88868110 Bearing |
88868110 |
US $57.28 |
||
|
26
|
26
888766A1 Shim set |
888766A1 |
US $25.39 |
||
|
27
|
27
8886815
Bearing
|
8886815 |
— | ||
|
28
|
28
8814373 O-ring |
8814373 |
US $8.22 |
||
|
29
|
29
888706T1
New Genuine Part
|
888706T1 |
— | ||
|
30
|
30
8883741
Fitting, grease
|
8883741 |
— | ||
|
31
|
31
8813111 Bolt |
8813111 |
US $9.04 |
||
| replacement | |||||
|
31
|
31
8M0086362 BOLT @2 |
8M0086362 |
US $9.04 |
||
|
32
|
32
8043053
Washer
|
8043053 |
— | ||
|
33
|
33
8886941 Oil seal |
8886941 |
US $10.90 |
||
|
34
|
34
888708
Cap
|
888708 |
— | ||
|
35
|
35
881816
Bolt
|
881816 |
— | ||
|
36
|
36
887974 Cotter pin |
887974 |
US $2.90 |
||
|
37
|
37
8539481 Thrust washer |
8539481 |
US $42.82 |
||
|
38
|
38
887972 Washer |
887972 |
US $3.14 |
||
|
39
|
39
887973 Castle nut |
887973 |
US $18.11 |
||
| replacement | |||||
|
39
|
39
859939 New Genuine Part |
859939 |
US $18.11 |
||
|
NI
|
NI
888680T4 Gear Housing Assembly Complete(X-Long) [1B226999] & Below |
888680T4 |
US $9,554.29 |
||
| replacement | |||||
|
NI
|
NI
888680T08 Gear Housing Assembly Complete(X-Long) [1B226999] & Below |
888680T08 |
US $9,554.29 |
||
|
NI
|
NI
888680T08 Gear Housing Assembly Complete(X-Long) [1B227000] & Up |
888680T08 |
US $9,554.29 |
||
|
NI
|
NI
888680T5
Gear Housing Assembly Complete
(XX-Long) [1B226999] & Below |
888680T5 |
— | ||
| replacement | |||||
|
NI
|
NI
888680T09
Gear Housing Assembly Complete
(XX-Long) [1B226999] & Below |
888680T09 |
— | ||
|
NI
|
NI
888680T09
Gear Housing Assembly Complete
(XX-Long) [1B227000] & Up |
888680T09 |
— | ||
|
NI
|
NI
888658A03
Gasket Set Lower Unit
[0T807875] & Below |
888658A03 |
— | ||
|
NI
|
NI
888658A04
Gasket Set Lower Unit
[0T807876] & Up |
888658A04 |
— | ||
