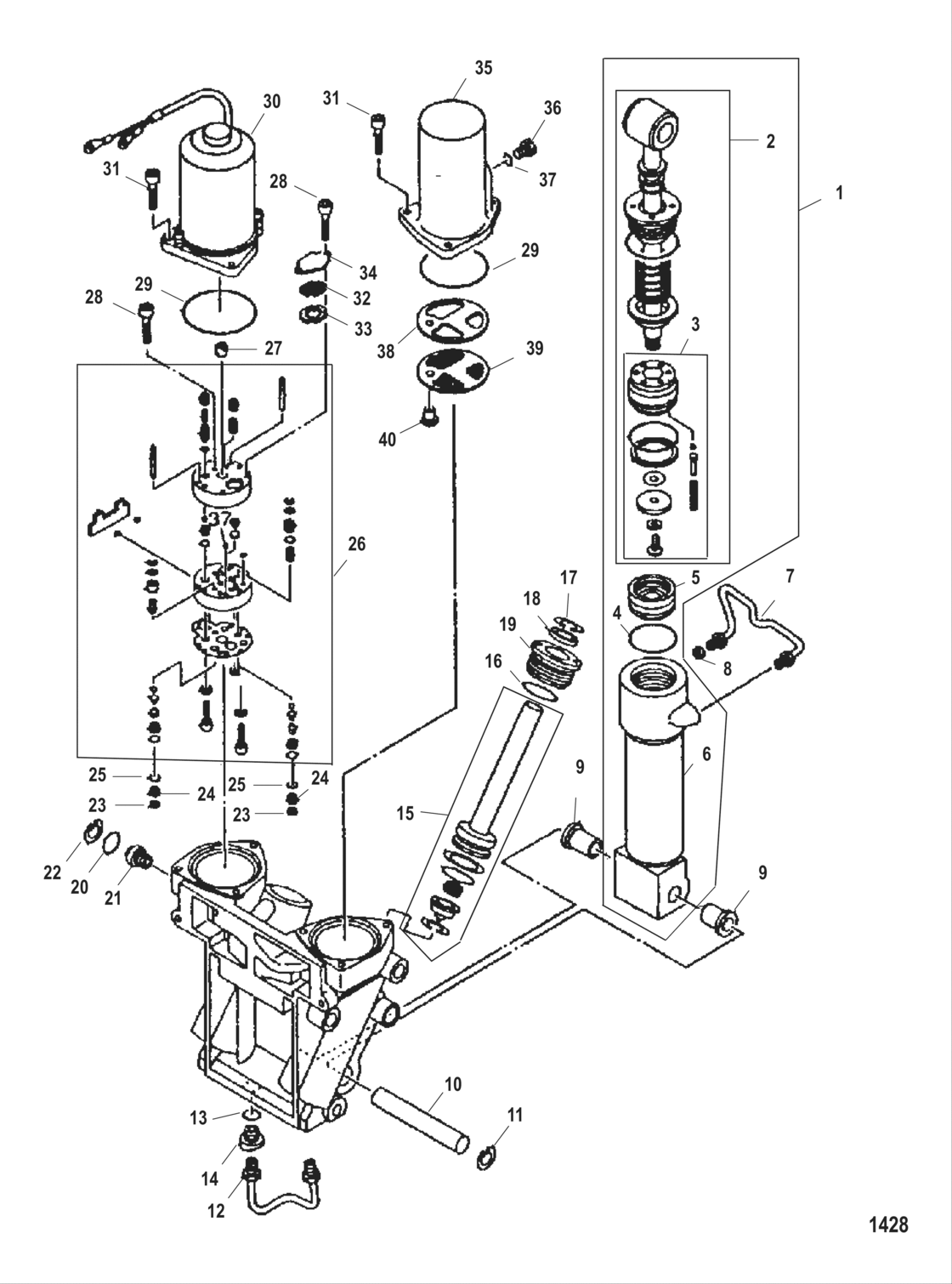

Power Trim Components Diagram Mercury-Mercruiser F225
- Power
- 225
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0T653945 & Up
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
888626T1 New Genuine Part |
888626T1 |
US $1,136.40 |
||
|
2
|
2
888627T1
Tilt piston assy
|
888627T1 |
— | ||
| replacement | |||||
|
2
|
2
888627T02
Tilt piston assy
|
888627T02 |
— | ||
|
3
|
3
888627 Tilt piston assy |
888627 |
US $264.34 |
||
| replacement | |||||
|
3
|
3
8M0121255 TILT PISTON ASSY |
8M0121255 |
US $264.34 |
||
|
4
|
4
8883542 O-ring |
8883542 |
US $4.29 |
||
|
5
|
5
888628
New Genuine Part
|
888628 |
— | ||
|
6
|
6
888629T New Genuine Part |
888629T |
US $445.33 |
||
|
7
|
7
888630 Tube |
888630 |
US $165.33 |
||
|
8
|
8
888631
Plug
|
888631 |
— | ||
|
9
|
9
85281411 Bushing |
85281411 |
US $8.22 |
||
|
10
|
10
888633
Pin
|
888633 |
— | ||
|
11
|
11
888634
Snap ring
|
888634 |
— | ||
|
12
|
12
8886301 Tube |
8886301 |
US $100 |
||
| replacement | |||||
|
12
|
12
8M0103088
TUBE
|
8M0103088 |
— | ||
|
13
|
13
8883543
O-ring
|
8883543 |
— | ||
|
14
|
14
888632
Bolt
|
888632 |
— | ||
|
15
|
15
888644T1 Trim piston assy |
888644T1 |
US $541.10 |
||
|
16
|
16
8883542 O-ring |
8883542 |
US $4.29 |
||
|
17
|
17
888642 Snap ring |
888642 |
US $0.93 |
||
|
18
|
18
888643 Seal |
888643 |
US $18.54 |
||
|
19
|
19
8886181 Screw |
8886181 |
US $74.45 |
||
| replacement | |||||
|
19
|
19
8M0091467 SCREW @2 |
8M0091467 |
US $74.45 |
||
|
20
|
20
8883544
O-ring
|
8883544 |
— | ||
|
21
|
21
8886321
Screw
|
8886321 |
— | ||
|
22
|
22
8886341
Snap ring
|
8886341 |
— | ||
|
23
|
23
888635
New Genuine Part
|
888635 |
— | ||
|
24
|
24
888636
New Genuine Part
|
888636 |
— | ||
|
25
|
25
8883545
O-ring
|
8883545 |
— | ||
|
26
|
26
888637T1 Gear pump assy |
888637T1 |
US $323.31 |
||
|
27
|
27
888640
New Genuine Part
|
888640 |
— | ||
|
28
|
28
888639
Bolt
|
888639 |
— | ||
|
29
|
29
8883531 O-ring |
8883531 |
US $6.72 |
||
|
30
|
30
888645T1 Motor-trim |
888645T1 |
US $1,278.38 |
||
| replacement | |||||
|
30
|
30
888645T02 MOTOR-TRIM |
888645T02 |
US $1,278.38 |
||
|
31
|
31
8886322
Bolt
|
8886322 |
— | ||
|
32
|
32
8886351
Filter
|
8886351 |
— | ||
|
33
|
33
8886342
Ring
|
8886342 |
— | ||
|
34
|
34
888638
New Genuine Part
|
888638 |
— | ||
|
35
|
35
888641T Housing-reservoir |
888641T |
US $256.78 |
||
|
36
|
36
8886312 Reservoir plug |
8886312 |
US $13.57 |
||
|
37
|
37
8144961 O-ring |
8144961 |
US $4.18 |
||
|
38
|
38
8886021
Spacer
|
8886021 |
— | ||
|
39
|
39
8886352
Filter
|
8886352 |
— | ||
|
40
|
40
8886311
Plug
|
8886311 |
— | ||
|
NI
|
NI
888626T2
Power trim compl
|
888626T2 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0119206
POWER TRIM
|
8M0119206 |
— | ||
|
NI
|
NI
888353A1
O-Ring Kit Power Trim
|
888353A1 |
— | ||
