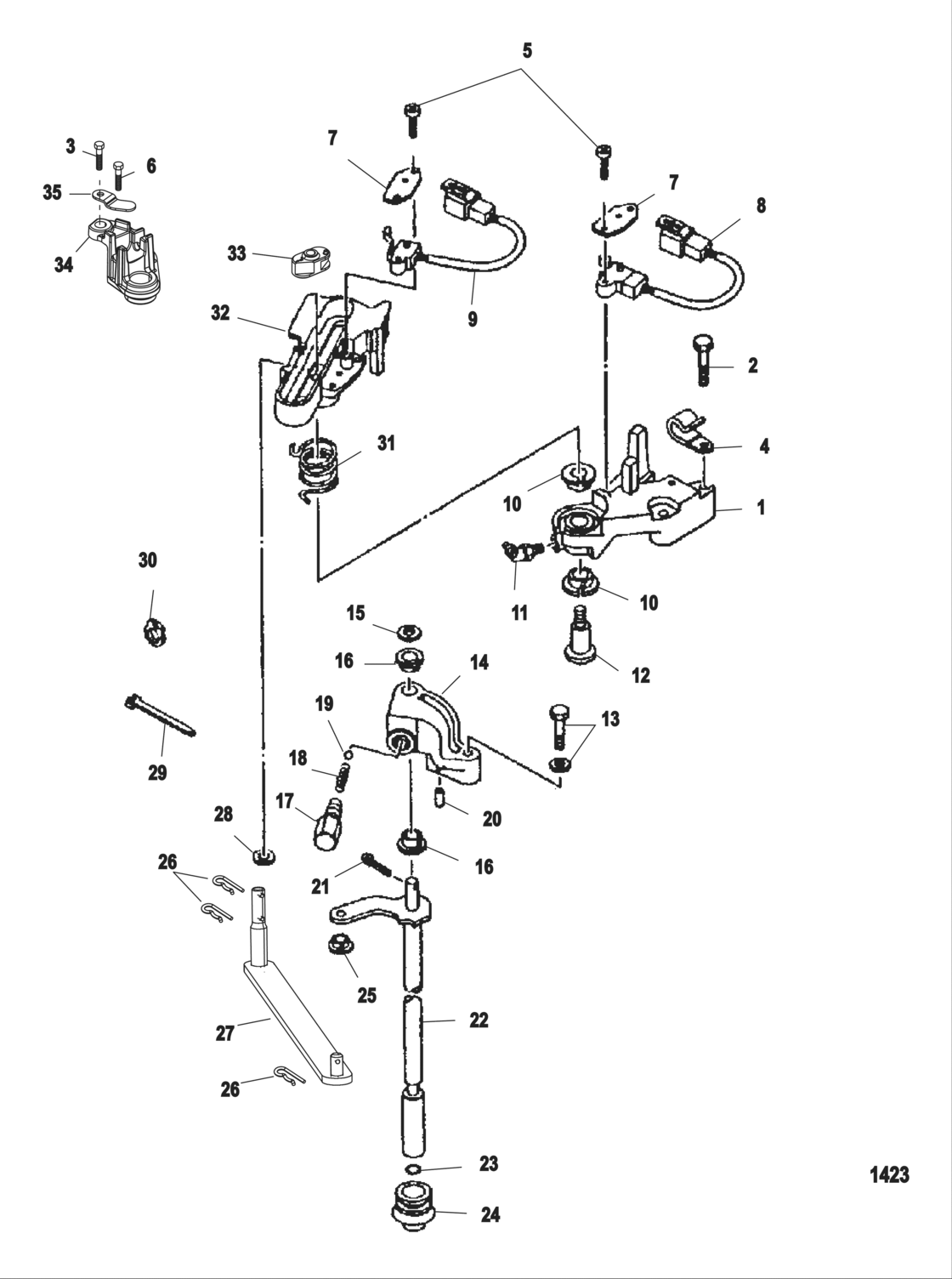

Shift Linkage Diagram Mercury-Mercruiser F225
- Power
- 225
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0T653945 & Up
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
888373
New Genuine Part
|
888373 |
— | ||
|
2
|
2
850879
Bolt
|
850879 |
— | ||
|
3
|
3
888346
Bolt
|
888346 |
— | ||
|
4
|
4
83577M
Clamp
|
83577M |
— | ||
|
5
|
5
888379
Screw
|
888379 |
— | ||
|
6
|
6
8883461
Bolt
|
8883461 |
— | ||
|
7
|
7
888378
New Genuine Part
|
888378 |
— | ||
|
8
|
8
888377A2 Shift Switch Assembly |
888377A2 |
US $119.10 |
||
|
9
|
9
888377A1 Neutral switch assembly |
888377A1 |
US $57.44 |
||
|
10
|
10
81949M Bushing |
81949M |
US $11.47 |
||
|
11
|
11
888374
Fitting, grease
|
888374 |
— | ||
|
12
|
12
888375
Bolt
|
888375 |
— | ||
|
13
|
13
8524742
Bolt
|
8524742 |
— | ||
|
14
|
14
888382
New Genuine Part
|
888382 |
— | ||
|
15
|
15
8556821
Washer
|
8556821 |
— | ||
|
16
|
16
8879001
Bushing
|
8879001 |
— | ||
|
17
|
17
80635M
Retainer
|
80635M |
— | ||
|
18
|
18
82081M
Spring
|
82081M |
— | ||
|
19
|
19
92659M
New Genuine Part
|
92659M |
— | ||
|
20
|
20
82145M
Pin
|
82145M |
— | ||
|
21
|
21
82128M
Pin
|
82128M |
— | ||
|
22
|
22
888186A1 Handle-xl(XL) |
888186A1 |
US $112.16 |
||
|
22
|
22
888186A2 Handle-xxl(XXL) |
888186A2 |
US $133.07 |
||
|
23
|
23
8144961 O-ring |
8144961 |
US $4.18 |
||
|
24
|
24
8095501
Grommet
|
8095501 |
— | ||
|
25
|
25
888381
Bushing
|
888381 |
— | ||
|
26
|
26
82053M Hair pin |
82053M |
US $2.21 |
||
|
27
|
27
888183A1
New Genuine Part
|
888183A1 |
— | ||
|
28
|
28
8149771
Washer
|
8149771 |
— | ||
|
29
|
29
879650 Clamp |
879650 |
US $0.35 |
||
| replacement | |||||
|
29
|
29
56762 New Genuine Part |
56762 |
US $0.35 |
||
|
30
|
30
8556861
Clamp
|
8556861 |
— | ||
|
31
|
31
888376
Spring
|
888376 |
— | ||
|
32
|
32
8883731
New Genuine Part
|
8883731 |
— | ||
|
33
|
33
888182
Bushing
|
888182 |
— | ||
|
34
|
34
887956
New Genuine Part
[1B055687] & Below |
887956 |
— | ||
| replacement | |||||
|
34
|
34
887956001
New Genuine Part
[1B055687] & Below |
887956001 |
— | ||
|
34
|
34
887956001
New Genuine Part
[1B055688] & Up |
887956001 |
— | ||
|
35
|
35
887958 New Genuine Part |
887958 |
US $19.71 |
||
