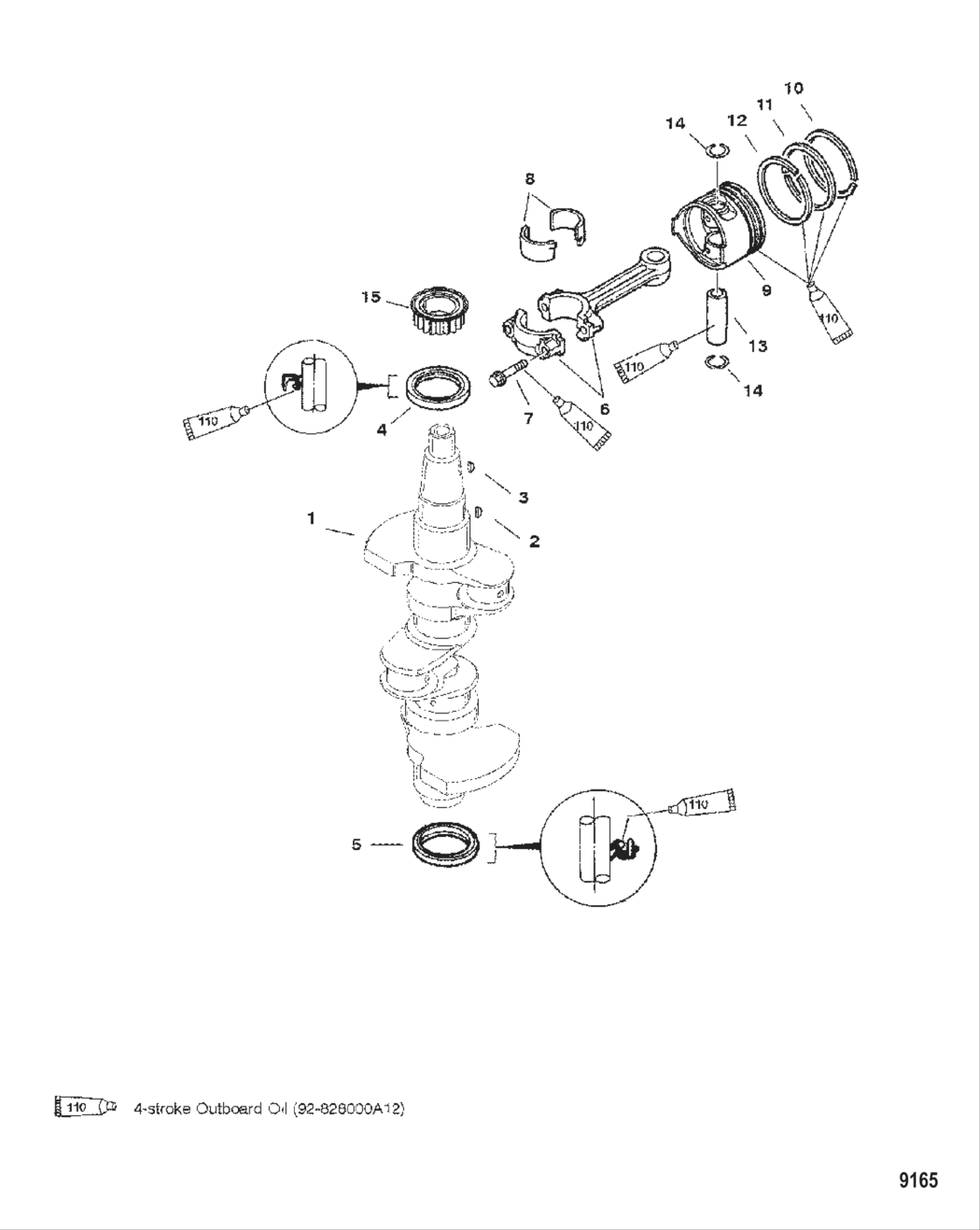

Crankshaft, Piston And Connecting Rods Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0G760300 THRU 0T408999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
834774T1 Crankshaft assembly |
834774T1 |
US $961.01 |
||
|
1
|
1
834774T2 Crankshaft(BIGFOOT) |
834774T2 |
US $342.11 |
||
|
2
|
2
18856M Key |
18856M |
US $7.78 |
||
| replacement | |||||
|
2
|
2
893761 Key |
893761 |
US $7.78 |
||
|
3
|
3
91800 Key, drive |
91800 |
US $3.54 |
||
|
4
|
4
825027 Seal |
825027 |
US $53.31 |
||
| replacements | |||||
|
4
|
4
893949 SEAL-OIL |
893949 |
US $51.31 |
||
|
4
|
4
8M0151047 Seal oil |
8M0151047 |
from US $53.31 |
||
|
5
|
5
832013 Seal |
832013 |
US $17.54 |
||
| replacements | |||||
|
5
|
5
893948 SealСальник |
893948 |
US $16.88 |
||
|
5
|
5
8M0151048 Seal |
8M0151048 |
US $17.32 |
||
|
6
|
6
856065T Connecting rod |
856065T |
US $281.55 |
||
| replacement | |||||
|
6
|
6
893530T01 Connecting Rod Assembly |
893530T01 |
US $372.64 |
||
|
7
|
7
825019 Bolt |
825019 |
US $6.03 |
||
| replacement | |||||
|
7
|
7
8M0049884 Bolt |
8M0049884 |
US $6.03 |
||
|
8
|
8
825021 Bearing |
825021 |
US $16.56 |
||
| replacement | |||||
|
8
|
8
893630 Bearing, brown |
893630 |
US $16.56 |
||
|
8
|
8
8250211 Bearing |
8250211 |
US $18.16 |
||
| replacement | |||||
|
8
|
8
893630001 Bearing, black |
893630001 |
US $18.16 |
||
|
8
|
8
8250212 Bearing |
8250212 |
US $14.03 |
||
| replacement | |||||
|
8
|
8
893630002
Bearing, blue
|
893630002 |
— | ||
|
9
|
9
856064A1 Piston assembly std.(STANDARD) |
856064A1 |
US $146.88 |
||
| replacement | |||||
|
9
|
9
893524T08 Piston kit, std.(STANDARD) |
893524T08 |
US $146.88 |
||
|
9
|
9
8560642
Piston
(.25 O/S)(BARE PISTON) |
8560642 |
— | ||
| replacement | |||||
|
9
|
9
893524T01
Piston assembly
(.25 O/S)(BARE PISTON) |
893524T01 |
— | ||
|
9
|
9
8560643
Piston
(.50 O/S)(BARE PISTON) |
8560643 |
— | ||
| replacement | |||||
|
9
|
9
893524T02
Piston Assembly
(.50 O/S)(BARE PISTON) |
893524T02 |
— | ||
|
10
|
10
833099A1 Ring set, piston(STANDARD) |
833099A1 |
US $36.84 |
||
| replacement | |||||
|
10
|
10
893525A01 Ring set, piston Std.(STANDARD) |
893525A01 |
US $35.87 |
||
|
10
|
10
833100T2 Ring, piston, top(.25MM O/S) |
833100T2 |
US $21.33 |
||
| replacement | |||||
|
10
|
10
893525A02 Ring set, piston(.25MM O/S) |
893525A02 |
US $25.82 |
||
|
10
|
10
833099T3 Ring Piston (Top)(.50MM O/S) |
833099T3 |
US $20.99 |
||
| replacement | |||||
|
10
|
10
893525A03 Ring Set Ring(.50MM O/S) |
893525A03 |
US $23.36 |
||
|
11
|
11
NSS
Not Sold Separate O-Ring
(STANDARD) |
NSS |
— | ||
|
11
|
11
833100T3 Ring Piston Top(.50MM O/S) |
833100T3 |
US $23.36 |
||
| replacement | |||||
|
11
|
11
893525A03 Ring Set Ring(.50MM O/S) |
893525A03 |
US $23.36 |
||
|
12
|
12
8331011
Ring, oil
|
8331011 |
— | ||
| replacement | |||||
|
12
|
12
893950
New Genuine Part
|
893950 |
— | ||
|
13
|
13
825016 Pin, piston |
825016 |
US $19.94 |
||
| replacement | |||||
|
13
|
13
893863 Pin, piston |
893863 |
US $19.43 |
||
|
14
|
14
825017 Retainer |
825017 |
US $2.94 |
||
| replacement | |||||
|
14
|
14
893529 Retainer, piston pin |
893529 |
US $2.87 |
||
|
15
|
15
833102T Pulley-drive |
833102T |
from US $47.29 |
||
|
NI
|
NI
825231A99 Gasket Set Engine |
825231A99 |
US $305.01 |
||
|
NI
|
NI
803017T99
Powerhead Assembly
|
803017T99 |
— | ||
| replacement | |||||
|
NI
|
NI
803017T01
Powerhead assembly
|
803017T01 |
— | ||
|
NI
|
NI
803016T99 Powerhead Assembly(BIGFOOT) |
803016T99 |
US $3,680 |
||
| replacement | |||||
|
NI
|
NI
803016T01 Powerhead assembly(BIGFOOT) |
803016T01 |
US $3,680 |
||
