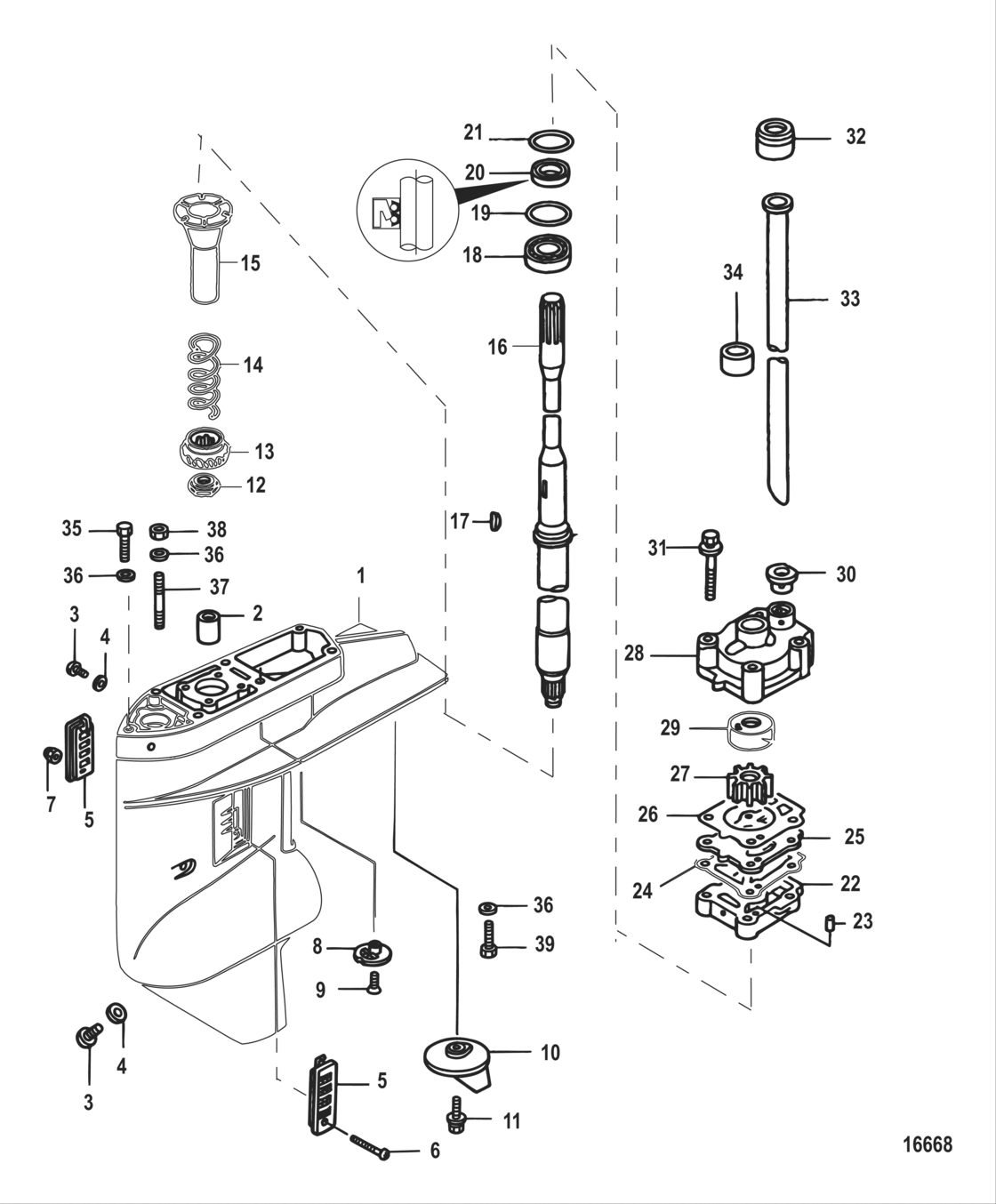

Gear Housing Driveshaft-1.92:1 Gear Ratio Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
825132T04 Gear Housing Assembly Basic |
825132T04 |
US $804.05 |
||
| replacement | |||||
|
1
|
1
8M0057242 GC BASIC 25/30 4S |
8M0057242 |
US $804.05 |
||
|
2
|
2
8130484 Bearing, needle |
8130484 |
US $69.44 |
||
| replacement | |||||
|
2
|
2
813048006 Bearing |
813048006 |
US $80.10 |
||
|
3
|
3
953683 Oil plug |
953683 |
US $9.28 |
||
|
4
|
4
95220
Gasket, oil plug
|
95220 |
— | ||
|
5
|
5
853763 Strainer set |
853763 |
US $34.39 |
||
|
6
|
6
898101165 Screw |
898101165 |
US $3.82 |
||
| replacement | |||||
|
6
|
6
17635 Screw |
17635 |
US $3.82 |
||
|
7
|
7
85372210 Nut |
85372210 |
US $7.78 |
||
|
8
|
8
16133 STRAINER |
16133 |
US $21.10 |
||
|
9
|
9
823042051 Screw |
823042051 |
US $2.78 |
||
| replacement | |||||
|
9
|
9
898101959 Screw |
898101959 |
US $2.78 |
||
|
10
|
10
853762 Trim Tab Anode |
853762 |
US $34.37 |
||
|
11
|
11
167051 Bolt |
167051 |
US $6.27 |
||
|
12
|
12
85372211 Nut |
85372211 |
US $27.40 |
||
|
13
|
13
16138T01 GEAR, Pinion 12T |
16138T01 |
US $207.96 |
||
|
14
|
14
8126454
Spring
|
8126454 |
— | ||
|
15
|
15
853765T GUIDE |
853765T |
US $11.85 |
||
|
16
|
16
803738T06 DRIVESHAFT ShortShort |
803738T06 |
US $545.62 |
||
|
16
|
16
16136T02 DriveshaftLong |
16136T02 |
US $878.56 |
||
|
17
|
17
161551 KEY |
161551 |
US $17 |
||
|
18
|
18
16128T02 Bearing |
16128T02 |
US $94.95 |
||
|
19
|
19
813276001 Shim |
813276001 |
US $8.22 |
||
|
19
|
19
813276015 Shim |
813276015 |
US $10.66 |
||
|
19
|
19
813276003 Shim |
813276003 |
US $9.25 |
||
|
19
|
19
813276005 Shim |
813276005 |
US $8.35 |
||
|
20
|
20
161622 Seal, oil |
161622 |
US $24.70 |
||
|
21
|
21
8537096 O-ring |
8537096 |
US $5.83 |
||
|
22
|
22
8260531 Housing, water pump |
8260531 |
US $54.67 |
||
|
23
|
23
952188 Pin, dowel |
952188 |
US $14.13 |
||
|
24
|
24
161602 Gasket |
161602 |
US $7.65 |
||
|
25
|
25
803753002 Guide plate w/p |
803753002 |
US $15.64 |
||
|
26
|
26
16158010 Gasket |
16158010 |
US $15.18 |
||
|
27
|
27
161541 Impeller |
161541 |
US $47.58 |
||
| replacement | |||||
|
27
|
27
8M0214912 Impeller |
8M0214912 |
US $47.58 |
||
|
28
|
28
803750T05 Housing Water Pump |
803750T05 |
US $69.22 |
||
|
29
|
29
803751002 Liner-pump hsg. |
803751002 |
US $31.01 |
||
|
30
|
30
161681 Seal |
161681 |
US $9.15 |
||
|
31
|
31
823042046 Bolt |
823042046 |
US $5.46 |
||
| replacement | |||||
|
31
|
31
879194269 Bolt |
879194269 |
US $5.46 |
||
|
32
|
32
804903001 Grommet, upper |
804903001 |
US $5.95 |
||
|
33
|
33
803755006 Tube, waterShort |
803755006 |
US $52.90 |
||
|
33
|
33
803755007 Tube, waterLong |
803755007 |
US $51.01 |
||
|
34
|
34
851848008
Hose, rubber
Long |
851848008 |
— | ||
| replacement | |||||
|
34
|
34
8M0057120
HOSE
Long |
8M0057120 |
— | ||
|
35
|
35
803726001 BoltLong |
803726001 |
US $10.43 |
||
| replacement | |||||
|
35
|
35
879194308 BOLTLong |
879194308 |
US $10.43 |
||
|
36
|
36
895106001 Washer |
895106001 |
US $3.14 |
||
| replacement | |||||
|
36
|
36
16192 Washer |
16192 |
US $3.14 |
||
|
37
|
37
823042049 Bolt, studShort |
823042049 |
US $6.96 |
||
| replacement | |||||
|
37
|
37
879194302 STUD BOLTShort |
879194302 |
US $6.96 |
||
|
38
|
38
853722023 NutShort |
853722023 |
US $3.01 |
||
| replacement | |||||
|
38
|
38
879194337 NutShort |
879194337 |
US $3.01 |
||
|
39
|
39
16695006 Bolt |
16695006 |
US $8.58 |
||
| replacement | |||||
|
39
|
39
879194307 BOLT |
879194307 |
US $8.58 |
||
|
NI
|
NI
825132T22 Gear Housing Assembly CompleteShort |
825132T22 |
US $2,680.27 |
||
| replacement | |||||
|
NI
|
NI
8M0070899 GC 25/30 4S SHShort |
8M0070899 |
US $2,389.87 |
||
|
NI
|
NI
825132T23 Gear Housing Assembly CompleteLong |
825132T23 |
US $2,697.14 |
||
| replacement | |||||
|
NI
|
NI
8M0070900 GC 25/30 4S LGLong |
8M0070900 |
US $2,389.87 |
||
|
NI
|
NI
804908A01
Gasket Set Gearcase
|
804908A01 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0089636 Gasket Set Gearcase |
8M0089636 |
US $62.34 |
||
|
NI
|
NI
853792A07 Repair kit w/p |
853792A07 |
US $92 |
||
