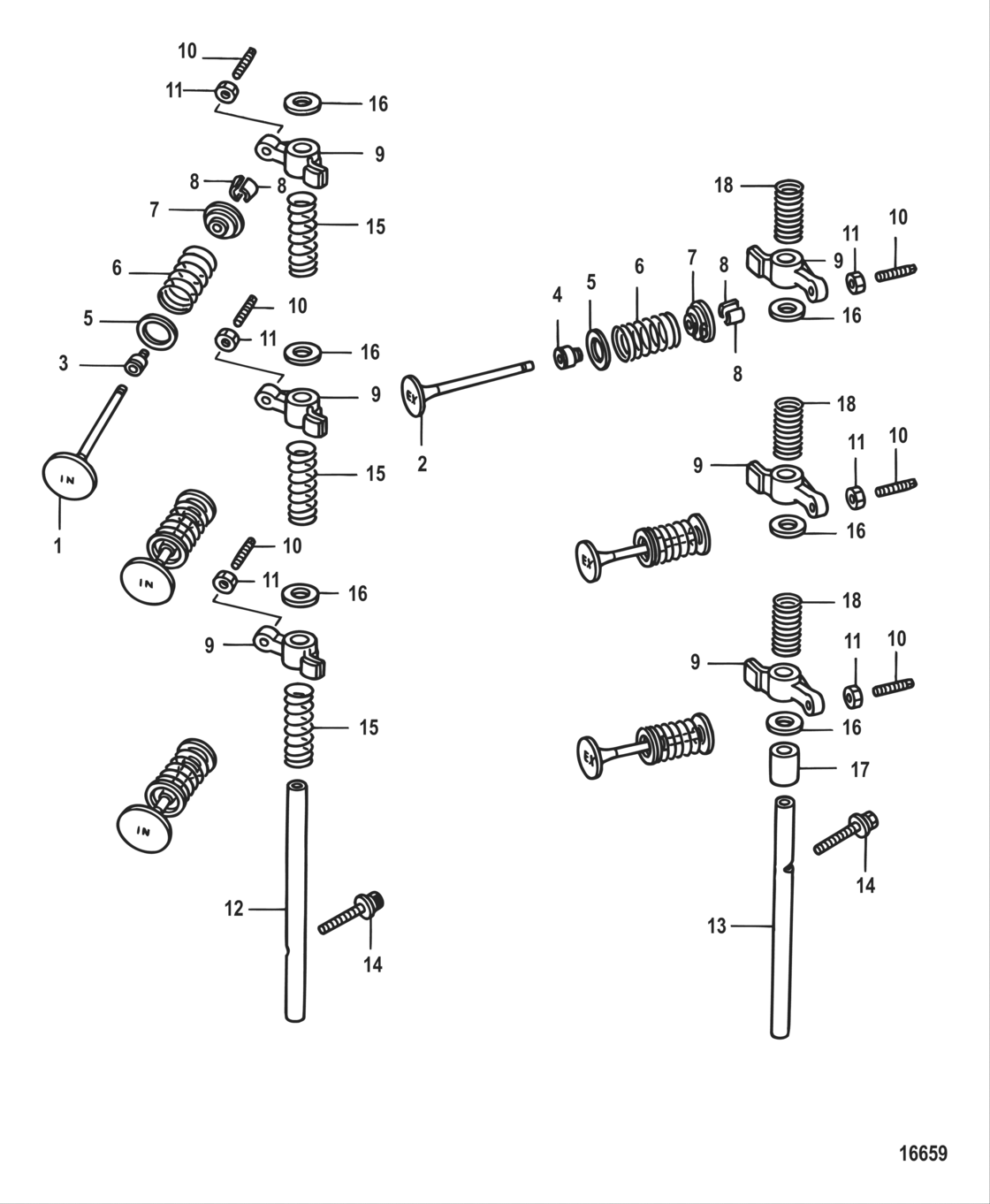

Intake/exhaust Valves Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
850838T02
New Genuine Part
[0R557617] & Below |
850838T02 |
— | ||
|
1
|
1
8M0079161 Kit Intake ValveIncludes retainer and keeper [0R557618] & Up |
8M0079161 |
from US $26.79 |
||
|
2
|
2
850839T02
New Genuine Part
[0R557617] & Below |
850839T02 |
— | ||
|
2
|
2
8M0079162 Kit Exhaust ValveIncludes retainer and keeper [0R557618] & Up |
8M0079162 |
from US $38.22 |
||
|
3
|
3
822647001 Seal, intake - black, valve stem |
822647001 |
US $8.40 |
||
|
4
|
4
822647002 Seal, exhaust - green, valve stem |
822647002 |
US $8.08 |
||
|
5
|
5
803598 Seat |
803598 |
US $2.90 |
||
|
6
|
6
898101214 Spring, valve |
898101214 |
US $6.38 |
||
|
7
|
7
803555 Retainer[0R557617] & Below |
803555 |
US $12.29 |
||
|
8
|
8
803556
Keeper, valve
[0R557617] & Below |
803556 |
— | ||
|
9
|
9
898101153
New Genuine Part
|
898101153 |
— | ||
|
10
|
10
825046001 Screw, adjusting |
825046001 |
US $6.50 |
||
|
11
|
11
826150001 Nut, adjusting |
826150001 |
US $3.71 |
||
|
12
|
12
898101155 Shaft rockerarm |
898101155 |
US $7.42 |
||
|
13
|
13
898101154 Shaft-rockerarm |
898101154 |
US $8.58 |
||
|
14
|
14
850879001 Bolt |
850879001 |
US $3.14 |
||
|
15
|
15
825453001 Spring |
825453001 |
US $2.90 |
||
|
16
|
16
895118001 Washer |
895118001 |
US $2.54 |
||
|
17
|
17
815093002 Spring, tensioner |
815093002 |
US $16.11 |
||
|
18
|
18
825452002 Spring |
825452002 |
US $3.71 |
||
|
NI
|
NI
898103T33 New Genuine Part30 Horsepower [0R122288] & Below |
898103T33 |
US $5,681.01 |
||
| replacement | |||||
|
NI
|
NI
889246T30 PH 30 4S30 Horsepower [0R122288] & Below |
889246T30 |
US $5,681.01 |
||
|
NI
|
NI
898103A87 New Genuine Part30 Horsepower [0R122289] THRU [0R685370] |
898103A87 |
US $5,681.01 |
||
| replacement | |||||
|
NI
|
NI
889246T30 PH 30 4S30 Horsepower [0R122289] THRU [0R685370] |
889246T30 |
US $5,681.01 |
||
|
NI
|
NI
8M0123817
Short Block
30 Horsepower [0R685371] & Up |
8M0123817 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0138733
SHORT BLOCK
30 Horsepower [0R685371] & Up |
8M0138733 |
— | ||
|
NI
|
NI
898103T34 New Genuine Part25 Horsepower [0R685370] & Below |
898103T34 |
US $5,382.86 |
||
|
NI
|
NI
8M0123819
Short Block
25 Horsepower [0R685371] & Up |
8M0123819 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0138735
SHORT BLOCK
25 Horsepower [0R685371] & Up |
8M0138735 |
— | ||
