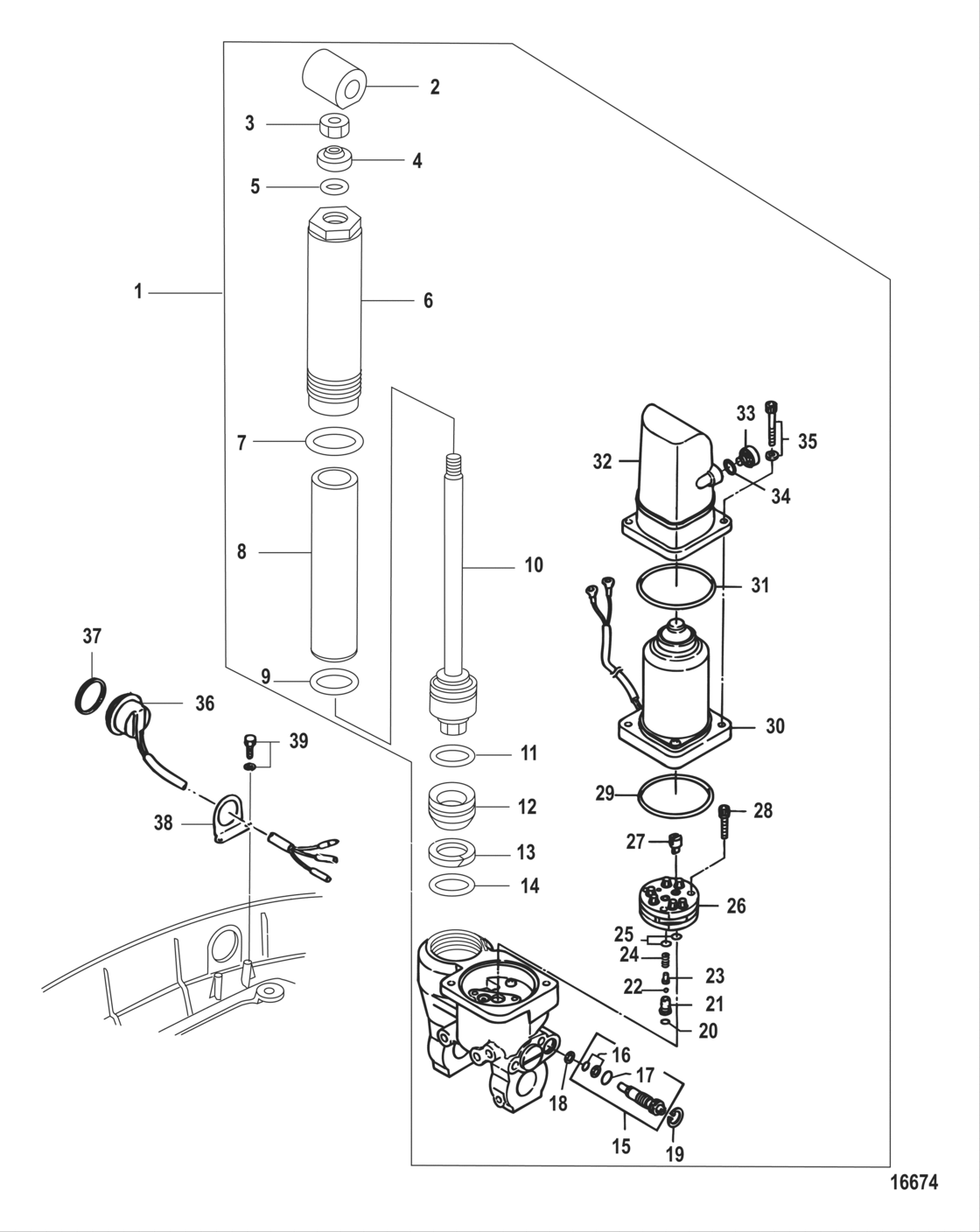

Power Trim/tilt Components Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
851873T03 Power trim and tilt assy |
851873T03 |
US $1,698.43 |
||
|
2
|
2
898101246 New Genuine Part |
898101246 |
US $176.78 |
||
|
3
|
3
898101247 Nut |
898101247 |
US $17.28 |
||
|
4
|
4
898101248 Seal |
898101248 |
US $19.01 |
||
|
5
|
5
898101249 O-ring |
898101249 |
US $11.36 |
||
|
6
|
6
898103T36 New Genuine Part |
898103T36 |
US $299.55 |
||
|
7
|
7
898101254 O-ring |
898101254 |
US $13.79 |
||
|
8
|
8
898103T37 New Genuine Part |
898103T37 |
US $33.78 |
||
|
9
|
9
898101255 O-ring |
898101255 |
US $14.85 |
||
|
10
|
10
898103T38 New Genuine Part |
898103T38 |
US $537.73 |
||
|
11
|
11
898101250 O-ring |
898101250 |
US $10.78 |
||
|
12
|
12
898101251 New Genuine Part |
898101251 |
US $102.90 |
||
|
13
|
13
898101252 New Genuine Part |
898101252 |
US $56.56 |
||
|
14
|
14
898101253 O-ring |
898101253 |
US $14.03 |
||
|
15
|
15
898101115 Manual valve assy |
898101115 |
US $307.10 |
||
|
16
|
16
898101167 N.l.a. |
898101167 |
US $46.56 |
||
|
17
|
17
812641003 O-ring |
812641003 |
US $6.72 |
||
|
18
|
18
898101245 Seal |
898101245 |
US $15.01 |
||
|
19
|
19
804027002 C ring |
804027002 |
US $10.21 |
||
|
20
|
20
803513009 O-ring |
803513009 |
US $5.92 |
||
|
21
|
21
898101213 N.l.a. |
898101213 |
US $113.86 |
||
|
22
|
22
898101005 N.l.a. |
898101005 |
US $11.94 |
||
|
23
|
23
898101180 N.l.a. |
898101180 |
US $18.67 |
||
|
24
|
24
898101176 Spring |
898101176 |
US $7.07 |
||
|
25
|
25
161314 O-ring |
161314 |
US $10.90 |
||
|
26
|
26
898103T12 Pump |
898103T12 |
US $370.11 |
||
|
27
|
27
851877001 New Genuine Part |
851877001 |
US $28.90 |
||
|
28
|
28
8518663 Bolt |
8518663 |
US $6.85 |
||
|
29
|
29
16131011 O-ring |
16131011 |
US $13.79 |
||
|
30
|
30
898103T31 New Genuine Part |
898103T31 |
US $492.14 |
||
|
31
|
31
898101130 O-ring |
898101130 |
US $18.32 |
||
|
32
|
32
898103T15 Reservoir tank |
898103T15 |
US $125.10 |
||
|
33
|
33
898101024 N.l.a. |
898101024 |
US $37.55 |
||
|
34
|
34
898101129 O-ring |
898101129 |
US $7.78 |
||
|
35
|
35
898101015 Screw |
898101015 |
US $15.07 |
||
|
36
|
36
898103011 Switch, ptt |
898103011 |
US $85.10 |
||
|
37
|
37
898101145 O-ring |
898101145 |
US $9.15 |
||
|
38
|
38
896630 New Genuine Part |
896630 |
US $26 |
||
|
39
|
39
8248324 Screw |
8248324 |
US $2.04 |
