Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 898103T21 Swivel Bracket	898103T21	US $402.45
2	2 16336007 Bushing	16336007	US $15.89
3	3 803774004 New Genuine Part	803774004	US $7.07
4	4 16109002 O-ring	16109002	US $6.61
5	5 804027001 C-ring	804027001	US $9.50
6	6 853786T06 New Genuine Part	853786T06	US $135.89
7	7 898101091 Wire, ground	898101091	US $12.64
8	8 8230427 Bolt	8230427	US $3.71
9	9 851866009 Bolt, lower	851866009	US $38.34
10	10 95392014 Washer	95392014	US $6.26
	replacement
10	10 879194343 WASHER	879194343	US $6.26
11	11 8537732 New Genuine Part	8537732	US $21.33
12	12 8537712 New Genuine Part	8537712	US $58.67
	replacement
12	12 8M0075315 MOUNT	8M0075315	US $58.67
13	13 851867 Washer	851867	US $13.57
14	14 953928 Washer	953928	US $10.08
15	15 95374002 Nut	95374002	US $16
16	16 851869002 New Genuine Part	851869002	US $33.01
17	17 167051 Bolt	167051	US $6.27
18	18 NSS Not Sold Separate O-Ring	NSS	—
19	19 898101090 Wire, ground	898101090	US $12.53
20	20 16826 Washer, stainless steel	16826	US $3.40
21	21 824969 Fitting, grease	824969	US $7.78
22	22 895140002 Bolt Handle	895140002	US $14.78
23	23 895173 Disc 2 Handle	895173	US $16.78
24	24 895146002 Washer Handle	895146002	US $12.86
25	25 895146001 Washer Handle	895146001	US $3.71
26	26 898101035 New Genuine Part Handle	898101035	US $24
27	27 898101083 New Genuine Part Handle	898101083	US $14.22
28	28 853776 New Genuine Part Handle	853776	US $4.40
	replacement
28	28 8M0051399 Stopper Handle	8M0051399	US $4.40
29	29 895106001 Washer Handle	895106001	US $3.14
	replacement
29	29 16192 Washer Handle	16192	US $3.14
30	30 95374 Nut, nylon, clamp bracket screw Handle	95374	US $8.35
31	31 898101036 New Genuine Part Handle	898101036	US $12.53
32	32 8248324 Screw Handle	8248324	US $2.04
33	33 898101031 Collar Handle	898101031	US $6.61
34	34 853770T03 New Genuine Part	853770T03	US $537.44
	replacement
34	34 853770T09 SWIVEL TUBE	853770T09	US $537.44
35	35 162382 Washer	162382	US $4.64
36	36 853772002 Lock plate	853772002	US $3.82
37	37 898101121 Nut	898101121	—
	replacement
37	37 85372215 Nut	85372215	US $3.60
38	38 898101161 New Genuine Part	898101161	US $21.33
39	39 823042040 Bolt, stainless steel	823042040	US $3.60
	replacement
39	39 16705 Bolt	16705	US $3.60
40	40 898101242 New Genuine Part	898101242	US $48.56
41	41 853772003 Lock plte-upper	853772003	US $5.10
42	42 898101043 New Genuine Part	898101043	US $17.33
43	43 898101160 Screw, upper mount	898101160	US $25.55
44	44 853773003 Damper-upper	853773003	US $17.78
NI	NI 898103A92 New Genuine Part	898103A92	US $132.67

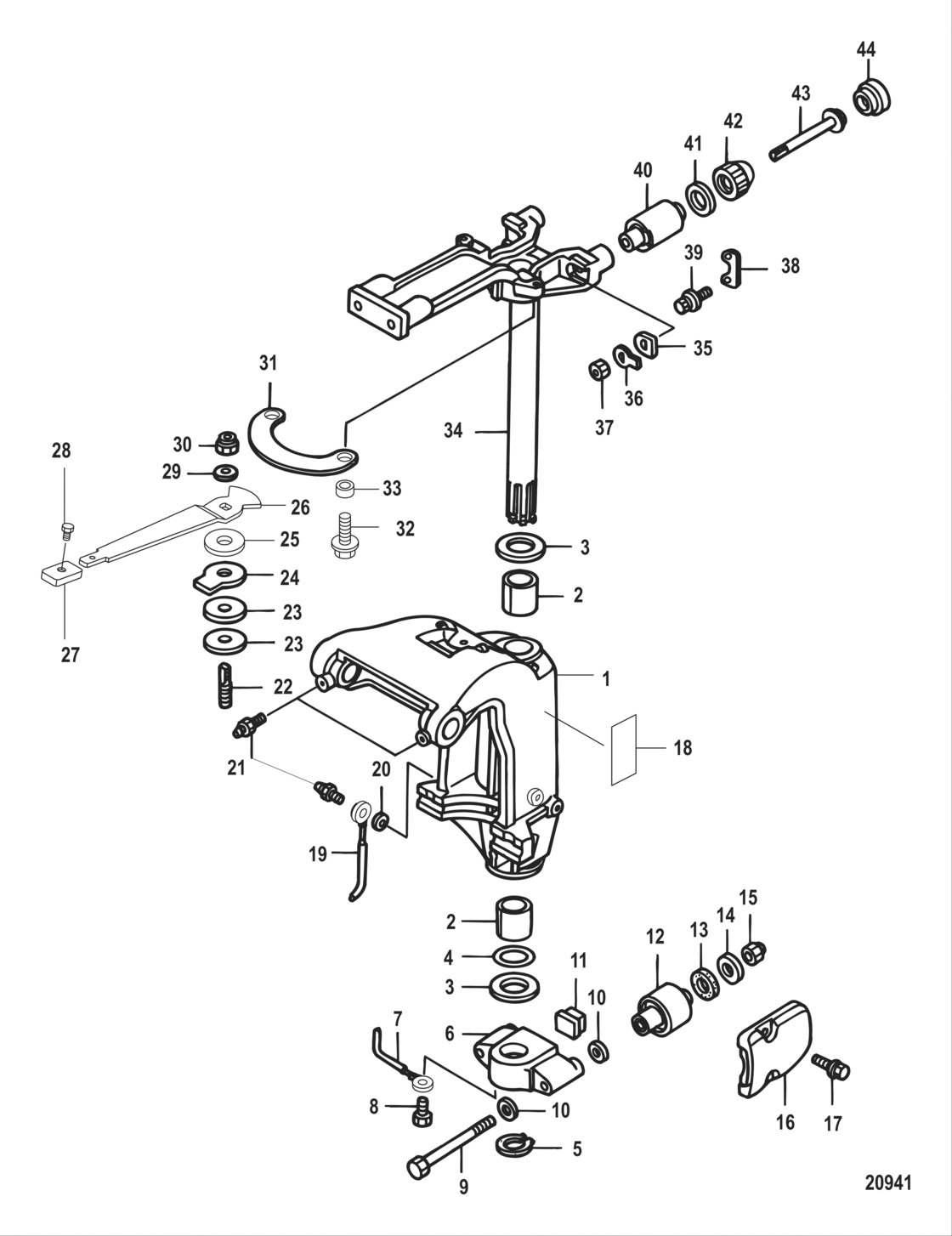

Swivel Bracket Manual Diagram Mercury-Mercruiser F30 18233841-945679

Swivel Bracket Manual Diagram Mercury-Mercruiser F30 18233841-945679
