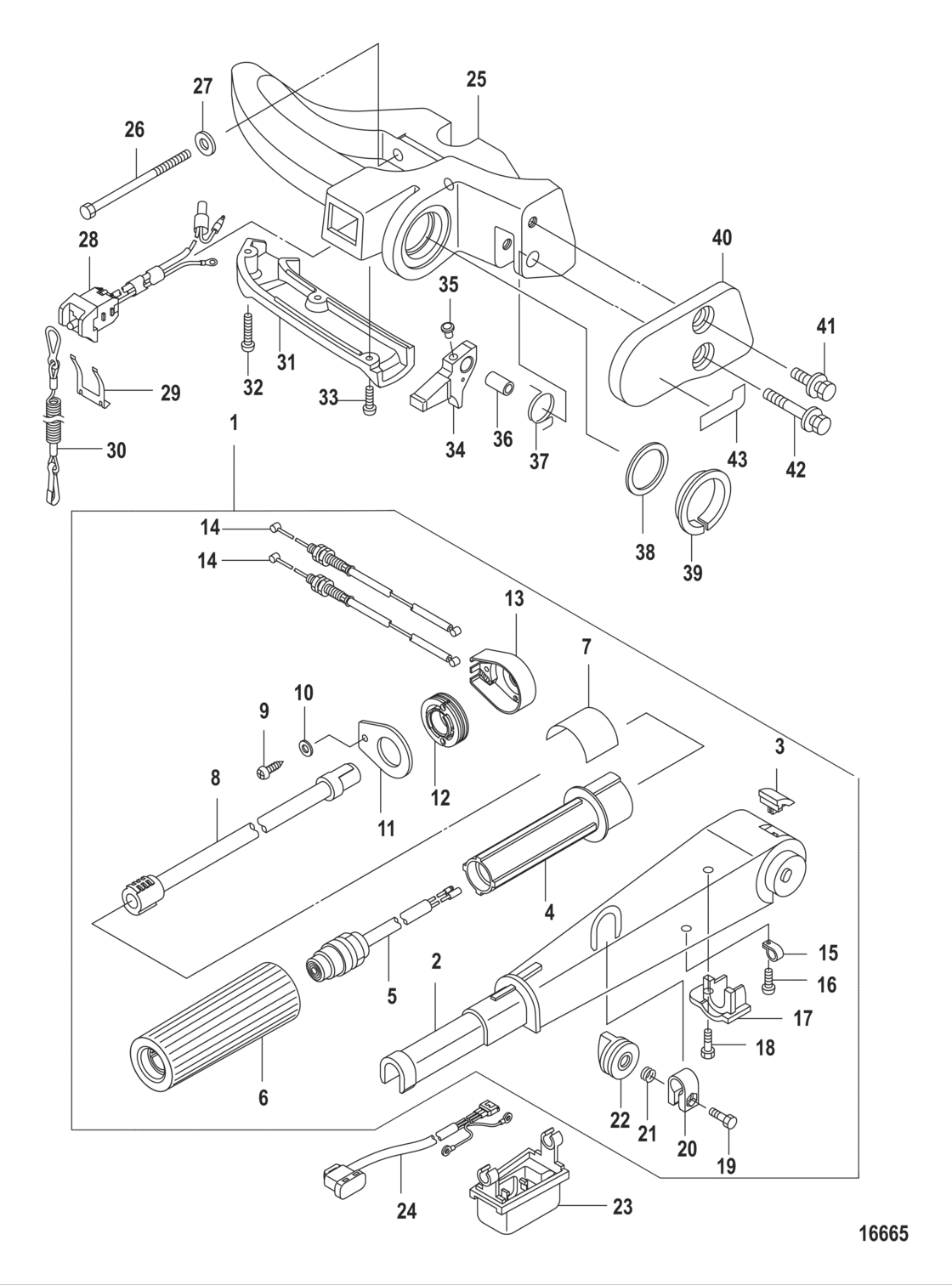

Tiller Handle Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
898103T24
New Genuine Part
Non Jet |
898103T24 |
— | ||
|
2
|
2
803996T01 Handle-tiller |
803996T01 |
US $96.90 |
||
| replacement | |||||
|
2
|
2
8M0051374 Tiller Handle |
8M0051374 |
US $96.90 |
||
|
3
|
3
895134 Plug-cap |
895134 |
US $6.03 |
||
| replacement | |||||
|
3
|
3
8M0051375 Plug Cap |
8M0051375 |
US $6.03 |
||
|
4
|
4
853775002 Grip-inner |
853775002 |
US $19.33 |
||
| replacement | |||||
|
4
|
4
8M0051377 Grip |
8M0051377 |
US $19.33 |
||
|
4
|
4
898101649 New Genuine PartJet |
898101649 |
US $17.55 |
||
| replacement | |||||
|
4
|
4
8M0051378 HANDLE-GRIPJet |
8M0051378 |
US $17.55 |
||
|
5
|
5
823037A07 Switch Assembly Stop |
823037A07 |
US $47.10 |
||
| replacement | |||||
|
5
|
5
8M0051405 Switch Assembly Stop |
8M0051405 |
US $47.10 |
||
|
6
|
6
853775001 Grip-outer |
853775001 |
US $21.44 |
||
| replacement | |||||
|
6
|
6
8M0051376 Grip Rubber |
8M0051376 |
US $21.44 |
||
|
7
|
7
896853008 Decal, tiller handle shift-rabbit |
896853008 |
US $5.68 |
||
|
7
|
7
8M0012082 Decal Tiller Handle ShiftJet |
8M0012082 |
US $29.33 |
||
|
8
|
8
898101206 New Genuine Part |
898101206 |
US $47.44 |
||
| replacement | |||||
|
8
|
8
8M0051379 Shaft Throttle |
8M0051379 |
US $47.44 |
||
|
9
|
9
16257003 Screw, tapping - stainless steel |
16257003 |
US $3.36 |
||
|
10
|
10
16080 Washer, stainless steel |
16080 |
US $1.28 |
||
| replacement | |||||
|
10
|
10
8M0108373 WASHER |
8M0108373 |
US $1.28 |
||
|
11
|
11
895139 New Genuine Part |
895139 |
US $6.50 |
||
| replacement | |||||
|
11
|
11
8M0051388 Cover |
8M0051388 |
US $6.50 |
||
|
12
|
12
895137 New Genuine Part |
895137 |
US $6.85 |
||
| replacement | |||||
|
12
|
12
8M0051386 Pulley |
8M0051386 |
US $6.85 |
||
|
13
|
13
895138 New Genuine Part |
895138 |
US $6.96 |
||
| replacement | |||||
|
13
|
13
8M0051387 Housing |
8M0051387 |
US $6.96 |
||
|
14
|
14
898101198 CABLE, Throttle |
898101198 |
US $28.22 |
||
| replacement | |||||
|
14
|
14
8M0051389 Cable Throttle |
8M0051389 |
US $28.22 |
||
|
15
|
15
17169 Clamp |
17169 |
US $2.90 |
||
|
16
|
16
855544020 Screw |
855544020 |
US $4.53 |
||
| replacement | |||||
|
16
|
16
8M0051381 Screw |
8M0051381 |
US $4.53 |
||
|
17
|
17
853752001 New Genuine Part |
853752001 |
US $6.38 |
||
| replacement | |||||
|
17
|
17
8M0051380 Bracket |
8M0051380 |
US $9.66 |
||
|
18
|
18
878388 Screw, stainless steel |
878388 |
US $4.53 |
||
| replacement | |||||
|
18
|
18
8M0051381 Screw |
8M0051381 |
US $4.53 |
||
|
19
|
19
823042039 Bolt |
823042039 |
US $3.47 |
||
| replacement | |||||
|
19
|
19
4000330 Screw, adaptor |
4000330 |
US $4.54 |
||
|
20
|
20
813026001 New Genuine Part |
813026001 |
US $5.57 |
||
| replacement | |||||
|
20
|
20
8M0051382 Clamp Friction - Throttle |
8M0051382 |
US $5.57 |
||
|
21
|
21
892777 Spring, stainless steel |
892777 |
US $5.33 |
||
| replacement | |||||
|
21
|
21
8M0051384 Spring Stainless Steel |
8M0051384 |
US $5.33 |
||
|
22
|
22
892776 Nut |
892776 |
US $10.32 |
||
| replacement | |||||
|
22
|
22
8M0051383 Nut |
8M0051383 |
US $10.32 |
||
|
23
|
23
896296 Housing-switch |
896296 |
US $15.54 |
||
| replacement | |||||
|
23
|
23
8M4501941 HOUSING-SWITCH |
8M4501941 |
US $15.54 |
||
|
24
|
24
898101143 Switch, power tilt |
898101143 |
US $117.22 |
||
| replacement | |||||
|
24
|
24
8M4501973 SWITCH |
8M4501973 |
US $117.22 |
||
|
25
|
25
804019T01 Handle Carrying |
804019T01 |
US $175.01 |
||
| replacement | |||||
|
25
|
25
8M0051392 Handle-Carry |
8M0051392 |
US $234.26 |
||
|
26
|
26
895140 Bolt, steel |
895140 |
US $11.01 |
||
| replacement | |||||
|
26
|
26
8M0058362 Bolt Steel |
8M0058362 |
US $11.01 |
||
|
27
|
27
895141 Washer, stainless steel |
895141 |
US $4.40 |
||
| replacement | |||||
|
27
|
27
879194340 Washer |
879194340 |
US $4.40 |
||
|
28
|
28
892395T02 Switch Assembly Stop |
892395T02 |
US $95.22 |
||
|
29
|
29
120441 New Genuine Part |
120441 |
US $4.50 |
||
| replacement | |||||
|
29
|
29
8M0032846 New Genuine Part |
8M0032846 |
US $4.50 |
||
|
30
|
30
15920Q54
New Genuine Part
|
15920Q54 |
— | ||
|
31
|
31
895142001 New Genuine Part |
895142001 |
US $11.94 |
||
| replacement | |||||
|
31
|
31
8M0051393 Cover |
8M0051393 |
US $11.94 |
||
|
32
|
32
898101241 Screw, stainless steel |
898101241 |
US $4.99 |
||
| replacement | |||||
|
32
|
32
8M0051395 SCREW |
8M0051395 |
US $4.99 |
||
|
33
|
33
898101230 Screw, stainless steel |
898101230 |
US $3.82 |
||
| replacement | |||||
|
33
|
33
8M0051394 Screw Stainless Steel (M4 X 16) |
8M0051394 |
US $3.82 |
||
|
34
|
34
895144 New Genuine Part |
895144 |
US $18 |
||
| replacement | |||||
|
34
|
34
8M0051396 Lever Tiller Lock - Stainless Steel |
8M0051396 |
US $18 |
||
|
35
|
35
853776 New Genuine Part |
853776 |
US $4.40 |
||
| replacement | |||||
|
35
|
35
8M0051399 Stopper |
8M0051399 |
US $4.40 |
||
|
36
|
36
95286025 Collar, stainless steel |
95286025 |
US $7.65 |
||
| replacement | |||||
|
36
|
36
8M0051397 Collar Stainless Steel |
8M0051397 |
US $7.65 |
||
|
37
|
37
892777001 Spring, stainless steel |
892777001 |
US $9.15 |
||
| replacement | |||||
|
37
|
37
8M0051398 Spring Stainless Steel |
8M0051398 |
US $9.15 |
||
|
38
|
38
898101217 Washer, rubber |
898101217 |
US $4.86 |
||
| replacement | |||||
|
38
|
38
8M0051404 Washer Rubber |
8M0051404 |
US $4.86 |
||
|
39
|
39
851858006 Bushing, plastic |
851858006 |
US $4.86 |
||
| replacement | |||||
|
39
|
39
8M0051403 Bushing Plastic |
8M0051403 |
US $4.86 |
||
|
40
|
40
895145 New Genuine Part |
895145 |
US $43.78 |
||
| replacement | |||||
|
40
|
40
8M0051400 Cover |
8M0051400 |
US $43.78 |
||
|
41
|
41
825702002 Bolt, stainless steel |
825702002 |
US $3.36 |
||
| replacement | |||||
|
41
|
41
823042 Bolt |
823042 |
US $3.36 |
||
|
42
|
42
823042042 Bolt, stainless steel |
823042042 |
US $5.10 |
||
| replacement | |||||
|
42
|
42
8M0051402 Bolt Stainless Steel |
8M0051402 |
US $5.10 |
||
|
43
|
43
898101202
Decal, throttle-lock
|
898101202 |
— | ||
| replacement | |||||
|
43
|
43
892904006
Decal, tiller lock release
|
892904006 |
— | ||
|
NI
|
NI
898101A01 Trim switch kit |
898101A01 |
US $255.22 |
||
