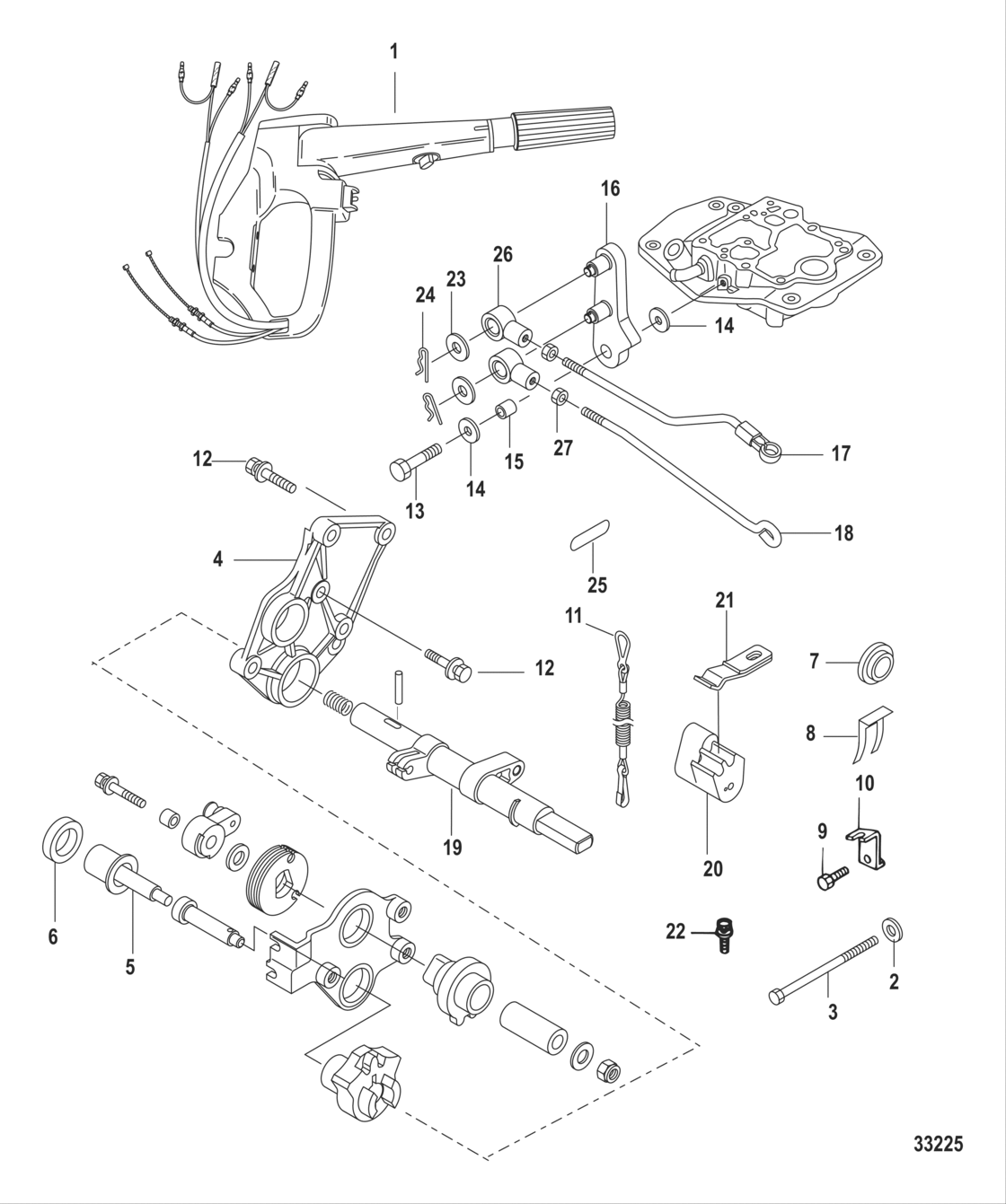

Tiller Handle Conversion Kit 25-30 Hp (889246A71) Diagram Mercury-Mercruiser F30
- Power
- 30
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R106999 & Up
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
2
|
2
895141 Washer, stainless steel |
895141 |
US $4.40 |
||
| replacement | |||||
|
2
|
2
879194340 Washer |
879194340 |
US $4.40 |
||
|
3
|
3
895140 Bolt, steel |
895140 |
US $11.01 |
||
| replacement | |||||
|
3
|
3
8M0058362 Bolt Steel |
8M0058362 |
US $11.01 |
||
|
4
|
4
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
5
|
5
898101110 New Genuine Part |
898101110 |
US $6.50 |
||
|
6
|
6
898101166 Grommet, rubber |
898101166 |
US $4.40 |
||
|
7
|
7
898101625 Plug, plastic |
898101625 |
US $6.38 |
||
|
8
|
8
898101149 New Genuine Part |
898101149 |
US $7.65 |
||
|
9
|
9
823042038 Bolt |
823042038 |
US $6.68 |
||
| replacement | |||||
|
9
|
9
879194248 Bolt |
879194248 |
US $5.46 |
||
|
10
|
10
898101265 New Genuine Part |
898101265 |
US $8 |
||
|
11
|
11
15920Q54
New Genuine Part
|
15920Q54 |
— | ||
|
12
|
12
825702002 Bolt, stainless steel |
825702002 |
US $3.36 |
||
| replacement | |||||
|
12
|
12
823042 Bolt |
823042 |
US $3.36 |
||
|
13
|
13
823042040 Bolt, stainless steel |
823042040 |
US $3.60 |
||
| replacement | |||||
|
13
|
13
16705 Bolt |
16705 |
US $3.60 |
||
|
14
|
14
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
15
|
15
95286029 Collar, stainless steel |
95286029 |
US $6.14 |
||
|
16
|
16
898101195 New Genuine Part |
898101195 |
US $6.50 |
||
|
17
|
17
898101204 New Genuine Part |
898101204 |
US $23.01 |
||
|
18
|
18
898101205 New Genuine Part |
898101205 |
US $14.72 |
||
|
19
|
19
898103T16 New Genuine Part |
898103T16 |
US $97.66 |
||
|
20
|
20
898101112 New Genuine Part |
898101112 |
US $15.78 |
||
|
21
|
21
898101171
New Genuine Part
|
898101171 |
— | ||
| replacement | |||||
|
21
|
21
8M0138740
SPRING DETENT
|
8M0138740 |
— | ||
|
22
|
22
82304234 Bolt |
82304234 |
US $3.60 |
||
| replacement | |||||
|
22
|
22
8230427 Bolt |
8230427 |
US $3.71 |
||
|
23
|
23
898101218 Washer, plastic |
898101218 |
US $4.53 |
||
|
24
|
24
898101174 Cotter pin, stainless steel |
898101174 |
US $3.47 |
||
|
25
|
25
859278003 Decal, throttle only |
859278003 |
US $3.71 |
||
|
26
|
26
892775 Cable joint |
892775 |
US $5.10 |
||
|
27
|
27
16081 Nut, stainless steel |
16081 |
US $4.99 |
||
|
NI
|
NI
889246A71 New Genuine Part[0R106999] & Up |
889246A71 |
US $865.62 |
||
| replacement | |||||
|
NI
|
NI
8M0051061 Conversion Kit Tiller Handle (Manual Remote Control To Manual Handle)[0R106999] & Up |
8M0051061 |
US $865.62 |
||
