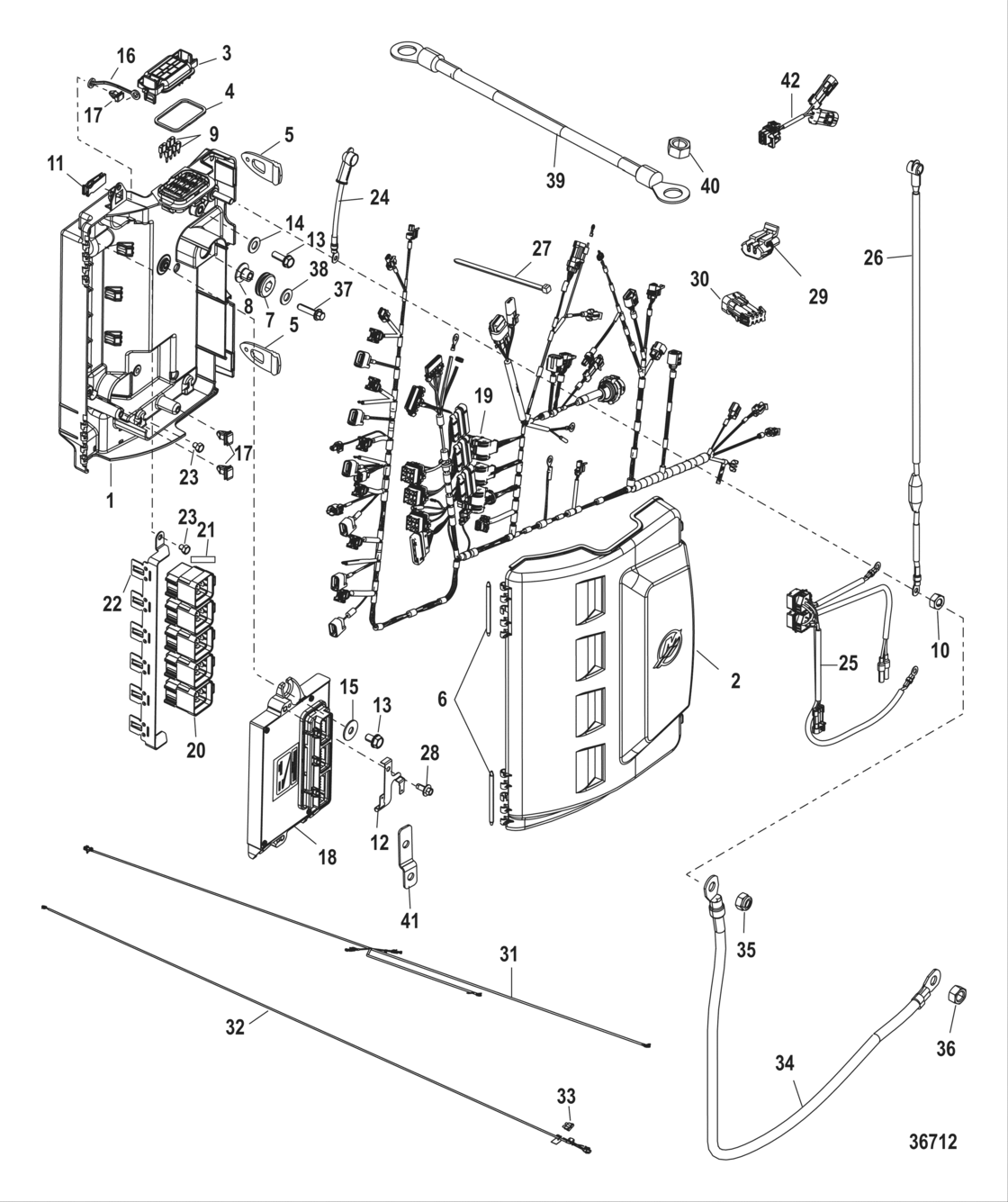

Electrical Box Components Diagram Mercury-Mercruiser F350 Verado
- Power
- 350
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 1B716557 THRU 2B143542
- Серия
- SCi
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
885560T03 New Genuine Part |
885560T03 |
US $256.78 |
||
|
2
|
2
885561T New Genuine Part |
885561T |
US $209.97 |
||
|
3
|
3
888491 Cover-fuse |
888491 |
US $4.75 |
||
|
4
|
4
885583 Seal |
885583 |
US $1.62 |
||
|
5
|
5
889531 New Genuine Part |
889531 |
US $1.62 |
||
|
6
|
6
885584 Pin-hinge |
885584 |
US $4.53 |
||
|
7
|
7
833155 Grommet |
833155 |
US $3.71 |
||
|
8
|
8
8502341 Bushing |
8502341 |
US $2.54 |
||
|
9
|
9
83296920 Fuse, mini - yellow - 20 ampere |
83296920 |
US $3.82 |
||
| replacement | |||||
|
9
|
9
832969T20 Fuse Mini - Yellow - 20 Ampere |
832969T20 |
US $7.48 |
||
|
9
|
9
8329692 Fuse, mini - gray - 2 ampere |
8329692 |
US $4.06 |
||
|
10
|
10
400213 Nut, stainless steel |
400213 |
US $2.43 |
||
|
11
|
11
895099 Extractor-fuse |
895099 |
US $1.62 |
||
|
12
|
12
891520001 Clip |
891520001 |
US $4.86 |
||
|
13
|
13
40011146 Screw, stainless steel |
40011146 |
US $2.21 |
||
|
14
|
14
843108 Washer |
843108 |
US $0.82 |
||
|
15
|
15
817274 Washer |
817274 |
US $1.28 |
||
|
16
|
16
892244 New Genuine Part |
892244 |
US $2.21 |
||
|
17
|
17
879962 Clip |
879962 |
US $1.74 |
||
|
18
|
18
89790753T Pcm Propulsion Control Module[1B718255] & Below |
89790753T |
US $8,137.12 |
||
| replacement | |||||
|
18
|
18
89790754T Pcm Propulsion Control Module[1B718255] & Below |
89790754T |
US $8,137.12 |
||
|
18
|
18
89790754T Pcm Propulsion Control Module[1B718256] & Up |
89790754T |
US $8,137.12 |
||
|
18
|
18
89790755T Pcm Propulsion Control ModuleEU |
89790755T |
US $7,027.86 |
||
|
19
|
19
880616T08 Harness Assembly Engine |
880616T08 |
US $1,099.10 |
||
|
20
|
20
882751A04 Trim relay assy |
882751A04 |
US $24.45 |
||
|
21
|
21
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
22
|
22
889532 New Genuine Part |
889532 |
US $15.55 |
||
|
23
|
23
40007103 Screw |
40007103 |
US $1.86 |
||
|
24
|
24
93388A17 Cable Assembly (8.50 Inches) |
93388A17 |
US $22.72 |
||
|
25
|
25
879345T34 Harness Assembly Trim |
879345T34 |
US $80 |
||
|
26
|
26
892137T03 Harness Assembly Fuse |
892137T03 |
US $170.36 |
||
|
27
|
27
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
28
|
28
82129114 Screw |
82129114 |
US $1.97 |
||
|
29
|
29
830797A01 Connector asy |
830797A01 |
US $4.96 |
||
|
30
|
30
877613A1 New Genuine Part |
877613A1 |
US $12.53 |
||
|
31
|
31
899887T21 Harness Assembly Vessel |
899887T21 |
US $162.91 |
||
|
32
|
32
888416T04 Harness Assembly Dts, Clean Power, 15 Feet Clean PowerLong |
888416T04 |
US $104.75 |
||
| replacement | |||||
|
32
|
32
8M0113732 Harness Assembly Dts, Clean Power, 14 FeetLong |
8M0113732 |
US $163.98 |
||
|
33
|
33
862646 Fuse-tan-5 amp |
862646 |
US $3.60 |
||
|
34
|
34
88439A25 Cable Assembly Battery - Positive(Long) |
88439A25 |
US $90.64 |
||
|
35
|
35
401388 Nut, stainless steel |
401388 |
US $2.93 |
||
|
36
|
36
86226 Nut, , starter terminal |
86226 |
US $2.43 |
||
|
37
|
37
88552635 Screw |
88552635 |
US $3.71 |
||
| replacement | |||||
|
37
|
37
8M0103814 Screw (M8 X 35 Mm) |
8M0103814 |
US $3.71 |
||
|
38
|
38
817274 Washer |
817274 |
US $1.28 |
||
|
39
|
39
88439A26 Cable Assembly Battery - Negative |
88439A26 |
US $107.90 |
||
|
40
|
40
68292 Nut |
68292 |
US $3.36 |
||
|
41
|
41
858953 New Genuine Part |
858953 |
US $11.82 |
||
|
42
|
42
898289T74 Harness Adaptor-Fuel Tank |
898289T74 |
US $24.11 |
||
|
NI
|
NI
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
