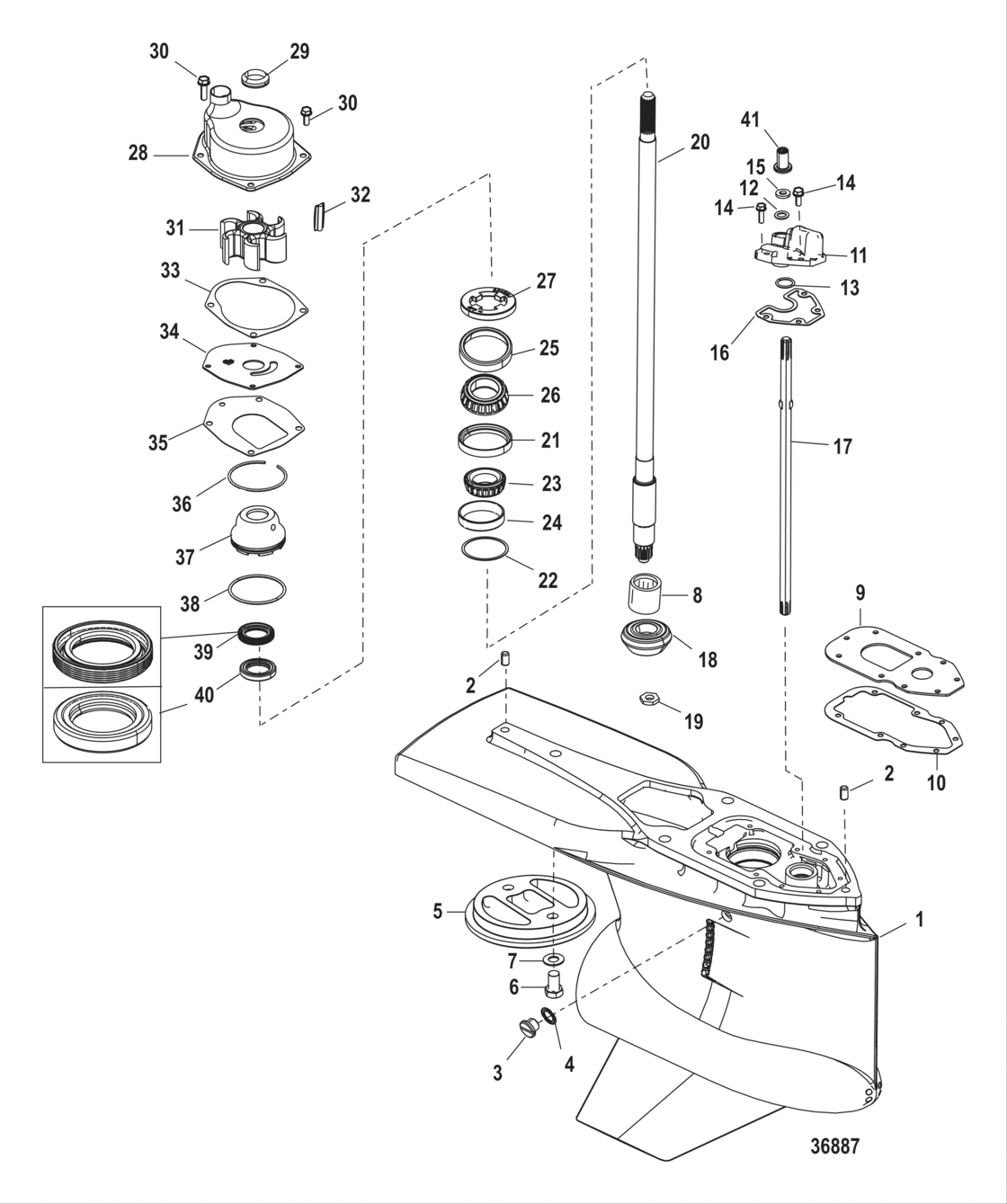

Gear Housing Driveshaft Diagram Mercury-Mercruiser F350 Verado
- Power
- 350
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 1B716557 THRU 2B143542
- Серия
- SCi
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
880686T66
Gear Housing Assembly Basic
|
880686T66 |
— | ||
|
2
|
2
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
3
|
3
79953A04 Plug Assembly (.375-16 X .250) |
79953A04 |
US $5.55 |
||
|
4
|
4
830749 Seal |
830749 |
US $5.93 |
||
| replacement | |||||
|
4
|
4
8M0204693 Seal |
8M0204693 |
US $5.93 |
||
|
5
|
5
847635001 New Genuine Part |
847635001 |
US $37.26 |
||
|
6
|
6
8M0036047 Screw (.375 X .62) |
8M0036047 |
US $2.91 |
||
|
7
|
7
841388 Washer (.410 X .810 X .050) Stainless Steel |
841388 |
US $0.69 |
||
|
8
|
8
817072 Bearing, roller |
817072 |
US $90.32 |
||
|
9
|
9
8M0033810 Plate Water Passge |
8M0033810 |
US $59.54 |
||
|
10
|
10
8M0033809 Gasket Water Pump |
8M0033809 |
US $13.09 |
||
|
11
|
11
8M8022275 Cover Assembly Shift Shaft |
8M8022275 |
US $136.70 |
||
|
12
|
12
8164641 Seal, oil, bell housing |
8164641 |
US $17.99 |
||
| replacement | |||||
|
12
|
12
8M0204708 SEAL |
8M0204708 |
US $19.26 |
||
|
13
|
13
896522 O-ring |
896522 |
US $1.85 |
||
|
14
|
14
1993720 Screw |
1993720 |
US $1.04 |
||
|
15
|
15
77674 Washer |
77674 |
US $1.85 |
||
|
16
|
16
8M0033641 Gasket |
8M0033641 |
US $29.53 |
||
|
17
|
17
824145 Shaft-shift-lower |
824145 |
US $92 |
||
|
18
|
18
NSS
Not Sold Separate O-Ring
Part of Reverse/Pinion Gear Set 43-880707A03 |
NSS |
— | ||
|
19
|
19
8M0030976 Nut |
8M0030976 |
US $43.30 |
||
|
20
|
20
888572T01 Driveshaft Long |
888572T01 |
US $528.34 |
||
|
20
|
20
888573T01 Driveshaft X-Long |
888573T01 |
US $555.55 |
||
|
20
|
20
888574T01 Driveshaft Xx-Long |
888574T01 |
US $619.10 |
||
|
21
|
21
884327A02 Shim/bearing assembly |
884327A02 |
US $212.22 |
||
|
22
|
22
38657A1
Shim assembly
|
38657A1 |
— | ||
|
23
|
23
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
24
|
24
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
25
|
25
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
26
|
26
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
27
|
27
8245191 New Genuine Part |
8245191 |
US $7.12 |
||
|
28
|
28
817275A13 Water Pump Assembly Complete |
817275A13 |
US $217.89 |
||
|
29
|
29
861415A1 Seal Kit |
861415A1 |
US $17.46 |
||
|
30
|
30
1993720 Screw |
1993720 |
US $1.04 |
||
|
31
|
31
43026T2 Impeller |
43026T2 |
US $50.47 |
||
|
32
|
32
8M0032833 Key |
8M0032833 |
US $4.47 |
||
| replacement | |||||
|
32
|
32
8M0204723
Key
|
8M0204723 |
— | ||
|
33
|
33
8172771 Gasket, water pump assembly |
8172771 |
US $6.24 |
||
|
34
|
34
8172761 Faceplate-w/p |
8172761 |
from US $16.54 |
||
| replacement | |||||
|
34
|
34
8M0204709 Faceplate-w/p |
8M0204709 |
US $16.54 |
||
|
35
|
35
430331 Gasket |
430331 |
US $11.37 |
||
|
36
|
36
880719 Ring, retaining |
880719 |
US $1.28 |
||
|
37
|
37
8M8022274 Carrier Assembly Oil Seal |
8M8022274 |
US $86.86 |
||
| replacement | |||||
|
37
|
37
8M8023745 CARRIER ASSY |
8M8023745 |
US $86.86 |
||
|
38
|
38
896523 O-ring (2.175 x .103) |
896523 |
US $1.21 |
||
|
39
|
39
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
40
|
40
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
41
|
41
43585 New Genuine Part |
43585 |
US $44.47 |
||
|
NI
|
NI
880686T60
Gear Housing Assembly Complete-Standard-Long
|
880686T60 |
— | ||
|
NI
|
NI
880686T61
Gear Housing Assembly Complete-Standard-X-Long
|
880686T61 |
— | ||
|
NI
|
NI
880686T63
Gear Housing Assembly Complete-Standard-Xx-Long
|
880686T63 |
— | ||
|
NI
|
NI
880686T65
Gear Housing Assembly Complete-Counter Rotation-Long
|
880686T65 |
— | ||
|
NI
|
NI
880686T62
Gear Housing Assembly Complete-Counter Rotation X-Long
|
880686T62 |
— | ||
|
NI
|
NI
880686T64
Gear Housing Assembly Complete-Counter Rotation-Xx-Long
|
880686T64 |
— | ||
|
NI
|
NI
830749A02 Seal Kit Gear Housing |
830749A02 |
US $197.33 |
||
|
NI
|
NI
43026Q06 Repair kit |
43026Q06 |
US $65.01 |
||
| replacement | |||||
|
NI
|
NI
8M0100526 Repair Kit Water Pump |
8M0100526 |
US $65.01 |
||
|
NI
|
NI
817275A08 Repair kit w/p up |
817275A08 |
US $165.14 |
||
