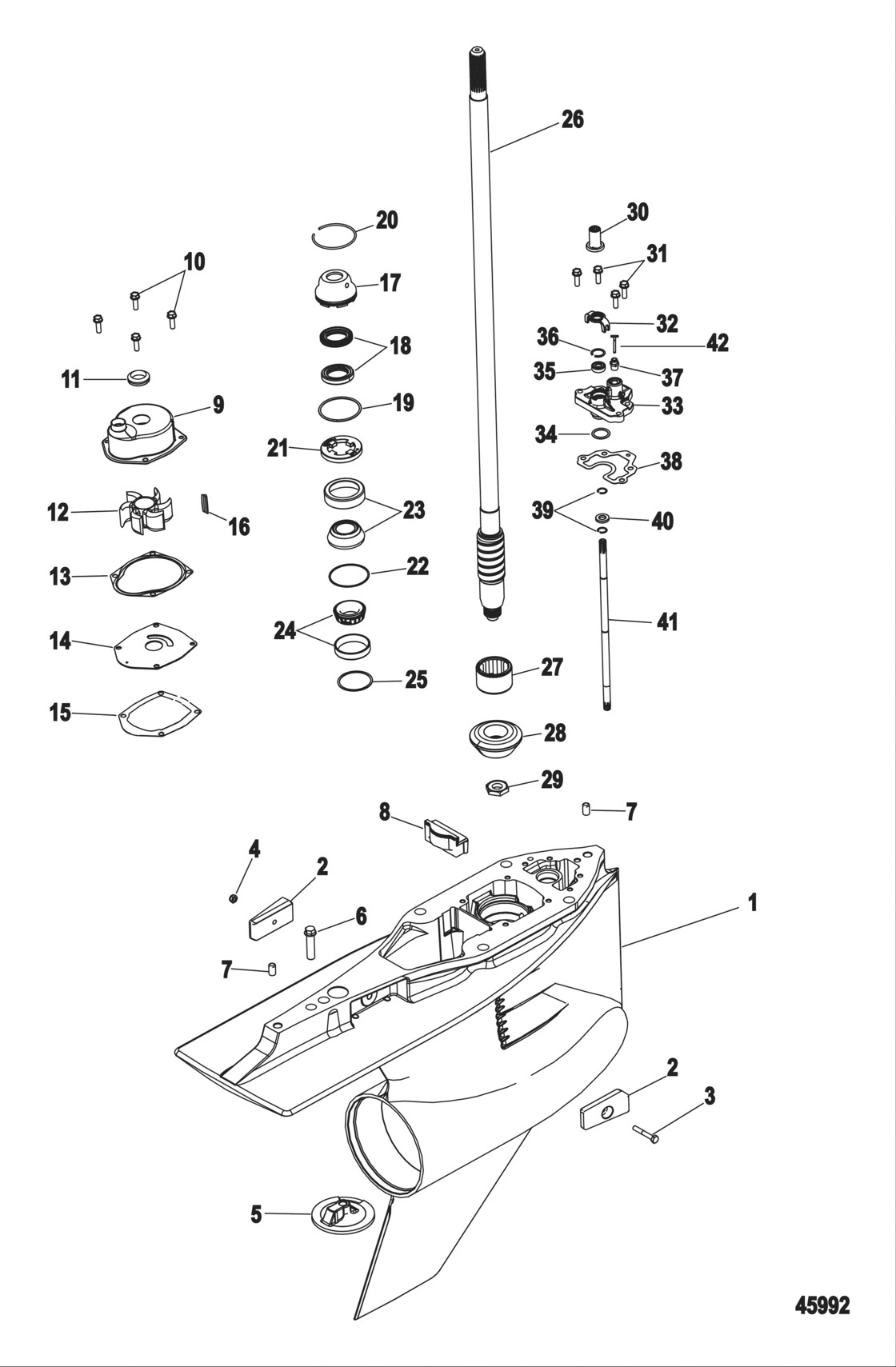

Gear Housing, Offshore Hd Driveshaft Diagram Mercury-Mercruiser F350 Verado
- Power
- 350
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 1B716557 THRU 2B143542
- Серия
- SCi
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0053107 Gear Housing Assembly Basic, Silver |
8M0053107 |
US $3,353.14 |
||
| replacement | |||||
|
1
|
1
8M0117251 GEARCASE - BASIC |
8M0117251 |
US $3,073.17 |
||
|
2
|
2
826134Q Anode 3 |
826134Q |
US $19.53 |
||
|
3
|
3
4000333 Screw |
4000333 |
US $4.64 |
||
|
4
|
4
401386 Nut, stainless steel |
401386 |
US $5.22 |
||
|
5
|
5
76214Q5 Anode kit 2 |
76214Q5 |
US $41.63 |
||
|
6
|
6
806327 Screw |
806327 |
US $7.12 |
||
|
7
|
7
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
8
|
8
8M0010459 New Genuine Part |
8M0010459 |
US $26.91 |
||
|
9
|
9
817275A1 HOUSING KIT W/P |
817275A1 |
US $139.52 |
||
|
10
|
10
1993720 Screw |
1993720 |
US $1.04 |
||
|
11
|
11
8M2014338 Seal Face |
8M2014338 |
US $0.32 |
||
|
12
|
12
43026Q02 Impeller |
43026Q02 |
US $50.98 |
||
|
13
|
13
8172771 Gasket, water pump assembly |
8172771 |
US $6.24 |
||
|
14
|
14
8172761 Faceplate-w/p |
8172761 |
from US $16.54 |
||
| replacement | |||||
|
14
|
14
8M0204709 Faceplate-w/p |
8M0204709 |
US $16.54 |
||
|
15
|
15
8M0050720 Gasket |
8M0050720 |
US $10.88 |
||
| replacement | |||||
|
15
|
15
8M0112903 GASKET |
8M0112903 |
US $10.42 |
||
|
16
|
16
8M0032833 Key |
8M0032833 |
US $4.47 |
||
| replacement | |||||
|
16
|
16
8M0204723
Key
|
8M0204723 |
— | ||
|
17
|
17
8M0046297 Oil Seal Assembly |
8M0046297 |
US $79.10 |
||
|
18
|
18
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
19
|
19
896523 O-ring (2.175 x .103) |
896523 |
US $1.21 |
||
|
20
|
20
880719 Ring, retaining |
880719 |
US $1.28 |
||
|
21
|
21
8245191 New Genuine Part |
8245191 |
US $7.12 |
||
|
22
|
22
8M0053110
Shim Set
|
8M0053110 |
— | ||
|
23
|
23
36387A1 Bearing, roller |
36387A1 |
US $104.79 |
||
| replacement | |||||
|
23
|
23
8M0146566 Bearing, roller |
8M0146566 |
US $107.70 |
||
|
24
|
24
48939A2 Bearing, tapered roller |
48939A2 |
US $25.38 |
||
|
25
|
25
38657A1
Shim assembly
|
38657A1 |
— | ||
|
26
|
26
8M0053106 DriveshaftL |
8M0053106 |
US $525.57 |
||
| replacement | |||||
|
26
|
26
8M0103301 Shaft Drive, LongL |
8M0103301 |
US $525.57 |
||
|
26
|
26
8M0053105 DriveshaftXL |
8M0053105 |
US $641.01 |
||
| replacement | |||||
|
26
|
26
8M0141337 DRIVESHAFT - XLXL |
8M0141337 |
US $841.06 |
||
|
26
|
26
8M0053104 DriveshaftXXL |
8M0053104 |
US $673.42 |
||
| replacement | |||||
|
26
|
26
8M0141338 DRIVESHAFT - XXLXXL |
8M0141338 |
US $673.42 |
||
|
27
|
27
8M0045676 Bearing Roller |
8M0045676 |
US $95.20 |
||
|
28
|
28
8M0053117 Gear Set 12/21(1.75:1) Forward And Pinion |
8M0053117 |
US $686.08 |
||
| replacement | |||||
|
28
|
28
8M0078258 Gear Set 12/21(1.75:1) Forward And Pinion |
8M0078258 |
US $686.08 |
||
|
29
|
29
8M0046636 Nut |
8M0046636 |
US $31.76 |
||
|
30
|
30
43585 New Genuine Part |
43585 |
US $44.47 |
||
|
31
|
31
1993720 Screw |
1993720 |
US $1.04 |
||
|
32
|
32
8M0050809 Grommet Assembly |
8M0050809 |
US $11.25 |
||
|
33
|
33
8M0047129 Cover Assembly |
8M0047129 |
US $32.67 |
||
|
34
|
34
896522 O-ring |
896522 |
US $1.85 |
||
|
35
|
35
8164641 Seal, oil, bell housing |
8164641 |
US $17.99 |
||
| replacement | |||||
|
35
|
35
8M0204708 SEAL |
8M0204708 |
US $19.26 |
||
|
36
|
36
8M0046563 Retaining Ring |
8M0046563 |
US $3.71 |
||
|
37
|
37
881866 Fitting |
881866 |
US $6.72 |
||
|
38
|
38
880729 Gasket |
880729 |
US $3.82 |
||
|
39
|
39
29641 E ring, shift shaft |
29641 |
US $1.80 |
||
|
40
|
40
8M0050602 Magnet |
8M0050602 |
US $14.22 |
||
|
41
|
41
8M0046104 Shift Shaft |
8M0046104 |
US $64.67 |
||
|
42
|
42
859732 Plug1.75:1 Ratio |
859732 |
US $1.50 |
||
|
NI
|
NI
8M0049869 Gear Housing Assembly Complete (Long)(1.75:1) |
8M0049869 |
US $9,485.71 |
||
| replacement | |||||
|
NI
|
NI
8M0078252 Gear Housing Assembly Complete (Standard Long)(1.75:1) |
8M0078252 |
US $9,485.71 |
||
|
NI
|
NI
8M0049870
Gear Housing Assembly Complete (X-Long)(1.75:1)
|
8M0049870 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0078253
Gear Housing Assembly Complete (Standard X-Long)(1.75:1)
|
8M0078253 |
— | ||
|
NI
|
NI
8M0049872
Gear Housing Assembly Complete (Xx-Long)(1.75:1)
|
8M0049872 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0078255
Gear Housing Assembly Complete (Standard Xx-Long)(1.75:1)
|
8M0078255 |
— | ||
|
NI
|
NI
8M0049874 Gear Housing Assembly Complete (C-Long)(1.75:1) |
8M0049874 |
US $10,731.42 |
||
| replacement | |||||
|
NI
|
NI
8M0078257 Gear Housing Assembly Complete (Counter Rotation-Long)(1.75:1) |
8M0078257 |
US $10,731.42 |
||
|
NI
|
NI
8M0049871
Gear Housing Assembly Complete (Cx-Long)(1.75:1)
|
8M0049871 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0078254
Gear Housing Assembly Complete (Counter Rotation X-Long)(1.75:1)
|
8M0078254 |
— | ||
|
NI
|
NI
8M0049873
Gear Housing Assembly Complete (Cxx-Long)(1.75:1)
|
8M0049873 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0078256
Gear Housing Assembly Complete (Counter Rotation Xx-Long)(1.75:1)
|
8M0078256 |
— | ||
