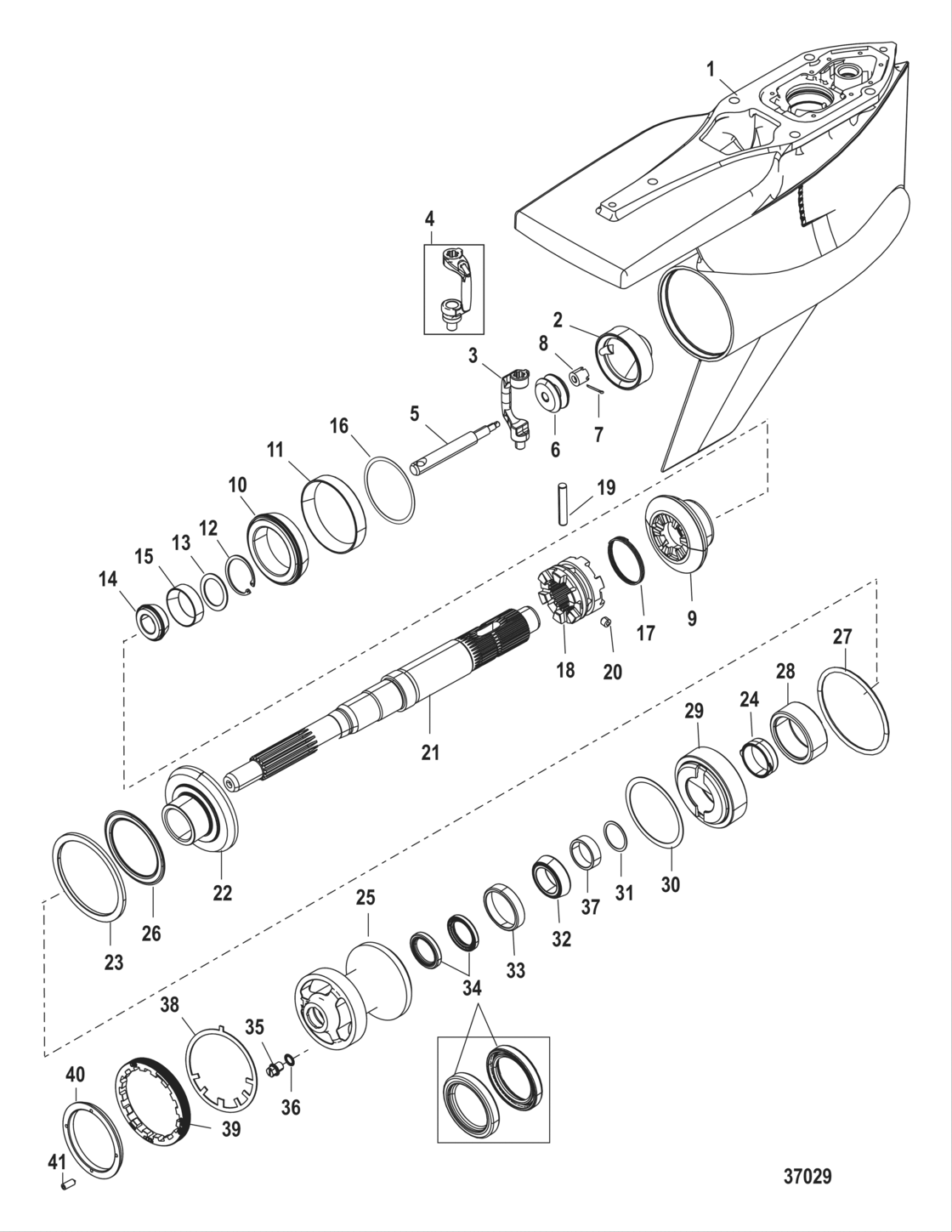

Gear Housing Propeller Shaft Diagram Mercury-Mercruiser F350 Verado
- Power
- 350
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 1B716557 THRU 2B143542
- Серия
- SCi
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
880686T66
Gear Housing Assembly Basic
|
880686T66 |
— | ||
|
2
|
2
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
3
|
3
896847A01 Crank-shifterStandard Rotation View |
896847A01 |
US $65.01 |
||
|
4
|
4
896847A01 Crank-shifterCounter Rotation View |
896847A01 |
US $65.01 |
||
|
5
|
5
19755T7 New Genuine Part |
19755T7 |
US $48.22 |
||
|
6
|
6
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
7
|
7
469501 Cotter pin, clutch actuating shaft |
469501 |
US $3.82 |
||
|
8
|
8
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
9
|
9
892595A06 Gear Kit Forward |
892595A06 |
US $1,808.30 |
||
|
10
|
10
884323T01 Bearing assembly, roller |
884323T01 |
US $86.12 |
||
|
11
|
11
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
12
|
12
23721 Ring, retaining - lower mount |
23721 |
US $1.97 |
||
| replacement | |||||
|
12
|
12
8M0051043 Retaining Ring |
8M0051043 |
US $2.43 |
||
|
13
|
13
892805 Thrust washer |
892805 |
US $15.89 |
||
| replacement | |||||
|
13
|
13
8M0053823 Thrust Washer |
8M0053823 |
US $15.89 |
||
|
14
|
14
884325T01 Bearing assembly, roller-tappered |
884325T01 |
US $101.78 |
||
|
15
|
15
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
16
|
16
884328A01
Shim set
|
884328A01 |
— | ||
|
17
|
17
30893 Spring, retainer-cross pin |
30893 |
US $3.15 |
||
|
18
|
18
880714T02 Clutch |
880714T02 |
US $283.78 |
||
|
19
|
19
8M0020941 Pin Cross |
8M0020941 |
US $3.82 |
||
| replacement | |||||
|
19
|
19
8M0100263 PIN @3 |
8M0100263 |
US $3.82 |
||
|
20
|
20
828356 Pin, detent |
828356 |
US $8.69 |
||
|
21
|
21
888530T01 Propeller Shaft |
888530T01 |
US $1,104.56 |
||
|
22
|
22
880707A03 Gear Set Reverse And Pinion |
880707A03 |
US $2,451.74 |
||
|
23
|
23
8M0030983 Washer Thrust |
8M0030983 |
US $76.51 |
||
|
24
|
24
892818 New Genuine Part |
892818 |
US $20.78 |
||
| replacement | |||||
|
24
|
24
8M0053183 Adapter |
8M0053183 |
US $20.78 |
||
|
25
|
25
8M8023633 Carrier Assembly Bearing |
8M8023633 |
US $1,018.90 |
||
|
26
|
26
815480 Bearing, thrust |
815480 |
US $33.22 |
||
|
27
|
27
8M0000190 O-Ring (4.475 X .210) |
8M0000190 |
US $7.82 |
||
|
28
|
28
814653T Bearing Assembly Needle Rollers |
814653T |
US $103.44 |
||
|
29
|
29
880728 Adaptor-bearing |
880728 |
US $232.67 |
||
|
30
|
30
47397A1 Shim set |
47397A1 |
US $21.03 |
||
|
31
|
31
891936A01 Shim set |
891936A01 |
US $25.59 |
||
|
32
|
32
884330T01 Bearing assembly, tappered |
884330T01 |
US $47.04 |
||
|
33
|
33
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
34
|
34
888483 Seal, oil |
888483 |
US $26.04 |
||
| replacement | |||||
|
34
|
34
8M0204700 Seal, oil |
8M0204700 |
US $30.48 |
||
|
35
|
35
880717A01 Screw/seal kit |
880717A01 |
US $31.33 |
||
|
36
|
36
830749 Seal |
830749 |
US $5.93 |
||
| replacement | |||||
|
36
|
36
8M0204693 Seal |
8M0204693 |
US $5.93 |
||
|
37
|
37
891919001 Spacer, thrust |
891919001 |
US $14.77 |
||
|
38
|
38
8M0027416 Tab Washer |
8M0027416 |
US $17.36 |
||
|
39
|
39
8M0001491 Nut Retainer |
8M0001491 |
US $87.78 |
||
| replacement | |||||
|
39
|
39
8M0111653 NUT |
8M0111653 |
US $87.78 |
||
|
40
|
40
8M0033816 CoverStandard |
8M0033816 |
US $98.86 |
||
|
41
|
41
8M0036819 Set Screw (10-32) |
8M0036819 |
US $6.36 |
||
|
NI
|
NI
880686T60
Gear Housing Assembly Complete-Standard-Long
|
880686T60 |
— | ||
|
NI
|
NI
880686T61
Gear Housing Assembly Complete-Standard-X-Long
|
880686T61 |
— | ||
|
NI
|
NI
880686T63
Gear Housing Assembly Complete-Standard-Xx-Long
|
880686T63 |
— | ||
|
NI
|
NI
880686T65
Gear Housing Assembly Complete-Counter Rotation-Long
|
880686T65 |
— | ||
|
NI
|
NI
880686T62
Gear Housing Assembly Complete-Counter Rotation X-Long
|
880686T62 |
— | ||
|
NI
|
NI
880686T64
Gear Housing Assembly Complete-Counter Rotation-Xx-Long
|
880686T64 |
— | ||
|
NI
|
NI
8M8023718 Cover Kit Flush-Standard |
8M8023718 |
US $121.02 |
||
|
NI
|
NI
8M8023719 Cover Kit Flush-.03 Extension |
8M8023719 |
US $263.55 |
||
|
NI
|
NI
830749A02 Seal Kit Gear Housing |
830749A02 |
US $197.33 |
||
