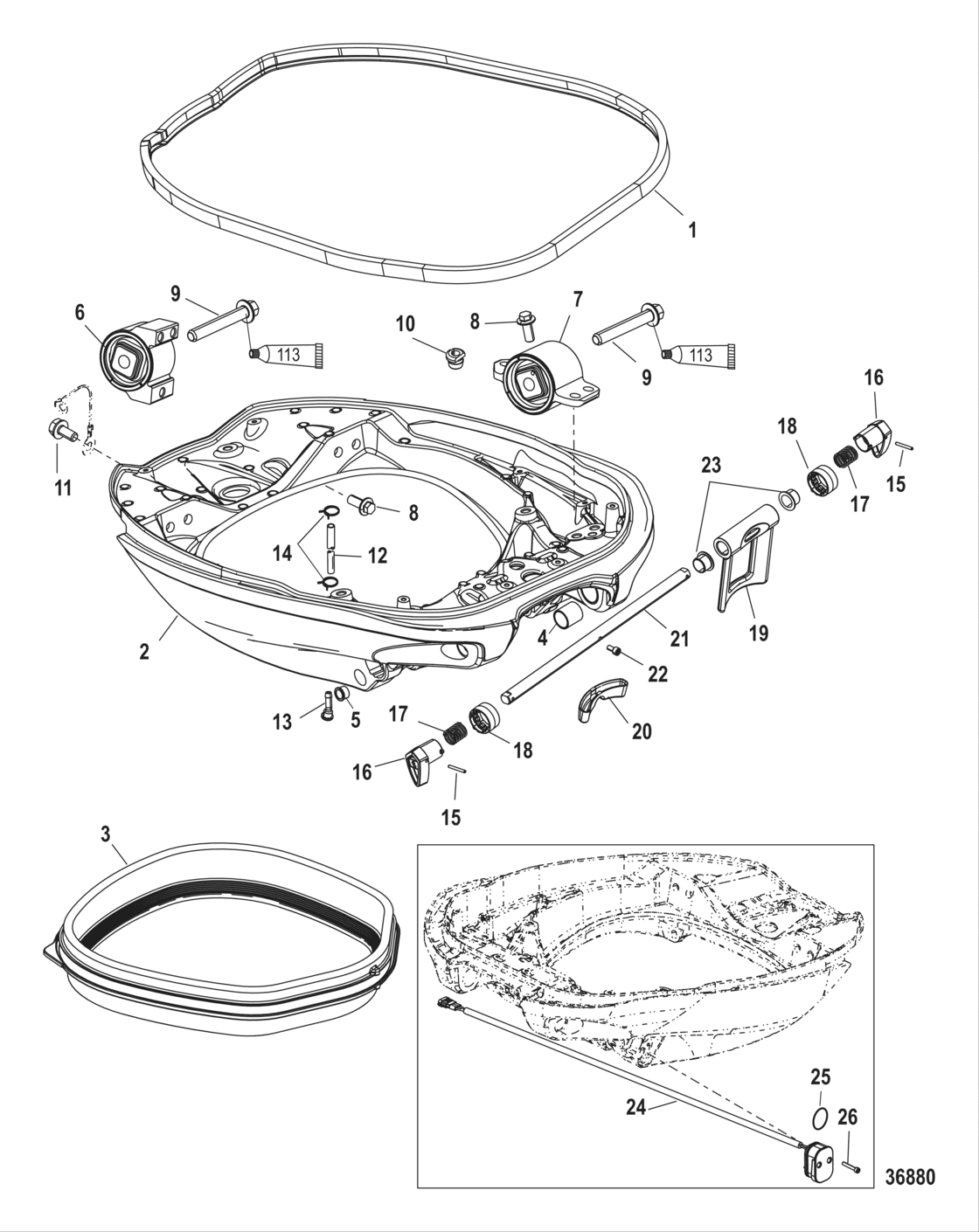

Mount Cradle Diagram Mercury-Mercruiser F350 Verado
- Power
- 350
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 1B716557 THRU 2B143542
- Серия
- SCi
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
885546002 Seal |
885546002 |
US $147.01 |
||
| replacement | |||||
|
1
|
1
8M0109275 RING - SEAL |
8M0109275 |
US $147.01 |
||
|
2
|
2
884887T05 Cradle Mount |
884887T05 |
US $3,501.55 |
||
|
3
|
3
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
4
|
4
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
5
|
5
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
6
|
6
888538T01 Mount Rear |
888538T01 |
US $178.56 |
||
| replacement | |||||
|
6
|
6
8M0103375 Mount Rear |
8M0103375 |
US $178.56 |
||
|
7
|
7
888535T01 Mount Front |
888535T01 |
US $220.67 |
||
| replacement | |||||
|
7
|
7
8M0102452 Mount Front |
8M0102452 |
US $220.67 |
||
|
8
|
8
889745030 Screw |
889745030 |
US $5.79 |
||
|
9
|
9
896531090 Screw |
896531090 |
US $20.06 |
||
| replacement | |||||
|
9
|
9
8M0103832 SCREW |
8M0103832 |
US $20.06 |
||
|
10
|
10
12602002 Grommet |
12602002 |
US $3.94 |
||
|
11
|
11
40011126 Screw, stainless steel |
40011126 |
US $3.25 |
||
|
12
|
12
830756109 Hose, , map sensor |
830756109 |
US $54.61 |
||
| replacement | |||||
|
12
|
12
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches |
8M0108355 |
US $54.61 |
||
|
13
|
13
895797001 Fitting, telltale |
895797001 |
US $3.94 |
||
|
14
|
14
895851 Clamp |
895851 |
US $1.62 |
||
|
15
|
15
73194 Pin, roll |
73194 |
US $3.36 |
||
|
16
|
16
880649002 Lever-tilt lock |
880649002 |
US $9.15 |
||
|
17
|
17
47968 Spring, tension - choke knob and shaft |
47968 |
US $4.99 |
||
|
18
|
18
889540A03 New Genuine Part |
889540A03 |
US $8.58 |
||
|
19
|
19
880651002 New Genuine Part |
880651002 |
US $54.90 |
||
| replacement | |||||
|
19
|
19
8M0109693 BRACKET |
8M0109693 |
US $54.90 |
||
|
20
|
20
889539001
New Genuine Part
|
889539001 |
— | ||
|
21
|
21
880650003 Shaft-tilt lock |
880650003 |
US $48.67 |
||
|
22
|
22
889546 Screw |
889546 |
US $3.14 |
||
|
23
|
23
8806641 Bearing |
8806641 |
US $4.99 |
||
|
24
|
24
8M0010626 Sensor Trim Position-Black |
8M0010626 |
US $227.20 |
||
|
25
|
25
892271 O-Ring |
892271 |
US $2.08 |
||
|
26
|
26
889547 Screw |
889547 |
US $2.43 |
||
