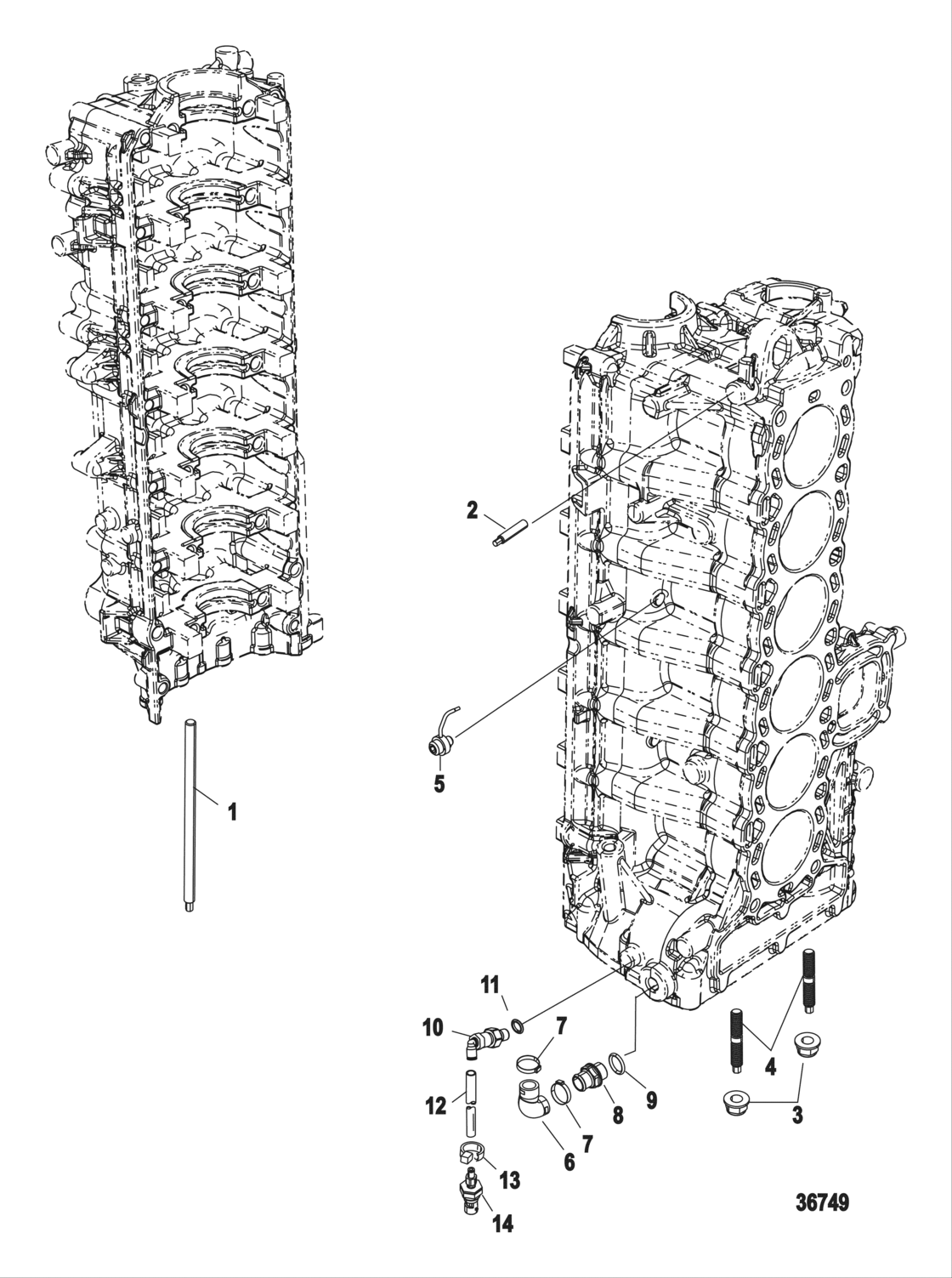

Port Cylinder Block Components Diagram Mercury-Mercruiser F350 Verado
- Power
- 350
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 1B716557 THRU 2B143542
- Серия
- SCi
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
880668001 Stud |
880668001 |
US $22.85 |
||
| replacement | |||||
|
1
|
1
8M0022158 Stud (M10 X 205) |
8M0022158 |
US $22.85 |
||
|
2
|
2
888997001 Stud |
888997001 |
US $7.42 |
||
| replacement | |||||
|
2
|
2
8M0022162 Stud (M10 X 60) |
8M0022162 |
US $7.42 |
||
|
3
|
3
826365 Nut, , nylock |
826365 |
US $5.10 |
||
|
4
|
4
888849001 Stud |
888849001 |
US $5.68 |
||
| replacement | |||||
|
4
|
4
8M0000274 Stud (M8 X 44) |
8M0000274 |
US $5.68 |
||
|
5
|
5
884268T02 Oil Spray Jet |
884268T02 |
US $137.01 |
||
|
6
|
6
885544002 Hose |
885544002 |
US $9.50 |
||
|
7
|
7
888988008 Clamp |
888988008 |
US $4.29 |
||
|
8
|
8
885517A05 Fitting Assembly |
885517A05 |
US $5.79 |
||
|
9
|
9
892077 O-ring |
892077 |
US $1.15 |
||
|
10
|
10
8M0022199 Fitting Assembly |
8M0022199 |
US $41.14 |
||
|
11
|
11
896699 O-ring |
896699 |
US $11.01 |
||
|
12
|
12
85978571 Tubing, |
85978571 |
US $53.68 |
||
|
13
|
13
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
14
|
14
881879T26 Sesnor-presser |
881879T26 |
US $222.11 |
||
|
NI
|
NI
880552A08
Gasket Set Powerhead
|
880552A08 |
— | ||
|
NI
|
NI
895247A08 Long Block Assembly |
895247A08 |
US $22,102.86 |
||
