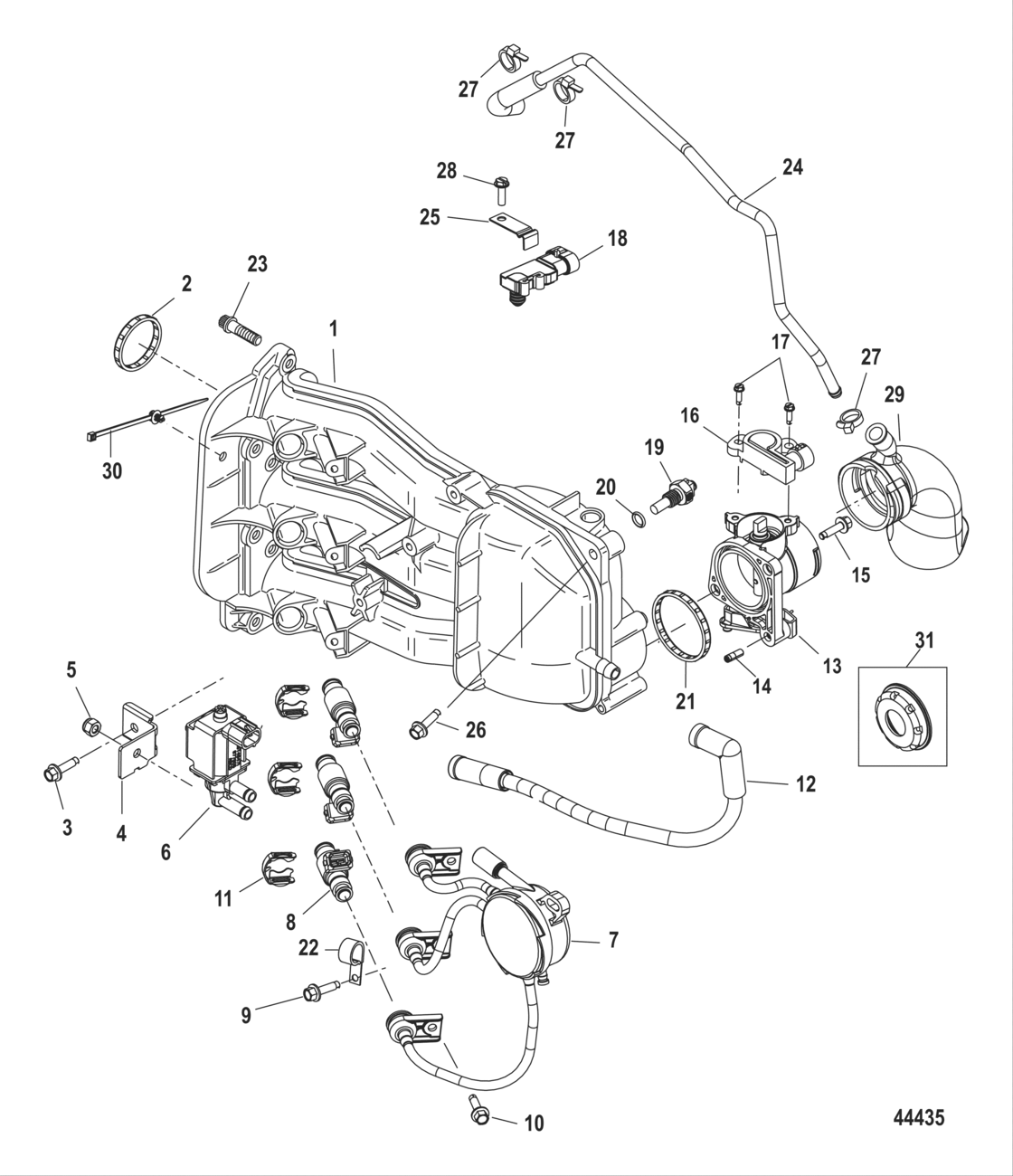

Intake Manifold Diagram Mercury-Mercruiser F40
- Power
- 40
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 1C043417 THRU 1C456299
- Кол-в цилиндров
- 3
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0029463 Manifold Intake |
8M0029463 |
US $178.22 |
||
|
2
|
2
879866 Gasket set(Contains 4 Gaskets) |
879866 |
US $72.32 |
||
|
3
|
3
881059 Screw |
881059 |
US $58.78 |
||
|
4
|
4
877834 New Genuine Part |
877834 |
US $43.33 |
||
|
5
|
5
401366 Nut, stainless steel |
401366 |
US $3.71 |
||
|
6
|
6
877805T New Genuine Part |
877805T |
US $144.96 |
||
|
7
|
7
879886T Tfi system |
879886T |
US $255.55 |
||
|
8
|
8
892123002 INJECTOR |
892123002 |
US $307.36 |
||
|
9
|
9
881059 Screw |
881059 |
US $58.78 |
||
|
10
|
10
881059 Screw |
881059 |
US $58.78 |
||
|
11
|
11
883460 Clip |
883460 |
US $25.89 |
||
|
12
|
12
877831A1 Hose |
877831A1 |
US $48.45 |
||
|
13
|
13
877831A03 New Genuine Part |
877831A03 |
US $307.10 |
||
|
14
|
14
8M0000578 Screw Adjustment |
8M0000578 |
US $8.11 |
||
|
15
|
15
881059 Screw |
881059 |
US $58.78 |
||
|
16
|
16
881070T New Genuine Part |
881070T |
US $125.89 |
||
| replacement | |||||
|
16
|
16
8M0125617 SENSOR |
8M0125617 |
US $125.89 |
||
|
17
|
17
881060 Screw |
881060 |
US $40.46 |
||
|
18
|
18
854445 Sensor (map) |
854445 |
US $158.66 |
||
|
19
|
19
889575 New Genuine Part |
889575 |
US $87.19 |
||
|
20
|
20
627021 O-ring |
627021 |
US $1.82 |
||
|
21
|
21
879867 Gasket |
879867 |
US $63.02 |
||
|
22
|
22
8M0024808 J-Clip |
8M0024808 |
US $2.43 |
||
| replacement | |||||
|
22
|
22
65292 J clip |
65292 |
US $2.43 |
||
|
23
|
23
8248326 Screw |
8248326 |
US $1.50 |
||
|
24
|
24
8M0012378
Hose Assembly Breather
|
8M0012378 |
— | ||
| replacement | |||||
|
24
|
24
8M0115124 Hose Assembly Breather |
8M0115124 |
US $15.34 |
||
|
25
|
25
8M0007495 Retainer |
8M0007495 |
US $6.03 |
||
|
26
|
26
82684430 Screw |
82684430 |
US $3.38 |
||
|
27
|
27
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
28
|
28
8214281 Screw |
8214281 |
US $1.62 |
||
|
29
|
29
893521 New Genuine Part |
893521 |
US $24.99 |
||
|
30
|
30
899145 Clip, tie strap |
899145 |
US $3.01 |
||
|
31
|
31
8M0047979
Restrictor
30 Horsepower |
8M0047979 |
— | ||
| replacement | |||||
|
31
|
31
8831481 New Genuine Part30 Horsepower |
8831481 |
US $3.82 |
||
|
NI
|
NI
878139A07 New Genuine Part |
878139A07 |
US $963.66 |
||
|
NI
|
NI
883597 O-ring kit, injectorUpper |
883597 |
US $61.66 |
||
|
NI
|
NI
883598 O-ring kit, injectorLower |
883598 |
US $36.11 |
||
|
NI
|
NI
859352A02 GASKET SET Mercruiser 27 |
859352A02 |
US $391 |
||
