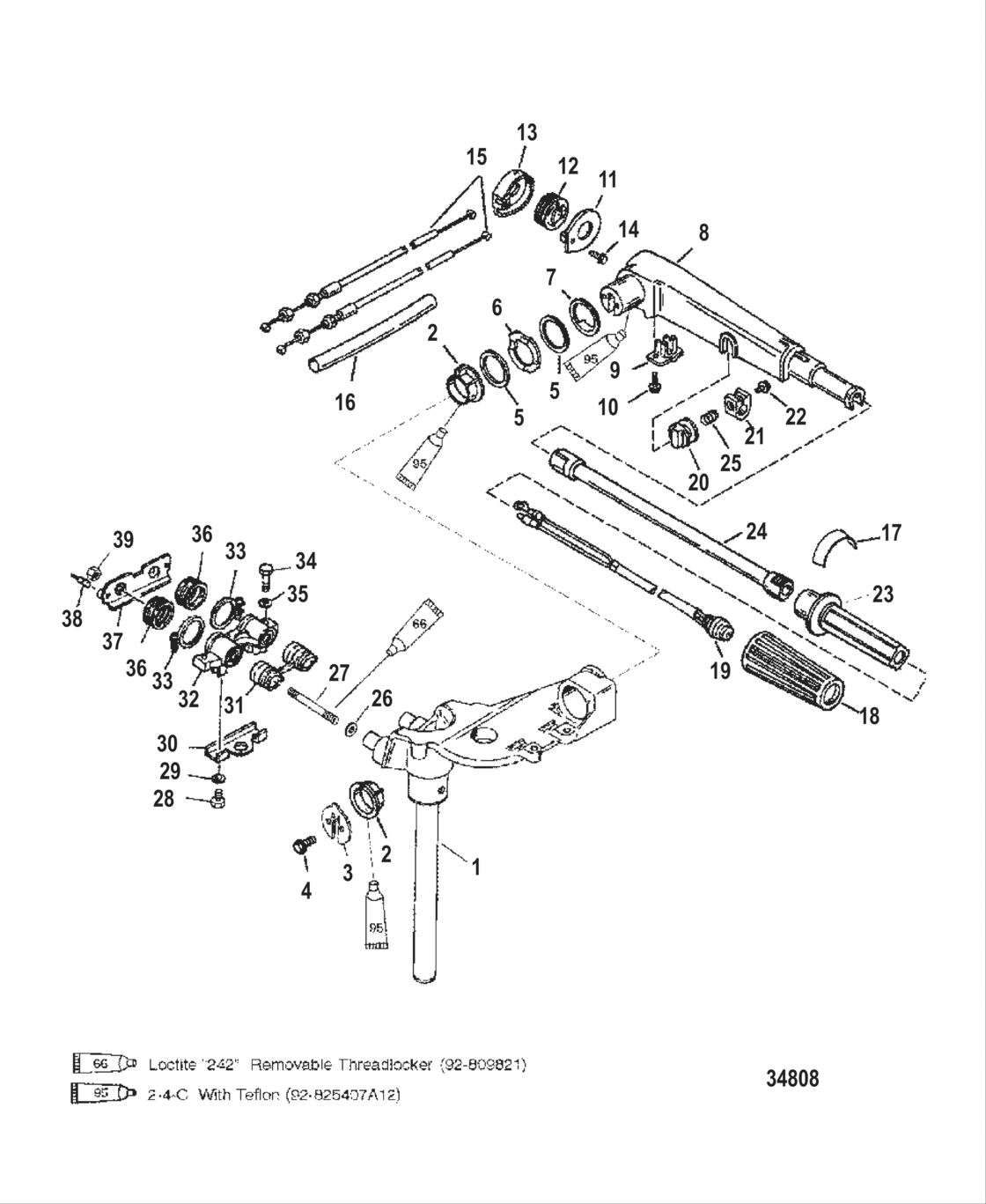

Swivel Head And Steering Handle Diagram Mercury-Mercruiser F8
- Power
- 8
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0H017100 THRU 0H017265
- Серия
- International
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
825551A2
New Genuine Part
|
825551A2 |
— | ||
|
2
|
2
823939 Bushing |
823939 |
US $21.03 |
||
|
3
|
3
826648 New Genuine Part |
826648 |
US $44.11 |
||
|
4
|
4
40011107 Screw, housing to adaptor plate |
40011107 |
US $1.62 |
||
|
5
|
5
822145 Washer |
822145 |
US $2.62 |
||
|
6
|
6
826792 Wave washer |
826792 |
US $9.27 |
||
|
7
|
7
822146 Washer |
822146 |
US $18.85 |
||
|
8
|
8
821468A8 Arm-steering-blk |
821468A8 |
US $125.89 |
||
| replacement | |||||
|
8
|
8
821468A66 Arm-strg. handle |
821468A66 |
US $125.89 |
||
|
9
|
9
822441 New Genuine Part |
822441 |
US $3.01 |
||
|
10
|
10
40011107 Screw, housing to adaptor plate |
40011107 |
US $1.62 |
||
|
11
|
11
822148A5 New Genuine Part |
822148A5 |
US $110.45 |
||
| replacement | |||||
|
11
|
11
822148A3 New Genuine Part |
822148A3 |
US $134.57 |
||
|
12
|
12
822150 New Genuine Part |
822150 |
US $35.44 |
||
|
13
|
13
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
14
|
14
812832 Screw |
812832 |
US $1.50 |
||
| replacement | |||||
|
14
|
14
878608 Screw |
878608 |
US $1.50 |
||
|
15
|
15
432429 New Genuine Part |
432429 |
US $46.67 |
||
| replacement | |||||
|
15
|
15
43242T09 CABLE-THROTTLE |
43242T09 |
US $46.67 |
||
|
16
|
16
9600910 Sleeve |
9600910 |
US $1.28 |
||
|
17
|
17
8242002 Decal |
8242002 |
US $11.39 |
||
|
18
|
18
99589 New Genuine Part |
99589 |
US $23.01 |
||
| replacement | |||||
|
18
|
18
99589003 GRIP |
99589003 |
US $22.10 |
||
|
19
|
19
823609A9 Switch Assembly Stop |
823609A9 |
US $75.10 |
||
| replacement | |||||
|
19
|
19
8M0104613 SWITCH ASSY |
8M0104613 |
US $75.10 |
||
|
20
|
20
821972 Knob-throttle |
821972 |
US $19.01 |
||
| replacement | |||||
|
20
|
20
821972T Knob-throttle |
821972T |
US $15.89 |
||
|
21
|
21
821971 Lock-throttle |
821971 |
US $7.96 |
||
| replacement | |||||
|
21
|
21
892995 Lock-throttle |
892995 |
US $7.58 |
||
|
22
|
22
4000330 Screw, adaptor |
4000330 |
US $4.54 |
||
|
23
|
23
831853
New Genuine Part
|
831853 |
— | ||
|
24
|
24
821463A1 Tiller tube assy |
821463A1 |
US $101.79 |
||
| replacement | |||||
|
24
|
24
821463T01 TUBE-TILLER |
821463T01 |
US $101.79 |
||
|
25
|
25
96203
Spring, pilot control screw
|
96203 |
— | ||
|
26
|
26
4002317
Washer
|
4002317 |
— | ||
|
27
|
27
825552
Stud
|
825552 |
— | ||
|
28
|
28
4000326 Screw |
4000326 |
US $3.60 |
||
|
29
|
29
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
30
|
30
825541
New Genuine Part
|
825541 |
— | ||
|
31
|
31
825547
Seal
|
825547 |
— | ||
|
32
|
32
825540
New Genuine Part
|
825540 |
— | ||
|
33
|
33
825544
New Genuine Part
|
825544 |
— | ||
|
34
|
34
4000354 Screw |
4000354 |
US $4.90 |
||
|
35
|
35
4002317
Washer
|
4002317 |
— | ||
|
36
|
36
825543
Seal
|
825543 |
— | ||
|
37
|
37
825545
New Genuine Part
|
825545 |
— | ||
|
38
|
38
825546
New Genuine Part
|
825546 |
— | ||
|
39
|
39
400265 Nut, carburetor stud |
400265 |
US $4.53 |
||
| replacement | |||||
|
39
|
39
401368 Nut, stainless steel |
401368 |
US $4.53 |
||
|
NI
|
NI
821463A84
New Genuine Part
|
821463A84 |
— | ||
| replacement | |||||
|
NI
|
NI
821463T84
New Genuine Part
|
821463T84 |
— | ||
