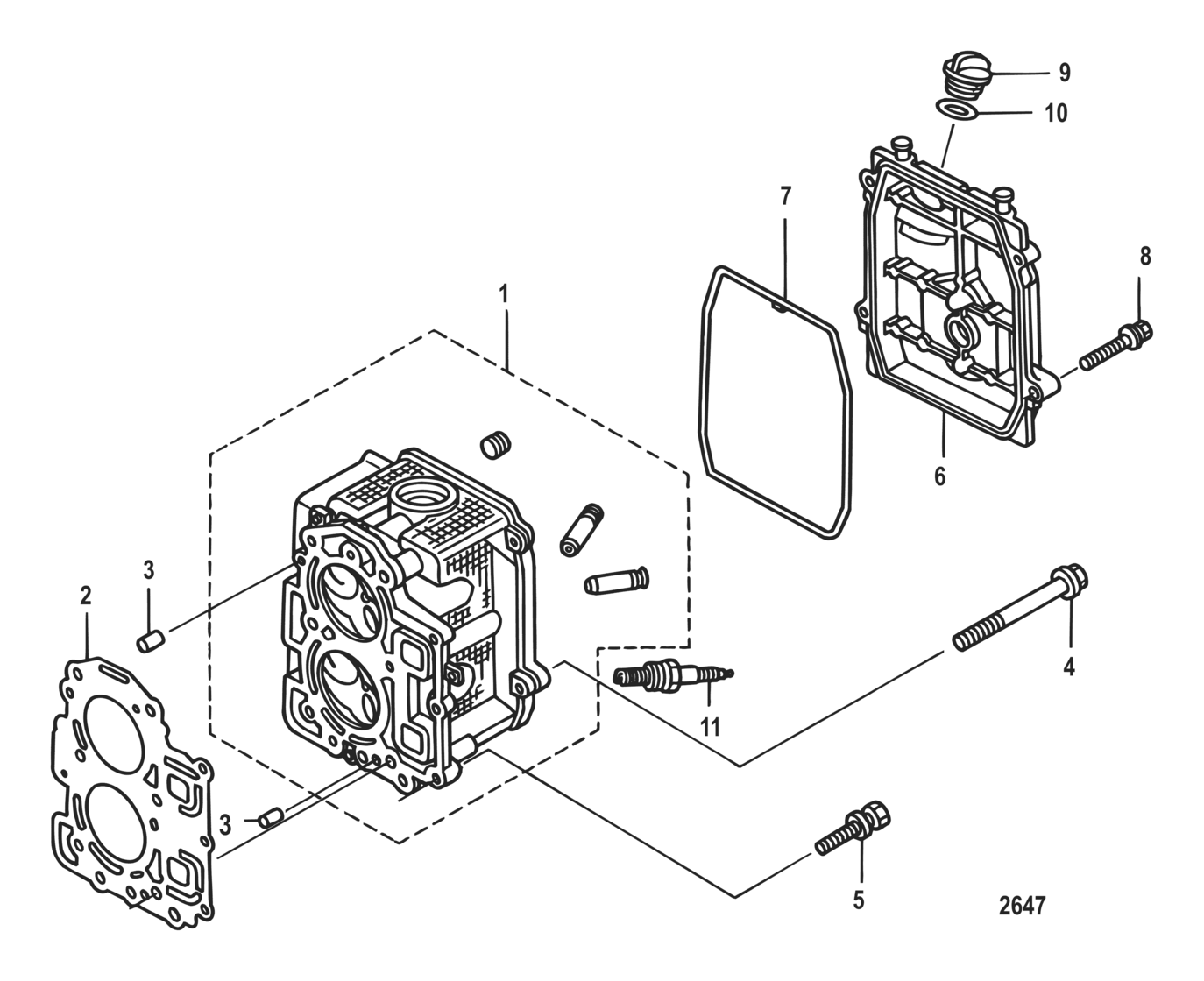

Cylinder Head Diagram Mercury-Mercruiser F8

Engine Capacity
0.209
Power
8
Stroke (2-stroke or 4-stroke)
4 stroke
Country
Belgium
Серийный номер
0P325500 & Up
Кол-в цилиндров
2
Подача топлива
Карбюратор

Difficulties in parts search?

Parts list
Cylinder Head

Difficulties in parts search?

Cylinder Head
Description OEM Part # Price
1
1

835430T03

Cylinder Head Assembly

835430T03

US $592.10

2
2

850836001

Gasket

850836001

US $56

3
3

16119

Pin, dowel

16119

US $6.72

4
4

855677001

Bolt

855677001

US $4.64

replacement
4
4

855677005

Bolt

855677005

US $4.64

5
5

825009026

Bolt

825009026

US $3.82

6
6

834954001

New Genuine Part

Without Decal

834954001

US $99.01

replacement
6
6

834954A01

New Genuine Part

Without Decal

834954A01

US $99.01

6
6

834954A01

New Genuine Part

With Decal

834954A01

US $99.01

7
7

803508017

Gasket, Cylinder Head Cover

803508017

US $12.86

8
8

825702002

Bolt, stainless steel

825702002

US $3.36

replacement
8
8

823042

Bolt

823042

US $3.36

9
9

859578A02

New Genuine Part

859578A02

US $7.18

10
10

803513007

O-ring

803513007

US $2.78

11
11

803507

Spark plug, ngk#dcpr6e

803507

US $11.03

NI
NI
892904009
Decal, oil recommend

892904009

NI
NI

835427A04

Gasket Set Powerhead

835427A04

US $237.10

NI
NI

895188T04

New Genuine Part

[0R139508] & Below

895188T04

US $3,771.42

replacement
NI
NI
8M0046065
Powerhead Assembly

[0R139508] & Below

8M0046065

NI
NI

895188T06

New Genuine Part

[0R139509] THRU [0R310614]

895188T06

US $3,771.42

replacement
NI
NI
8M0046065
Powerhead Assembly

[0R139509] THRU [0R310614]

8M0046065

NI
NI
8M0046065
Powerhead Assembly

[0R310615] & Up

8M0046065

NI
NI

835430T06

Cylinder Head Assembly Complete

[0R139508] & Below

835430T06

US $1,191.79

replacement
NI
NI

835430T07

Cylinder Head Assembly Complete

[0R139508] & Below

835430T07

US $1,191.79

NI
NI

835430T07

Cylinder Head Assembly Complete

[0R139509] & Up

835430T07

US $1,191.79
