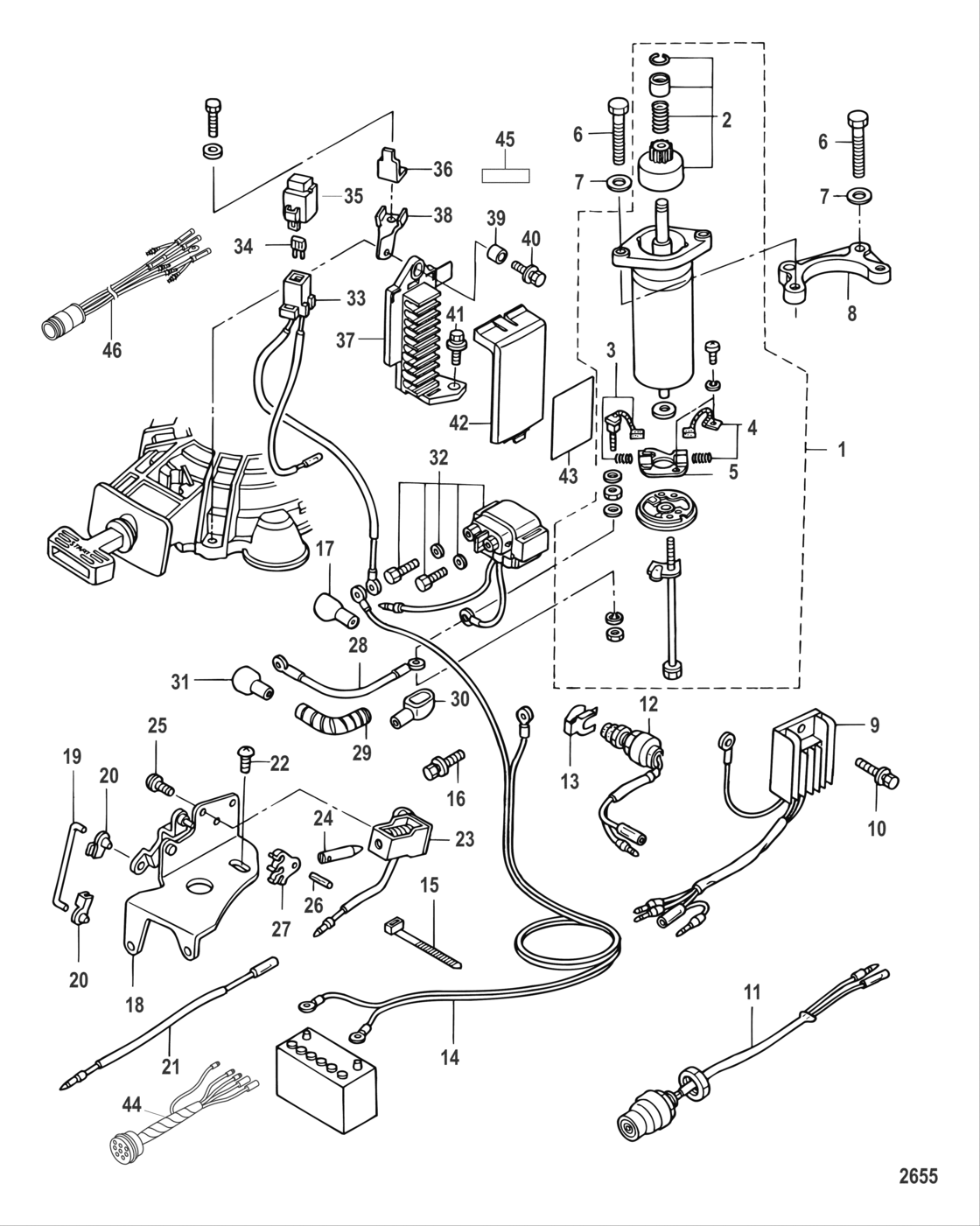

Electrical Components Electric Start Models Diagram Mercury-Mercruiser F8
- Engine Capacity
- 0.209
- Power
- 8
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- Belgium
- Серийный номер
- 0P325500 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
803835T02 Starter Motor Assembly |
803835T02 |
US $627.10 |
||
|
2
|
2
803836 Pinion |
803836 |
US $157.78 |
||
|
3
|
3
803837A02 Brush Kit Positive And Negative |
803837A02 |
US $135.44 |
||
|
4
|
4
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
5
|
5
803838001 Holder, brush |
803838001 |
US $85.92 |
||
|
6
|
6
853531002 Bolt |
853531002 |
US $3.01 |
||
|
7
|
7
895106001 Washer |
895106001 |
US $3.14 |
||
| replacement | |||||
|
7
|
7
16192 Washer |
16192 |
US $3.14 |
||
|
8
|
8
853817001 New Genuine Part |
853817001 |
US $42.45 |
||
| replacement | |||||
|
8
|
8
8M0055575 BRACKET |
8M0055575 |
US $42.45 |
||
|
9
|
9
853811008 RECTIFIER |
853811008 |
US $214 |
||
|
10
|
10
804368 Bolt, stainless steel[0R068397] & Below |
804368 |
US $1.62 |
||
| replacement | |||||
|
10
|
10
8248324 Screw[0R068397] & Below |
8248324 |
US $2.04 |
||
|
10
|
10
8248324 Screw[0R068398] & Up |
8248324 |
US $2.04 |
||
|
11
|
11
853820A02 Switch assembly, start9.9 Electric Handle |
853820A02 |
US $32.69 |
||
|
12
|
12
803840
Switch, neutral
9.9 Electric Handle |
803840 |
— | ||
| replacement | |||||
|
12
|
12
8M0127937 Switch Neutral9.9 Electric Handle |
8M0127937 |
US $74.99 |
||
|
13
|
13
803841 Actuator, neutral switch9.9 Electric Handle |
803841 |
US $14.85 |
||
|
14
|
14
853815A02 Cable Assembly Battery (2000 Mm) |
853815A02 |
US $132 |
||
| replacement | |||||
|
14
|
14
898101T06 Cable Assembly Battery |
898101T06 |
US $132 |
||
|
14
|
14
853815A03 Cable Assembly Battery (2500 Mm)Bigfoot |
853815A03 |
US $132 |
||
| replacement | |||||
|
14
|
14
898101T06 Cable Assembly BatteryBigfoot |
898101T06 |
US $132 |
||
|
15
|
15
816311T Tie Strap (8.00 Inches)9.9 Remote Control |
816311T |
US $0.51 |
||
|
16
|
16
823042041 Bolt |
823042041 |
US $3.94 |
||
| replacement | |||||
|
16
|
16
879194260 BOLT |
879194260 |
US $3.94 |
||
|
17
|
17
853816002 Boot |
853816002 |
US $4.94 |
||
|
18
|
18
895127 New Genuine Part9.9 Remote Control |
895127 |
US $86.90 |
||
|
19
|
19
853747007 New Genuine Part9.9 Remote Control |
853747007 |
US $10.49 |
||
|
20
|
20
853748001 Rod snap9.9 Remote Control |
853748001 |
US $11.03 |
||
|
21
|
21
892770 Cable9.9 Remote Control |
892770 |
US $10.54 |
||
|
22
|
22
16122 Screw9.9 Remote Control |
16122 |
US $3.25 |
||
| replacement | |||||
|
22
|
22
823042067 Screw9.9 Remote Control |
823042067 |
US $3.25 |
||
|
23
|
23
853829A02 New Genuine Part9.9 Remote Control |
853829A02 |
US $138.11 |
||
|
24
|
24
853830 New Genuine Part9.9 Remote Control |
853830 |
US $20.34 |
||
|
25
|
25
162454 Screw9.9 Remote Control |
162454 |
US $3.47 |
||
|
26
|
26
952189 Pin, dowel9.9 Remote Control |
952189 |
US $3.60 |
||
|
27
|
27
853831 New Genuine Part9.9 Remote Control |
853831 |
US $4.40 |
||
|
28
|
28
8538151 Cable assembly, starter |
8538151 |
US $23.31 |
||
| replacement | |||||
|
28
|
28
8M0069818 GROUND CABLE |
8M0069818 |
US $23.31 |
||
|
29
|
29
895108001 Protective sleeve |
895108001 |
US $13.10 |
||
|
30
|
30
853816003 Boot, red, starter motor |
853816003 |
US $5.62 |
||
|
31
|
31
853816004 Boot, red |
853816004 |
US $4.99 |
||
|
32
|
32
853809001 Solenoid, starter |
853809001 |
US $123.20 |
||
|
33
|
33
892778A01 Cable assembly, fuse |
892778A01 |
US $65.44 |
||
|
34
|
34
853814002 Fuse, 20 ampere |
853814002 |
US $6.61 |
||
|
35
|
35
8M0128523 Cap |
8M0128523 |
US $7.33 |
||
|
36
|
36
892779 New Genuine Part |
892779 |
US $3.01 |
||
|
37
|
37
895125 New Genuine Part |
895125 |
US $22.90 |
||
| replacement | |||||
|
37
|
37
8M0070130 HOLDER |
8M0070130 |
US $22.90 |
||
|
38
|
38
892779001 New Genuine Part |
892779001 |
US $6.38 |
||
| replacement | |||||
|
38
|
38
892779002 New Genuine Part |
892779002 |
US $6.38 |
||
|
39
|
39
895126 Collar |
895126 |
US $3.94 |
||
|
40
|
40
82304234 Bolt |
82304234 |
US $3.60 |
||
| replacement | |||||
|
40
|
40
8230427 Bolt |
8230427 |
US $3.71 |
||
|
41
|
41
804368 Bolt, stainless steel[0R068397] & Below |
804368 |
US $1.62 |
||
| replacement | |||||
|
41
|
41
8248324 Screw[0R068397] & Below |
8248324 |
US $2.04 |
||
|
41
|
41
8248324 Screw[0R068398] & Up |
8248324 |
US $2.04 |
||
|
42
|
42
851835001 New Genuine Part |
851835001 |
US $9.74 |
||
| replacement | |||||
|
42
|
42
8M0070126 COVER |
8M0070126 |
US $9.74 |
||
|
43
|
43
895275002 Decal, wiring diagram[0R193508] & Below |
895275002 |
US $5.92 |
||
| replacement | |||||
|
43
|
43
895275003 Decal, wiring diagram[0R193508] & Below |
895275003 |
US $5.92 |
||
|
43
|
43
895275003 Decal, wiring diagram[0R193509] & Up |
895275003 |
US $5.92 |
||
|
44
|
44
895221A01 Harness assembly, electricalRemote Control |
895221A01 |
US $82 |
||
|
45
|
45
892904011 Decal, start in gear |
892904011 |
US $8.35 |
||
|
46
|
46
803884A02 Harness assembly |
803884A02 |
US $161.44 |
||
