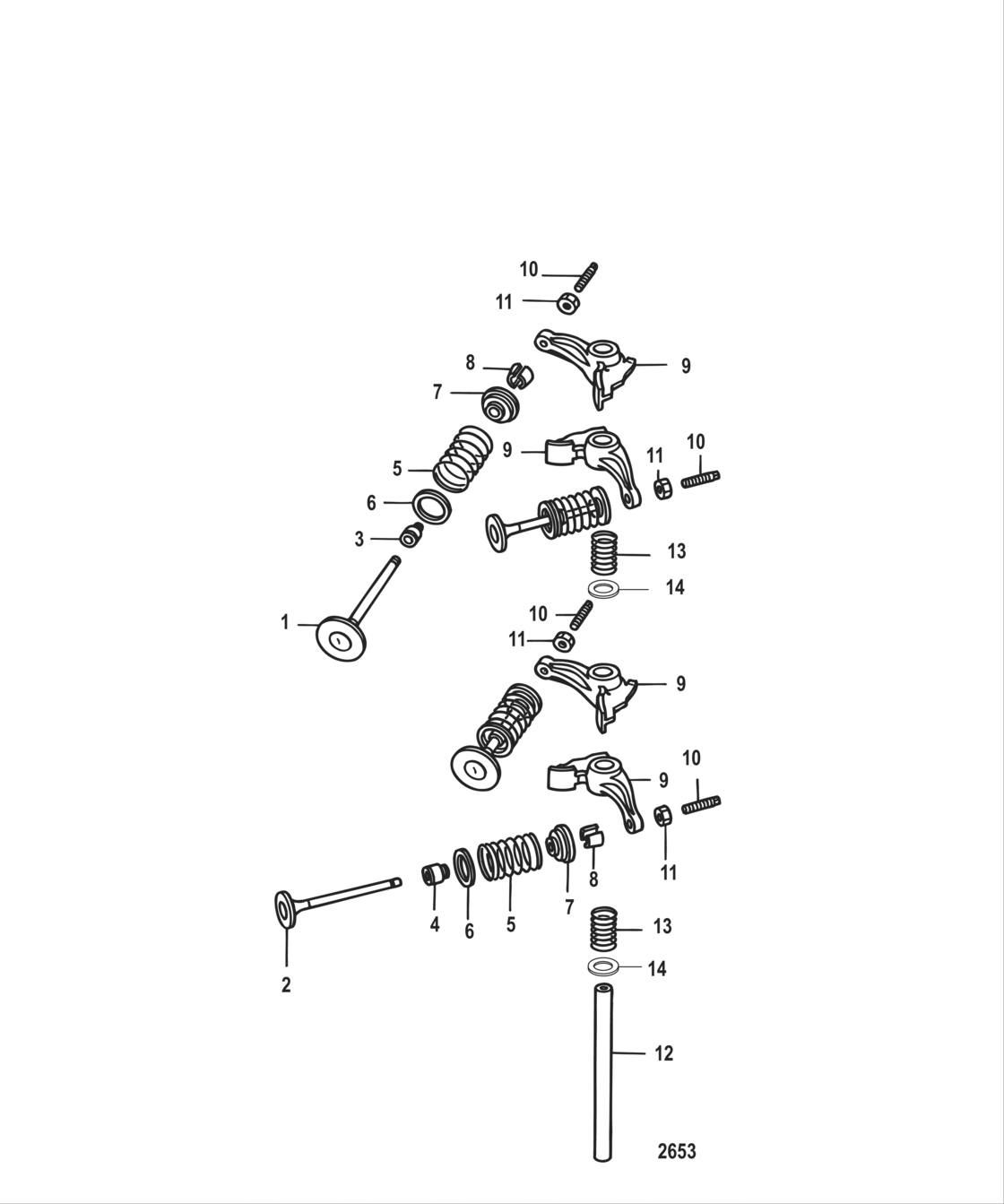

Intake And Exhaust Valves Diagram Mercury-Mercruiser F8
- Engine Capacity
- 0.209
- Power
- 8
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- Belgium
- Серийный номер
- 0P325500 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
850838T01 New Genuine Part |
850838T01 |
US $39.10 |
||
|
2
|
2
850839T01 New Genuine Part |
850839T01 |
US $42.45 |
||
|
3
|
3
822647001 Seal, intake - black, valve stem |
822647001 |
US $8.40 |
||
|
4
|
4
822647002 Seal, exhaust - green, valve stem |
822647002 |
US $8.08 |
||
|
5
|
5
803554005 Spring, valve |
803554005 |
US $10.78 |
||
|
6
|
6
855959001 New Genuine Part |
855959001 |
US $2.90 |
||
|
7
|
7
822650001 New Genuine Part |
822650001 |
US $9.50 |
||
|
8
|
8
803556
Keeper, valve
|
803556 |
— | ||
|
9
|
9
850841002 New Genuine Part |
850841002 |
US $20 |
||
| replacement | |||||
|
9
|
9
8M0081793 ROCKER ARM |
8M0081793 |
US $20 |
||
|
10
|
10
825046001 Screw, adjusting |
825046001 |
US $6.50 |
||
|
11
|
11
826150001 Nut, adjusting |
826150001 |
US $3.71 |
||
|
12
|
12
850842001 Shaft-rocker arm |
850842001 |
US $31.01 |
||
|
13
|
13
825452001 Spring |
825452001 |
US $6.72 |
||
|
14
|
14
895118001 Washer |
895118001 |
US $2.54 |
||
|
NI
|
NI
895188T04 New Genuine Part[0R139508] & Below |
895188T04 |
US $3,771.42 |
||
| replacement | |||||
|
NI
|
NI
8M0046065
Powerhead Assembly
[0R139508] & Below |
8M0046065 |
— | ||
|
NI
|
NI
895188T06 New Genuine Part[0R139509] THRU [0R310614] |
895188T06 |
US $3,771.42 |
||
| replacement | |||||
|
NI
|
NI
8M0046065
Powerhead Assembly
[0R139509] THRU [0R310614] |
8M0046065 |
— | ||
|
NI
|
NI
8M0046065
Powerhead Assembly
[0R310615] & Up |
8M0046065 |
— | ||
|
NI
|
NI
835430T06 Cylinder Head Assembly Complete[0R139508] & Below |
835430T06 |
US $1,191.79 |
||
| replacement | |||||
|
NI
|
NI
835430T07 Cylinder Head Assembly Complete[0R139508] & Below |
835430T07 |
US $1,191.79 |
||
|
NI
|
NI
835430T07 Cylinder Head Assembly Complete[0R139509] & Up |
835430T07 |
US $1,191.79 |
||
