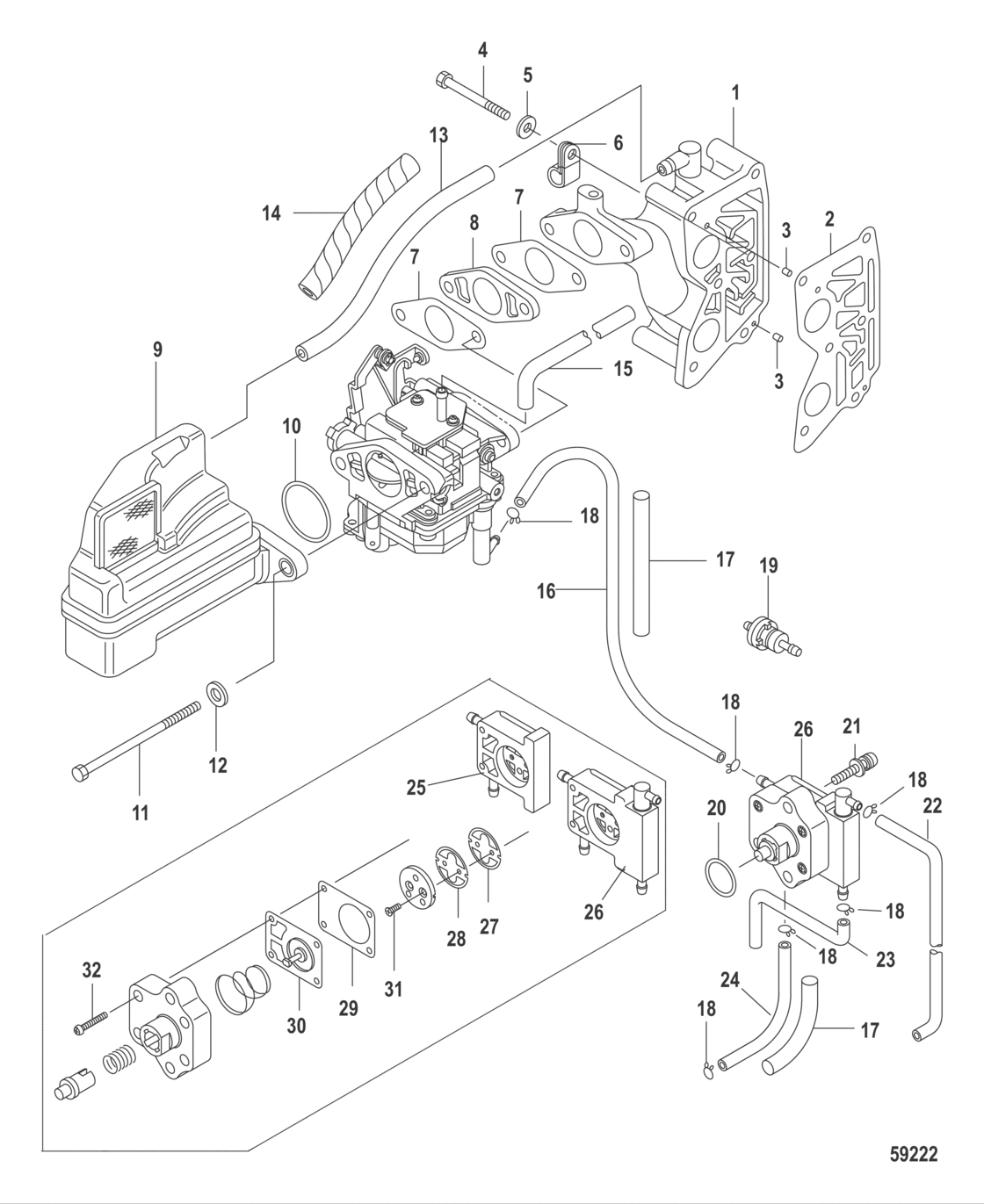

Intake Manifold And Fuel Pump Diagram Mercury-Mercruiser F8
- Engine Capacity
- 0.209
- Power
- 8
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- Belgium
- Серийный номер
- 0P325500 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
835385T01 MANIFOLD, INTAKE |
835385T01 |
US $182.67 |
||
|
2
|
2
853525001 Gasket |
853525001 |
US $9.62 |
||
|
3
|
3
8150263 Cotter pin |
8150263 |
US $3.82 |
||
|
4
|
4
853531001 Bolt |
853531001 |
US $3.71 |
||
|
5
|
5
895106 Washer, stainless steel |
895106 |
US $2.90 |
||
| replacement | |||||
|
5
|
5
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
6
|
6
953951 Clamp |
953951 |
US $8.35 |
||
|
7
|
7
835383001 Gasket, carburetor |
835383001 |
US $4.53 |
||
|
8
|
8
853526001 New Genuine Part |
853526001 |
US $10.78 |
||
|
9
|
9
835386001 New Genuine Part |
835386001 |
US $59.44 |
||
|
10
|
10
825057003 O-ring |
825057003 |
US $3.25 |
||
|
11
|
11
855809 Bolt |
855809 |
US $6.26 |
||
| replacement | |||||
|
11
|
11
8M0100009 BOLT |
8M0100009 |
US $6.26 |
||
|
12
|
12
895106 Washer, stainless steel |
895106 |
US $2.90 |
||
| replacement | |||||
|
12
|
12
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
13
|
13
851848004
Hose, , breather
|
851848004 |
— | ||
|
14
|
14
895108001 Protective sleeveElectric Remote Control |
895108001 |
US $13.10 |
||
|
15
|
15
895109 Hose, overflow |
895109 |
US $13.68 |
||
|
16
|
16
851848005
Hose, , fuel
[0R687320] & Below |
851848005 |
— | ||
|
16
|
16
8M0127687 Hose Fuel[0R687321] & Up |
8M0127687 |
US $13.78 |
||
|
17
|
17
895108 Protective tubing[0R687320] & Below |
895108 |
US $4.64 |
||
|
18
|
18
95395 Clip, stainless steel, fuel line |
95395 |
US $2.67 |
||
|
19
|
19
16248 Filter, fuel |
16248 |
US $29.73 |
||
|
20
|
20
803513 O-ring |
803513 |
US $3.60 |
||
|
21
|
21
8555448 ScrewUse With Design-I Fuel Pump |
8555448 |
US $2.78 |
||
|
21
|
21
855544021 ScrewUse With Design-II Fuel Pump |
855544021 |
US $5.46 |
||
|
22
|
22
95394010
Tubing,
|
95394010 |
— | ||
|
23
|
23
851848010
Tubing, rubber
|
851848010 |
— | ||
|
24
|
24
851848006
Hose, , fuel
[0R687320] & Below |
851848006 |
— | ||
|
24
|
24
8M0127686 Hose Fuel[0R687321] & Up |
8M0127686 |
US $3.89 |
||
|
25
|
25
NSS
Not Sold Separate O-Ring
Design-I, Use 803529T07 |
NSS |
— | ||
|
26
|
26
803529T07 Pump Assembly Fuel-Complete OnlyDesign-II |
803529T07 |
US $243.63 |
||
|
27
|
27
851812003 Check valve, black |
851812003 |
US $14.38 |
||
|
28
|
28
851812004 Check valve, white |
851812004 |
US $8.35 |
||
|
29
|
29
855569003 Gasket |
855569003 |
US $15.31 |
||
|
30
|
30
853731003 New Genuine Part |
853731003 |
US $50.34 |
||
|
31
|
31
895107 Screw |
895107 |
US $2.54 |
||
|
32
|
32
895107001 Screw |
895107001 |
US $3.82 |
||
|
NI
|
NI
835427A04 Gasket Set Powerhead |
835427A04 |
US $237.10 |
||
|
NI
|
NI
851812A01 Diaphragm Kit |
851812A01 |
US $77.33 |
||
