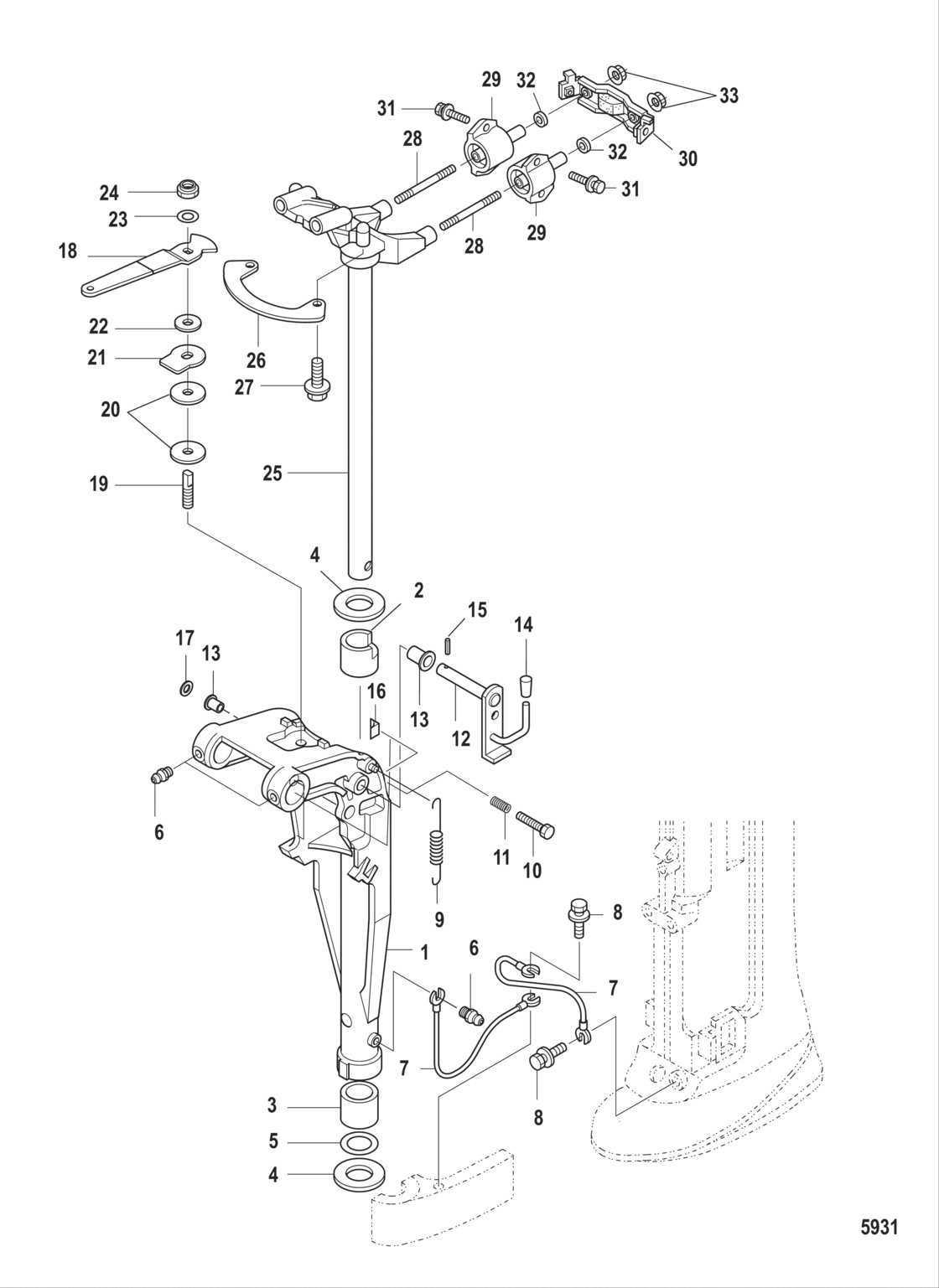

Swivel Bracket Power Tilt Diagram Mercury-Mercruiser F8
- Engine Capacity
- 0.209
- Power
- 8
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- Belgium
- Серийный номер
- 0P325500 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
813029T18 Swivel Bracket |
813029T18 |
US $554.94 |
||
| replacement | |||||
|
1
|
1
813029T25 SWIVEL BRACKET |
813029T25 |
US $554.94 |
||
|
2
|
2
16336009 Bushing, upper |
16336009 |
US $6.26 |
||
|
3
|
3
163363 Bushing |
163363 |
US $7.42 |
||
|
4
|
4
803774 New Genuine Part |
803774 |
US $11.47 |
||
|
5
|
5
161091 O-ring |
161091 |
US $5.46 |
||
|
6
|
6
824969 Fitting, grease |
824969 |
US $7.78 |
||
|
7
|
7
878357 Cable assembly, ground |
878357 |
US $12.64 |
||
| replacement | |||||
|
7
|
7
898101091 Wire, ground |
898101091 |
US $12.64 |
||
|
8
|
8
8230427 Bolt |
8230427 |
US $3.71 |
||
|
9
|
9
95383010 Spring |
95383010 |
US $10.21 |
||
|
10
|
10
823042045 Bolt |
823042045 |
US $5.57 |
||
| replacement | |||||
|
10
|
10
879194254 BOLT |
879194254 |
US $5.57 |
||
|
11
|
11
953831 Spring |
953831 |
US $6.38 |
||
|
12
|
12
815094004 New Genuine Part |
815094004 |
US $63.22 |
||
| replacement | |||||
|
12
|
12
8M0120641 Tilt Stopper |
8M0120641 |
US $63.22 |
||
|
13
|
13
95286027 Collar |
95286027 |
US $4.40 |
||
|
14
|
14
16208
New Genuine Part
|
16208 |
— | ||
|
15
|
15
95218017 Pin, spring |
95218017 |
US $4.29 |
||
|
16
|
16
813026002 New Genuine Part |
813026002 |
US $32.22 |
||
|
17
|
17
168261 Washer |
168261 |
US $4.53 |
||
|
18
|
18
895171 New Genuine Part |
895171 |
US $28.90 |
||
|
19
|
19
895140002 Bolt |
895140002 |
US $14.78 |
||
|
20
|
20
895173 Disc 2 |
895173 |
US $16.78 |
||
|
21
|
21
895146002 Washer |
895146002 |
US $12.86 |
||
|
22
|
22
895146001 Washer |
895146001 |
US $3.71 |
||
|
23
|
23
895106001 Washer |
895106001 |
US $3.14 |
||
| replacement | |||||
|
23
|
23
16192 Washer |
16192 |
US $3.14 |
||
|
24
|
24
95374 Nut, nylon, clamp bracket screw |
95374 |
US $8.35 |
||
|
25
|
25
853770T05 New Genuine Part |
853770T05 |
US $371.66 |
||
|
26
|
26
895172 New Genuine Part |
895172 |
US $12.86 |
||
|
27
|
27
8248324 Screw |
8248324 |
US $2.04 |
||
|
28
|
28
895166 Stud |
895166 |
US $8.69 |
||
| replacement | |||||
|
28
|
28
895166002 STUD |
895166002 |
US $8.69 |
||
|
29
|
29
8M0078458 Upper Mount Set Hd |
8M0078458 |
US $129.89 |
||
|
30
|
30
895167002 New Genuine Part |
895167002 |
US $52.11 |
||
|
31
|
31
823042061 Bolt |
823042061 |
US $3.25 |
||
| replacement | |||||
|
31
|
31
810755007 Bolt |
810755007 |
US $3.25 |
||
|
32
|
32
895106001 Washer |
895106001 |
US $3.14 |
||
| replacement | |||||
|
32
|
32
16192 Washer |
16192 |
US $3.14 |
||
|
33
|
33
853722024 Nut |
853722024 |
US $6.50 |
||
