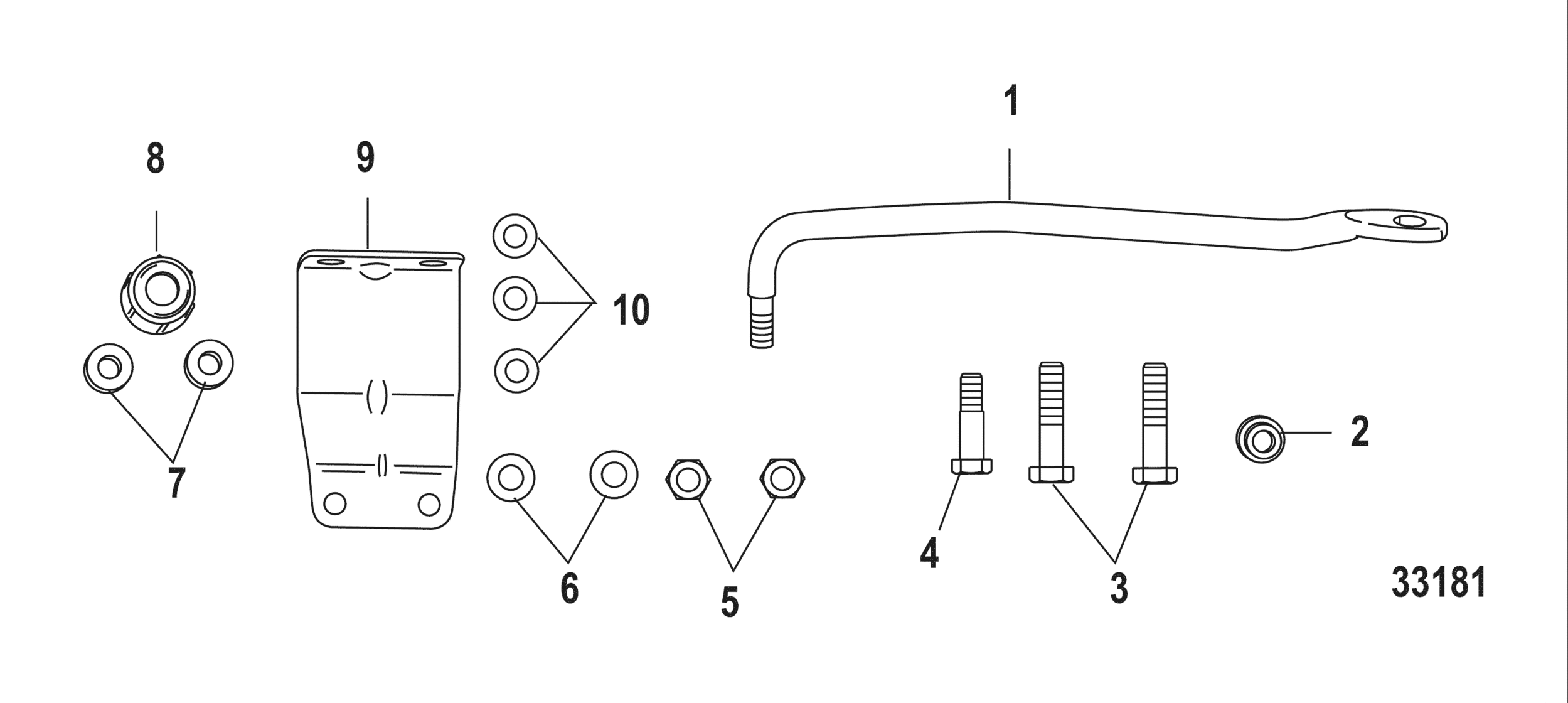

Attaching Kit-Steering Link Rod 17024A03 Diagram Mercury-Mercruiser F9.9
- Engine Capacity
- 0.209
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R042475 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
2
|
2
853826001 Spacer |
853826001 |
US $15.31 |
||
|
3
|
3
804367001 Bolt |
804367001 |
US $8.11 |
||
| replacement | |||||
|
3
|
3
879194311 BOLT |
879194311 |
US $8.11 |
||
|
4
|
4
851866007 Bolt |
851866007 |
US $39.44 |
||
|
5
|
5
161473 Nut, nylon |
161473 |
US $14.14 |
||
|
6
|
6
895141 Washer, stainless steel |
895141 |
US $4.40 |
||
| replacement | |||||
|
6
|
6
879194340 Washer |
879194340 |
US $4.40 |
||
|
7
|
7
95286026 Spacer |
95286026 |
US $22.96 |
||
|
8
|
8
853825 New Genuine Part |
853825 |
US $6.96 |
||
|
9
|
9
17024003 New Genuine Part |
17024003 |
US $63.01 |
||
|
10
|
10
9539210 Washer |
9539210 |
US $4.75 |
||
|
NI
|
NI
17024A03 Kit-str link rod |
17024A03 |
US $263.01 |
||
