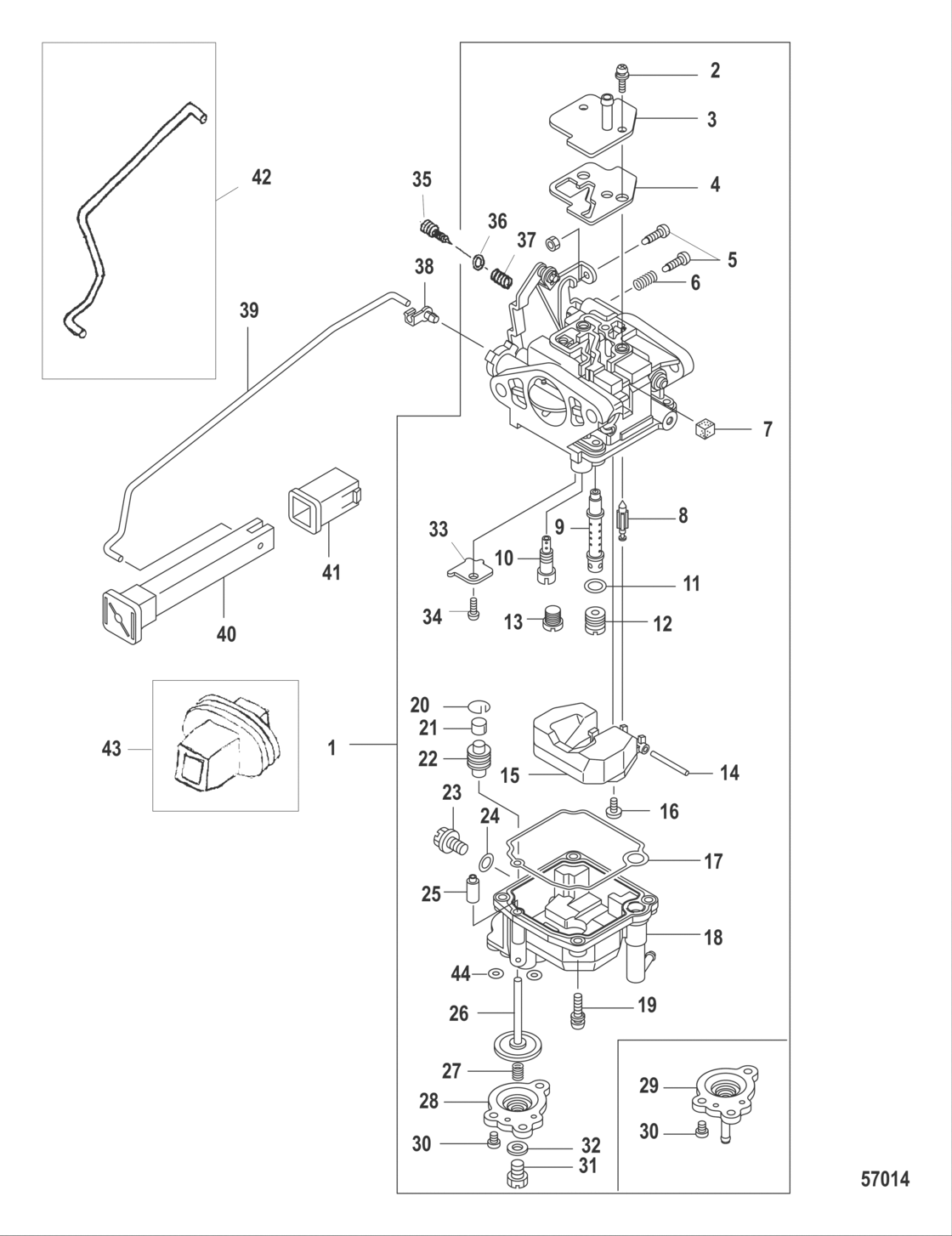

Carburetor 0R676745 And Below Diagram Mercury-Mercruiser F9.9
- Engine Capacity
- 0.209
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R042475 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
895110T01
Carburetor
9.9 Handle (EPA) [0R042475] THRU [0R068397] |
895110T01 |
— | ||
| replacement | |||||
|
1
|
1
895110T11
Carburetor
9.9 Handle (EPA) [0R042475] THRU [0R068397] |
895110T11 |
— | ||
|
1
|
1
895110T11
Carburetor
9.9 Handle (EPA) [0R068398] & Up |
895110T11 |
— | ||
|
1
|
1
895110A03
Carburetor
9.9 Handle (Bodensee) [0P325500] THRU [0P339734] |
895110A03 |
— | ||
| replacement | |||||
|
1
|
1
895110T15
Carburetor
9.9 Handle (Bodensee) [0P325500] THRU [0P339734] |
895110T15 |
— | ||
|
1
|
1
895110A13
Carburetor
9.9 Handle (Bodensee) [0P339735] & Up |
895110A13 |
— | ||
| replacement | |||||
|
1
|
1
895110T15
Carburetor
9.9 Handle (Bodensee) [0P339735] & Up |
895110T15 |
— | ||
|
1
|
1
895110A18
Carburetor
9.9 Handle EU [0P404258] & Below |
895110A18 |
— | ||
| replacement | |||||
|
1
|
1
895110A15
CARBURETOR
9.9 Handle EU [0P404258] & Below |
895110A15 |
— | ||
|
1
|
1
895110T15
Carburetor
9.9 Handle EU [0P404259] & Up |
895110T15 |
— | ||
|
1
|
1
895110T02 Carburetor9.9 Remote [0R042475] THRU [0R068397] |
895110T02 |
US $645.20 |
||
| replacement | |||||
|
1
|
1
8M0108371 Carburetor9.9 Remote [0R042475] THRU [0R068397] |
8M0108371 |
US $645.20 |
||
|
1
|
1
895110T12 Carburetor9.9 Remote [0R068398] & Up |
895110T12 |
US $645.20 |
||
| replacement | |||||
|
1
|
1
8M0108371 Carburetor9.9 Remote [0R068398] & Up |
8M0108371 |
US $645.20 |
||
|
1
|
1
895110A04
Carburetor
9.9 Remote Control [0P325500] THRU [0P400999] |
895110A04 |
— | ||
| replacement | |||||
|
1
|
1
8M0108372
CARBURETOR
9.9 Remote Control [0P325500] THRU [0P400999] |
8M0108372 |
— | ||
|
1
|
1
895110A14
Carburetor
9.9 Remote Control [0P401000] & Up |
895110A14 |
— | ||
| replacement | |||||
|
1
|
1
8M0108372
CARBURETOR
9.9 Remote Control [0P401000] & Up |
8M0108372 |
— | ||
|
1
|
1
895110A19
Carburetor
9.9 Remote Control EU [0P404258] & Below |
895110A19 |
— | ||
| replacement | |||||
|
1
|
1
8M0108372
CARBURETOR
9.9 Remote Control EU [0P404258] & Below |
8M0108372 |
— | ||
|
1
|
1
895110A16
Carburetor
9.9 Remote Control EU [0P404259] & Up |
895110A16 |
— | ||
| replacement | |||||
|
1
|
1
8M0108372
CARBURETOR
9.9 Remote Control EU [0P404259] & Up |
8M0108372 |
— | ||
|
1
|
1
895111T01
Carburetor
8 Handle [0R042475] THRU [0R068397] |
895111T01 |
— | ||
| replacement | |||||
|
1
|
1
895111T05
Carburetor
8 Handle [0R042475] THRU [0R068397] |
895111T05 |
— | ||
|
1
|
1
895111T05
Carburetor
8 Handle [0R068398] & Up |
895111T05 |
— | ||
|
1
|
1
895111A02
Carburetor
8 Handle-Bodensee [0P325500] THRU [0P400999] |
895111A02 |
— | ||
| replacement | |||||
|
1
|
1
895111A06
Carburetor
8 Handle-Bodensee [0P325500] THRU [0P400999] |
895111A06 |
— | ||
|
1
|
1
895111A06
Carburetor
8 Handle-Bodensee [0P401000] & Up |
895111A06 |
— | ||
|
1
|
1
895111A03
Carburetor
8 Remote-Bodensee [0P325500] THRU [0P400999] |
895111A03 |
— | ||
| replacement | |||||
|
1
|
1
895111A07
Carburetor
8 Remote-Bodensee [0P325500] THRU [0P400999] |
895111A07 |
— | ||
|
1
|
1
895111A07
Carburetor
8 Remote-Bodensee [0P401000] & Up |
895111A07 |
— | ||
|
1
|
1
895111A04
Carburetor
8 Handle [0P370093] & Below |
895111A04 |
— | ||
| replacement | |||||
|
1
|
1
895111A06
Carburetor
8 Handle [0P370093] & Below |
895111A06 |
— | ||
|
1
|
1
895111A08
Carburetor
8 Handle [0P370094] & Up |
895111A08 |
— | ||
| replacement | |||||
|
1
|
1
895111A06
Carburetor
8 Handle [0P370094] & Up |
895111A06 |
— | ||
|
2
|
2
809571003 Screw |
809571003 |
US $4.64 |
||
|
3
|
3
855540002 New Genuine Part |
855540002 |
US $24.34 |
||
|
4
|
4
855541003 Gasket |
855541003 |
US $13.22 |
||
|
5
|
5
803509012
Screw, idle adjustment
|
803509012 |
— | ||
|
5
|
5
803509A17 Screw And Spring Kit (18 Mm) |
803509A17 |
US $19.71 |
||
|
6
|
6
16264003 Spring |
16264003 |
US $4.53 |
||
|
6
|
6
162641
Spring
|
162641 |
— | ||
|
7
|
7
895112 Grommet |
895112 |
US $4.86 |
||
| replacement | |||||
|
7
|
7
895112002 GROMMET |
895112002 |
US $4.86 |
||
|
8
|
8
809570002 New Genuine Part |
809570002 |
US $36 |
||
|
9
|
9
802700003 Main nozzle9.9 |
802700003 |
US $56.56 |
||
|
9
|
9
802700008 New Genuine Part9.9 EU [0P404259] & Up |
802700008 |
US $48.22 |
||
|
9
|
9
802700004 Main nozzle8 |
802700004 |
US $47.01 |
||
|
9
|
9
802700007
Main nozzle
Bodensee |
802700007 |
— | ||
|
10
|
10
803689003 Jet, pilot |
803689003 |
US $55.66 |
||
|
10
|
10
803689006
Jet, pilot
Bodensee |
803689006 |
— | ||
|
10
|
10
803689007 New Genuine Part9.9 EU [0P404259] & Up |
803689007 |
US $51.22 |
||
|
11
|
11
825057004 O-ring |
825057004 |
US $6.85 |
||
|
12
|
12
802701004 Jet, main9.9 |
802701004 |
US $22.34 |
||
|
12
|
12
802701009 New Genuine Part9.9 EU [0P404259] & Up |
802701009 |
US $23.01 |
||
|
12
|
12
802701005 Jet, main8 |
802701005 |
US $23.44 |
||
|
12
|
12
802701008
Jet, main
8 Bodensee |
802701008 |
— | ||
|
13
|
13
802702001 Plug9.9 [USA-0R068397/BEL-0P404258] & Below |
802702001 |
US $14.96 |
||
|
13
|
13
802702002 Plug9.9 [USA-0R068398/BEL-0P404259] & Up |
802702002 |
US $16 |
||
|
14
|
14
162561 Pin |
162561 |
US $6.85 |
||
|
15
|
15
162532 New Genuine Part |
162532 |
US $27.22 |
||
|
16
|
16
16196 Screw |
16196 |
US $2.54 |
||
|
17
|
17
802699002 Gasket |
802699002 |
US $10.78 |
||
|
18
|
18
802690004 Float bowlHandle |
802690004 |
US $162.56 |
||
|
18
|
18
802694010 Float bowl9.9 Handle EU [0P404259] & Up |
802694010 |
US $149.33 |
||
|
18
|
18
802690009 Float bowlRemote |
802690009 |
US $187.78 |
||
|
18
|
18
802694011
Float bowl
9.9 Remote EU [0P404259] & Up |
802694011 |
— | ||
| replacement | |||||
|
18
|
18
802694010 Float bowl9.9 Remote EU [0P404259] & Up |
802694010 |
US $149.33 |
||
|
19
|
19
16260 Screw |
16260 |
US $4.29 |
||
|
20
|
20
895113
Ring, retaining
|
895113 |
— | ||
|
21
|
21
895114 Cap |
895114 |
US $5.33 |
||
|
22
|
22
895115 New Genuine Part |
895115 |
US $8.11 |
||
|
23
|
23
809578005 Screw, drain |
809578005 |
US $11.71 |
||
|
24
|
24
802691 Gasket |
802691 |
US $5.10 |
||
|
25
|
25
851812005 Check valve |
851812005 |
US $22.26 |
||
|
26
|
26
853830001 New Genuine Part |
853830001 |
US $57.78 |
||
|
27
|
27
895116 Spring |
895116 |
US $3.82 |
||
|
28
|
28
895117001 New Genuine PartElectric Remote |
895117001 |
US $21.44 |
||
|
29
|
29
895117 New Genuine PartHandle Manual Remote |
895117 |
US $30.78 |
||
|
30
|
30
855544013 Screw |
855544013 |
US $3.14 |
||
|
31
|
31
803509013 Screw, drainElectric Remote |
803509013 |
US $17.97 |
||
|
32
|
32
855567002 GasketElectric Remote |
855567002 |
US $7.18 |
||
|
33
|
33
802705001 Plate |
802705001 |
US $8 |
||
|
34
|
34
851813002 Screw |
851813002 |
US $3.36 |
||
|
35
|
35
803509010 Screw, pilotBodensee |
803509010 |
US $52.90 |
||
|
36
|
36
895132001 O-ringBodensee |
895132001 |
US $6.85 |
||
|
37
|
37
16266004 SpringBodensee |
16266004 |
US $4.64 |
||
|
38
|
38
16333 Rod snap |
16333 |
US $6.89 |
||
|
39
|
39
855561007 New Genuine PartHandle |
855561007 |
US $15.18 |
||
|
40
|
40
855565 New Genuine Part[0R068397] & Below |
855565 |
US $12.18 |
||
| replacement | |||||
|
40
|
40
855565002 New Genuine Part[0R068397] & Below |
855565002 |
US $12.18 |
||
|
40
|
40
855565001 New Genuine Part[0R068398] & Up |
855565001 |
US $12.18 |
||
| replacement | |||||
|
40
|
40
855565002 New Genuine Part[0R068398] & Up |
855565002 |
US $12.18 |
||
|
41
|
41
851858005 BushingHandle |
851858005 |
US $6.61 |
||
|
42
|
42
855561008 New Genuine PartManual Remote |
855561008 |
US $61.66 |
||
| replacement | |||||
|
42
|
42
8M0121496 LINK RODManual Remote |
8M0121496 |
US $61.66 |
||
|
43
|
43
881305007 GrommetManual Remote |
881305007 |
US $55.01 |
||
|
44
|
44
898103224 O-ring |
898103224 |
US $6.34 |
||
|
NI
|
NI
8M0044576 Kit Carb Repair8/9.9 |
8M0044576 |
US $144.11 |
||
