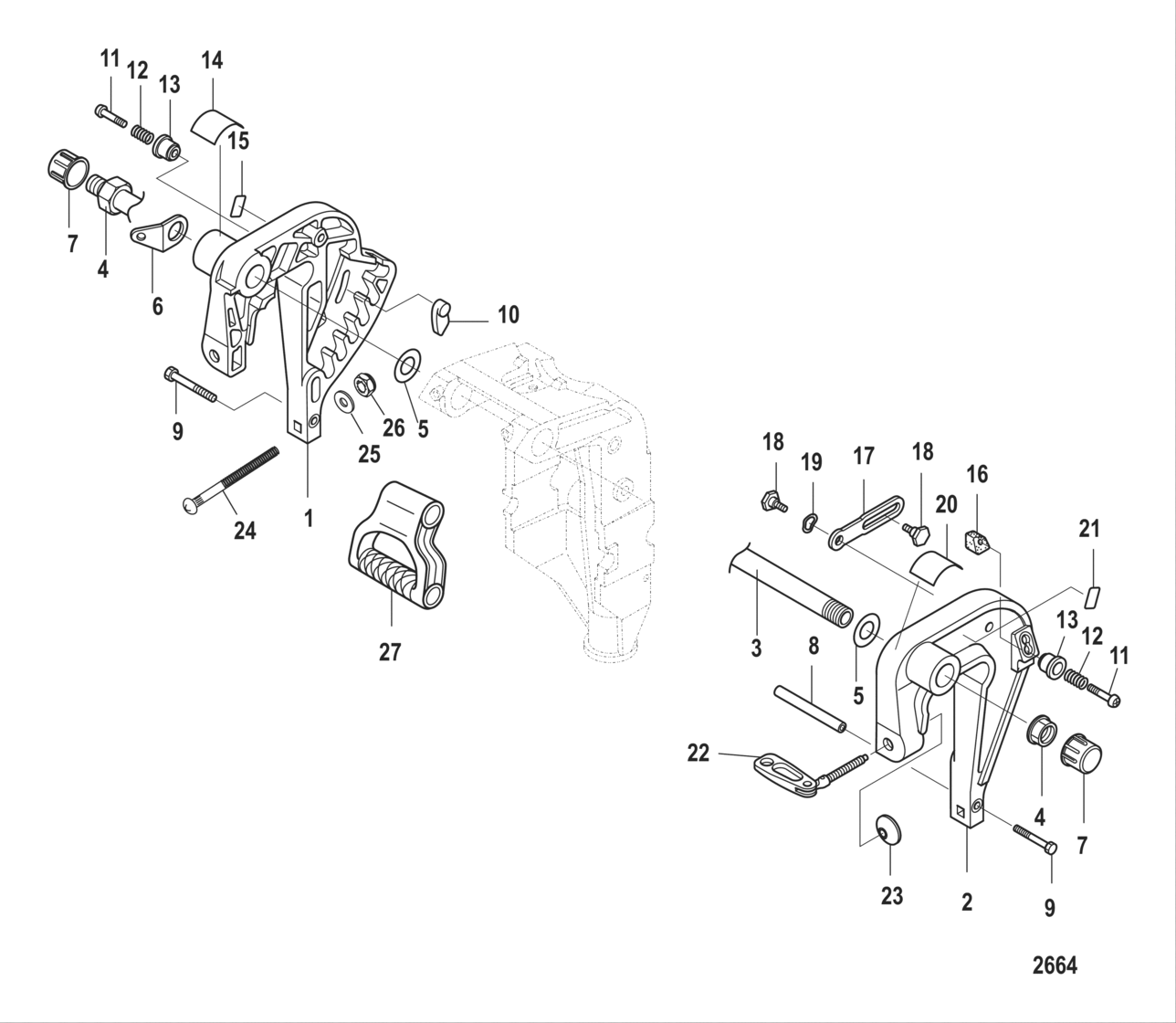

Clamp Brackets Non-Power Tilt Diagram Mercury-Mercruiser F9.9
- Engine Capacity
- 0.209
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R042475 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
815030T02
Clamp bracket, starboard
[0R068397] & Below |
815030T02 |
— | ||
|
1
|
1
815030T06 Clamp Bracket Starboard[0R068398] & Up |
815030T06 |
US $155.44 |
||
|
2
|
2
815031T02
Clamp bracket, port
[0R068397] & Below |
815031T02 |
— | ||
|
2
|
2
815031T06 Clamp Bracket Port[0R068398] & Up |
815031T06 |
US $155.44 |
||
|
3
|
3
853769 New Genuine Part |
853769 |
US $105.66 |
||
| replacement | |||||
|
3
|
3
898101191 New Genuine Part |
898101191 |
US $105.66 |
||
|
4
|
4
85372213 Nut |
85372213 |
US $23.44 |
||
| replacement | |||||
|
4
|
4
853722029 Nut, nylon |
853722029 |
US $31.69 |
||
|
5
|
5
95375001 Washer |
95375001 |
US $9.97 |
||
|
6
|
6
895163 New Genuine Part |
895163 |
US $4.86 |
||
| replacement | |||||
|
6
|
6
895163002 New Genuine Part |
895163002 |
US $4.86 |
||
|
7
|
7
85372214 Cap nutHandle |
85372214 |
US $4.86 |
||
|
8
|
8
803771001 Spacer |
803771001 |
US $24.69 |
||
|
9
|
9
82304222 Bolt, stainless steel |
82304222 |
US $2.45 |
||
| replacement | |||||
|
9
|
9
8M0102279 Bolt |
8M0102279 |
US $2.45 |
||
|
10
|
10
895164 New Genuine Part |
895164 |
US $9.28 |
||
|
11
|
11
855544015 Screw |
855544015 |
US $3.71 |
||
|
12
|
12
813028004 Spring |
813028004 |
US $9.15 |
||
|
13
|
13
815096001 New Genuine Part |
815096001 |
US $7.78 |
||
|
14
|
14
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
15
|
15
128671 Decal, lower tilt limit |
128671 |
US $1.04 |
||
|
16
|
16
895165 New Genuine Part |
895165 |
US $9.97 |
||
|
17
|
17
895169 New Genuine Part |
895169 |
US $15.89 |
||
|
18
|
18
895170 Bolt |
895170 |
US $8.46 |
||
|
19
|
19
8537232 Wave washer |
8537232 |
US $3.60 |
||
|
20
|
20
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
21
|
21
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
22
|
22
804042A02
Thumb screw assembly
|
804042A02 |
— | ||
| replacement | |||||
|
22
|
22
8M0054653
ORD 10-8M0060117
|
8M0054653 |
— | ||
|
23
|
23
95379
Pad, thumb screw
|
95379 |
— | ||
|
24
|
24
43216 Bolt, clamp to transomStandard/Bigfoot Non Trim |
43216 |
US $4.75 |
||
|
25
|
25
67983 Washer, clamp bracket screwStandard/Bigfoot Non Trim |
67983 |
US $2.78 |
||
|
26
|
26
8267118 NutStandard/Bigfoot Non Trim |
8267118 |
US $3.54 |
||
|
27
|
27
815082002 Handle-carrying |
815082002 |
US $39.75 |
||
|
NI
|
NI
92729A49 Hardware kit, transom mountingStandard/Bigfoot Non Trim |
92729A49 |
US $21.44 |
||
