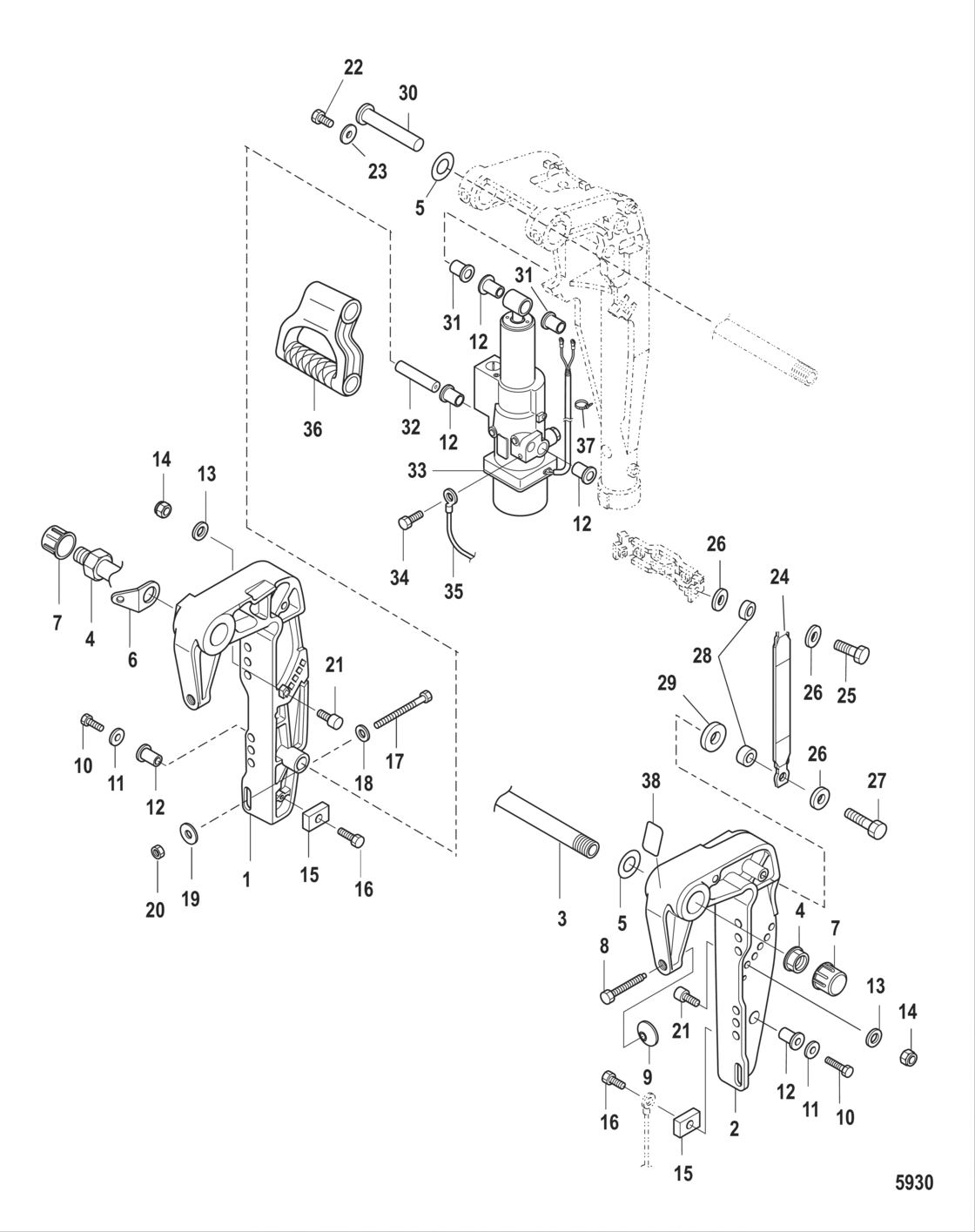

Clamp Brackets Power Tilt Diagram Mercury-Mercruiser F9.9
- Engine Capacity
- 0.209
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R042475 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
815030T03 Clamp Bracket Starboard[0R068397] & Below |
815030T03 |
US $279.01 |
||
| replacement | |||||
|
1
|
1
815030T05 Clamp Bracket Starboard[0R068397] & Below |
815030T05 |
US $317.61 |
||
|
1
|
1
815030T04 Clamp Bracket Starboard[0R068398] & Up |
815030T04 |
US $279.01 |
||
| replacement | |||||
|
1
|
1
815030T05 Clamp Bracket Starboard[0R068398] & Up |
815030T05 |
US $317.61 |
||
|
2
|
2
815031T03 Clamp Bracket Port |
815031T03 |
US $338.56 |
||
|
3
|
3
853769 New Genuine Part |
853769 |
US $105.66 |
||
| replacement | |||||
|
3
|
3
898101191 New Genuine Part |
898101191 |
US $105.66 |
||
|
4
|
4
85372213 Nut |
85372213 |
US $23.44 |
||
| replacement | |||||
|
4
|
4
853722029 Nut, nylon |
853722029 |
US $31.69 |
||
|
5
|
5
95375001 Washer |
95375001 |
US $9.97 |
||
|
6
|
6
895163 New Genuine Part |
895163 |
US $4.86 |
||
| replacement | |||||
|
6
|
6
895163002 New Genuine Part |
895163002 |
US $4.86 |
||
|
7
|
7
85372214 Cap nut |
85372214 |
US $4.86 |
||
|
8
|
8
162635
Clamp screw
|
162635 |
— | ||
|
9
|
9
95379
Pad, thumb screw
|
95379 |
— | ||
|
10
|
10
823042062 Bolt |
823042062 |
US $2.54 |
||
| replacement | |||||
|
10
|
10
879194253 Bolt |
879194253 |
US $2.54 |
||
|
11
|
11
95375 Washer, clamp bracket screw |
95375 |
US $3.94 |
||
|
12
|
12
16176008 Bushing |
16176008 |
US $7.65 |
||
|
13
|
13
853701 Washer |
853701 |
US $4.53 |
||
| replacement | |||||
|
13
|
13
8M0135942 Washer |
8M0135942 |
US $4.53 |
||
|
14
|
14
95374001 Nut, nylon |
95374001 |
US $12.29 |
||
|
15
|
15
875208 New Genuine Part |
875208 |
US $10.34 |
||
|
16
|
16
8248324 Screw |
8248324 |
US $2.04 |
||
|
17
|
17
823042063 Bolt |
823042063 |
US $4.29 |
||
| replacement | |||||
|
17
|
17
8M0094877 Screw (8 X 85Mm |
8M0094877 |
US $4.29 |
||
|
18
|
18
895106001 Washer |
895106001 |
US $3.14 |
||
| replacement | |||||
|
18
|
18
16192 Washer |
16192 |
US $3.14 |
||
|
19
|
19
16140012 Washer |
16140012 |
US $8.69 |
||
|
20
|
20
853722023 Nut |
853722023 |
US $3.01 |
||
| replacement | |||||
|
20
|
20
879194337 Nut |
879194337 |
US $3.01 |
||
|
21
|
21
815051001 Pin, trim lock |
815051001 |
US $36.78 |
||
|
22
|
22
823042038 Bolt |
823042038 |
US $6.68 |
||
| replacement | |||||
|
22
|
22
879194248 Bolt |
879194248 |
US $5.46 |
||
|
23
|
23
16238 Washer |
16238 |
US $6.72 |
||
| replacement | |||||
|
23
|
23
898101937 Washer |
898101937 |
US $6.72 |
||
|
24
|
24
896297 New Genuine Part[0R05813] & Below |
896297 |
US $32.56 |
||
| replacement | |||||
|
24
|
24
896297001 New Genuine Part[0R05813] & Below |
896297001 |
US $32.56 |
||
|
24
|
24
896297001 New Genuine Part[0R058514] & Up |
896297001 |
US $32.56 |
||
|
25
|
25
16832 Bolt |
16832 |
US $3.82 |
||
|
26
|
26
895118002 Washer |
895118002 |
US $4.86 |
||
| replacement | |||||
|
26
|
26
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
27
|
27
823042039 Bolt |
823042039 |
US $3.47 |
||
| replacement | |||||
|
27
|
27
4000330 Screw, adaptor |
4000330 |
US $4.54 |
||
|
28
|
28
855545003 Collar |
855545003 |
US $6.72 |
||
|
29
|
29
16238 Washer |
16238 |
US $6.72 |
||
| replacement | |||||
|
29
|
29
898101937 Washer |
898101937 |
US $6.72 |
||
|
30
|
30
851874002 Pin, cylinder, upper |
851874002 |
US $27.08 |
||
| replacement | |||||
|
30
|
30
8M0091498 Pin Cylinder |
8M0091498 |
US $22.03 |
||
|
31
|
31
16176009 Bushing |
16176009 |
US $7.94 |
||
|
32
|
32
851874003 Pin, cylinder-lower |
851874003 |
US $31.65 |
||
| replacement | |||||
|
32
|
32
851874005 Pin |
851874005 |
US $31.65 |
||
|
33
|
33
896298T01 New Genuine Part |
896298T01 |
US $1,564.05 |
||
|
34
|
34
8230427 Bolt |
8230427 |
US $3.71 |
||
|
35
|
35
8537401 Ground wire |
8537401 |
US $12.06 |
||
| replacement | |||||
|
35
|
35
898101089 Wire, ground |
898101089 |
US $12.06 |
||
|
36
|
36
815082002 Handle-carrying |
815082002 |
US $39.75 |
||
|
37
|
37
95332001 Band, use where applicable[0R054604] & Below |
95332001 |
US $0.35 |
||
| replacement | |||||
|
37
|
37
56762 New Genuine Part[0R054604] & Below |
56762 |
US $0.35 |
||
|
37
|
37
815044001 Band[0R054605] & Up |
815044001 |
US $1.74 |
||
| replacement | |||||
|
37
|
37
69356 Tie strap,[0R054605] & Up |
69356 |
US $1.74 |
||
|
38
|
38
823701004 Decal, co-pilot |
823701004 |
US $6.96 |
||
|
NI
|
NI
896297A01 Kicker strap kitBigfoot |
896297A01 |
US $118.56 |
||
