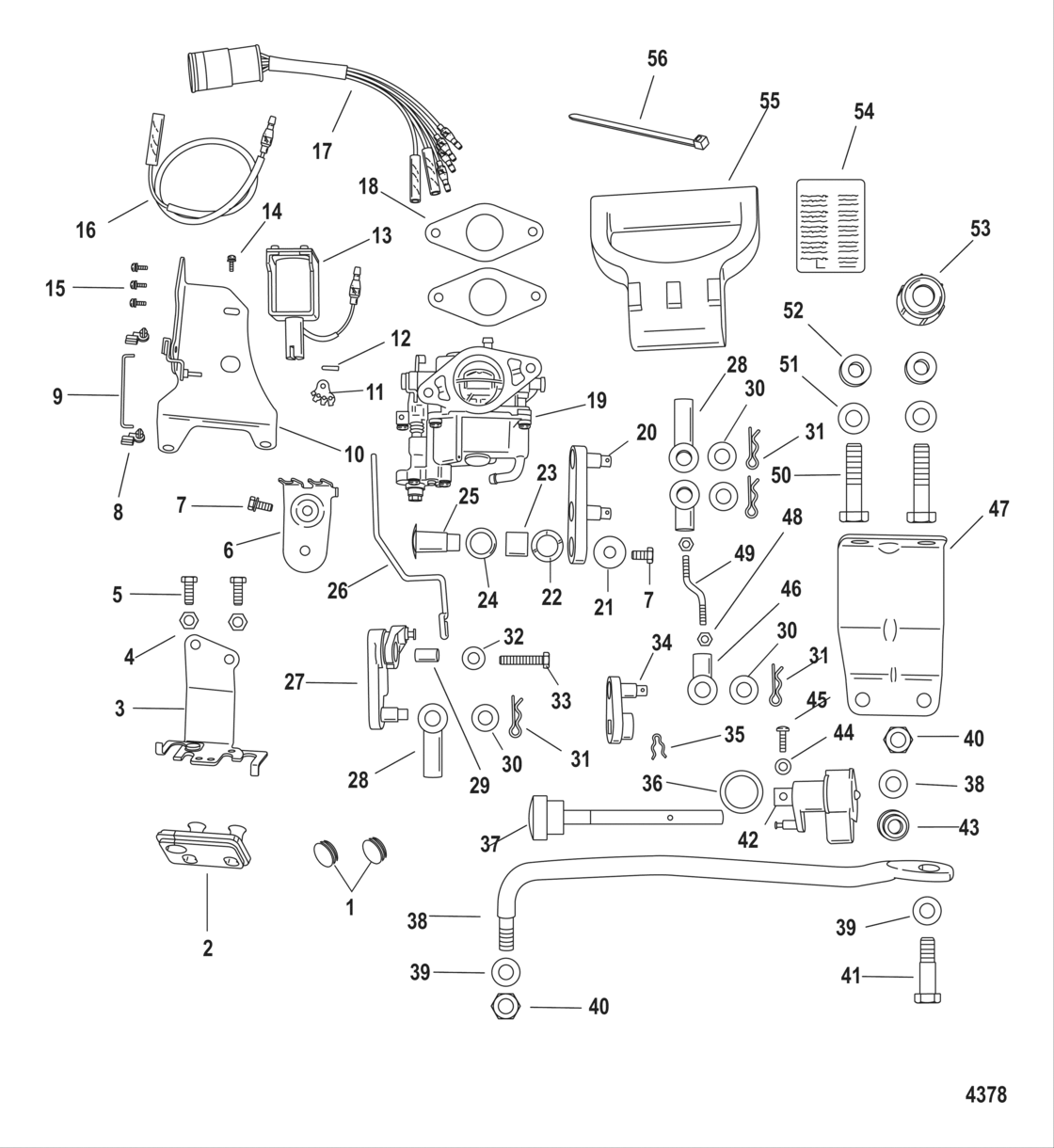

Conversion Kit 895284A01 Diagram Mercury-Mercruiser F9.9
- Engine Capacity
- 0.209
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R042475 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16226 Grommet |
16226 |
US $7.07 |
||
|
2
|
2
895175001 Grommet |
895175001 |
US $9.97 |
||
|
3
|
3
803875001 Bracket |
803875001 |
US $40.34 |
||
|
4
|
4
853722022 Nut |
853722022 |
US $2.90 |
||
|
5
|
5
823042037 Bolt |
823042037 |
US $3.82 |
||
| replacement | |||||
|
5
|
5
16832 Bolt |
16832 |
US $3.82 |
||
|
6
|
6
853739003 New Genuine Part |
853739003 |
US $17.15 |
||
|
7
|
7
82304234 Bolt |
82304234 |
US $3.60 |
||
| replacement | |||||
|
7
|
7
8230427 Bolt |
8230427 |
US $3.71 |
||
|
8
|
8
853748001 Rod snap |
853748001 |
US $11.03 |
||
|
9
|
9
853747007 New Genuine Part |
853747007 |
US $10.49 |
||
|
10
|
10
895127 New Genuine Part |
895127 |
US $86.90 |
||
|
11
|
11
853831 New Genuine Part |
853831 |
US $4.40 |
||
|
12
|
12
952189 Pin, dowel |
952189 |
US $3.60 |
||
|
13
|
13
853829A02 New Genuine Part |
853829A02 |
US $138.11 |
||
|
14
|
14
16122 Screw |
16122 |
US $3.25 |
||
| replacement | |||||
|
14
|
14
823042067 Screw |
823042067 |
US $3.25 |
||
|
15
|
15
162454 Screw |
162454 |
US $3.47 |
||
|
16
|
16
892770 Cable |
892770 |
US $10.54 |
||
|
17
|
17
895221A01 Harness assembly, electrical |
895221A01 |
US $82 |
||
|
18
|
18
835383001 Gasket, carburetor |
835383001 |
US $4.53 |
||
|
19
|
19
895110T02 Carburetor |
895110T02 |
US $645.20 |
||
| replacement | |||||
|
19
|
19
8M0108371 Carburetor |
8M0108371 |
US $645.20 |
||
|
20
|
20
892773 New Genuine Part |
892773 |
US $13.24 |
||
|
21
|
21
161404 Washer |
161404 |
US $3.71 |
||
|
22
|
22
16221 Wave washer |
16221 |
US $3.14 |
||
|
23
|
23
16220 Bushing |
16220 |
US $5.79 |
||
|
24
|
24
16219 Seal |
16219 |
US $5.57 |
||
|
25
|
25
17640001 Shoulder screw |
17640001 |
US $50.34 |
||
|
26
|
26
803574001 New Genuine Part |
803574001 |
US $17 |
||
|
27
|
27
804892001 Throttle drum |
804892001 |
US $10.90 |
||
|
28
|
28
8537452 New Genuine Part |
8537452 |
US $6.96 |
||
| replacement | |||||
|
28
|
28
8M0079131 Socket |
8M0079131 |
US $8.62 |
||
|
29
|
29
8537154 Spacer |
8537154 |
US $4.64 |
||
|
30
|
30
953925 Washer |
953925 |
US $7.82 |
||
|
31
|
31
8150262 Cotter pin |
8150262 |
US $5.66 |
||
|
32
|
32
953925 Washer |
953925 |
US $7.82 |
||
|
33
|
33
823042044 Bolt |
823042044 |
US $4.48 |
||
| replacement | |||||
|
33
|
33
8M0124428 Bolt |
8M0124428 |
US $4.40 |
||
|
34
|
34
803763002 Lever, shift |
803763002 |
US $19.14 |
||
|
35
|
35
851863 Clip |
851863 |
US $4.18 |
||
|
36
|
36
16219003 Seal |
16219003 |
US $4.53 |
||
|
37
|
37
851865001 New Genuine Part |
851865001 |
US $13.46 |
||
| replacement | |||||
|
37
|
37
851865003 New Genuine Part |
851865003 |
US $13.46 |
||
|
38
|
38
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
39
|
39
9539210 Washer |
9539210 |
US $4.75 |
||
|
40
|
40
161473 Nut, nylon |
161473 |
US $14.14 |
||
|
41
|
41
851866007 Bolt |
851866007 |
US $39.44 |
||
|
42
|
42
803768003 Shift detent |
803768003 |
US $13.46 |
||
|
43
|
43
853826001 Spacer |
853826001 |
US $15.31 |
||
|
44
|
44
16335 Washer |
16335 |
US $2.84 |
||
|
45
|
45
855544014 Screw |
855544014 |
US $3.01 |
||
|
46
|
46
892775 Cable joint |
892775 |
US $5.10 |
||
|
47
|
47
17024003 New Genuine Part |
17024003 |
US $63.01 |
||
|
48
|
48
8537225 Nut |
8537225 |
US $4.99 |
||
| replacement | |||||
|
48
|
48
16081 Nut, stainless steel |
16081 |
US $4.99 |
||
|
49
|
49
892774 Rod-shift lever |
892774 |
US $13.79 |
||
|
50
|
50
804367001 Bolt |
804367001 |
US $8.11 |
||
| replacement | |||||
|
50
|
50
879194311 BOLT |
879194311 |
US $8.11 |
||
|
51
|
51
895141 Washer, stainless steel |
895141 |
US $4.40 |
||
| replacement | |||||
|
51
|
51
879194340 Washer |
879194340 |
US $4.40 |
||
|
52
|
52
95286026 Spacer |
95286026 |
US $22.96 |
||
|
53
|
53
853825 New Genuine Part |
853825 |
US $6.96 |
||
|
54
|
54
895275 Decal, wiring diagram |
895275 |
US $7.07 |
||
|
55
|
55
815082002 Handle-carrying |
815082002 |
US $39.75 |
||
|
56
|
56
95332001 Band, use where applicable |
95332001 |
US $0.35 |
||
| replacement | |||||
|
56
|
56
56762 New Genuine Part |
56762 |
US $0.35 |
||
|
NI
|
NI
895284A01 New Genuine Part |
895284A01 |
US $1,110.58 |
||
