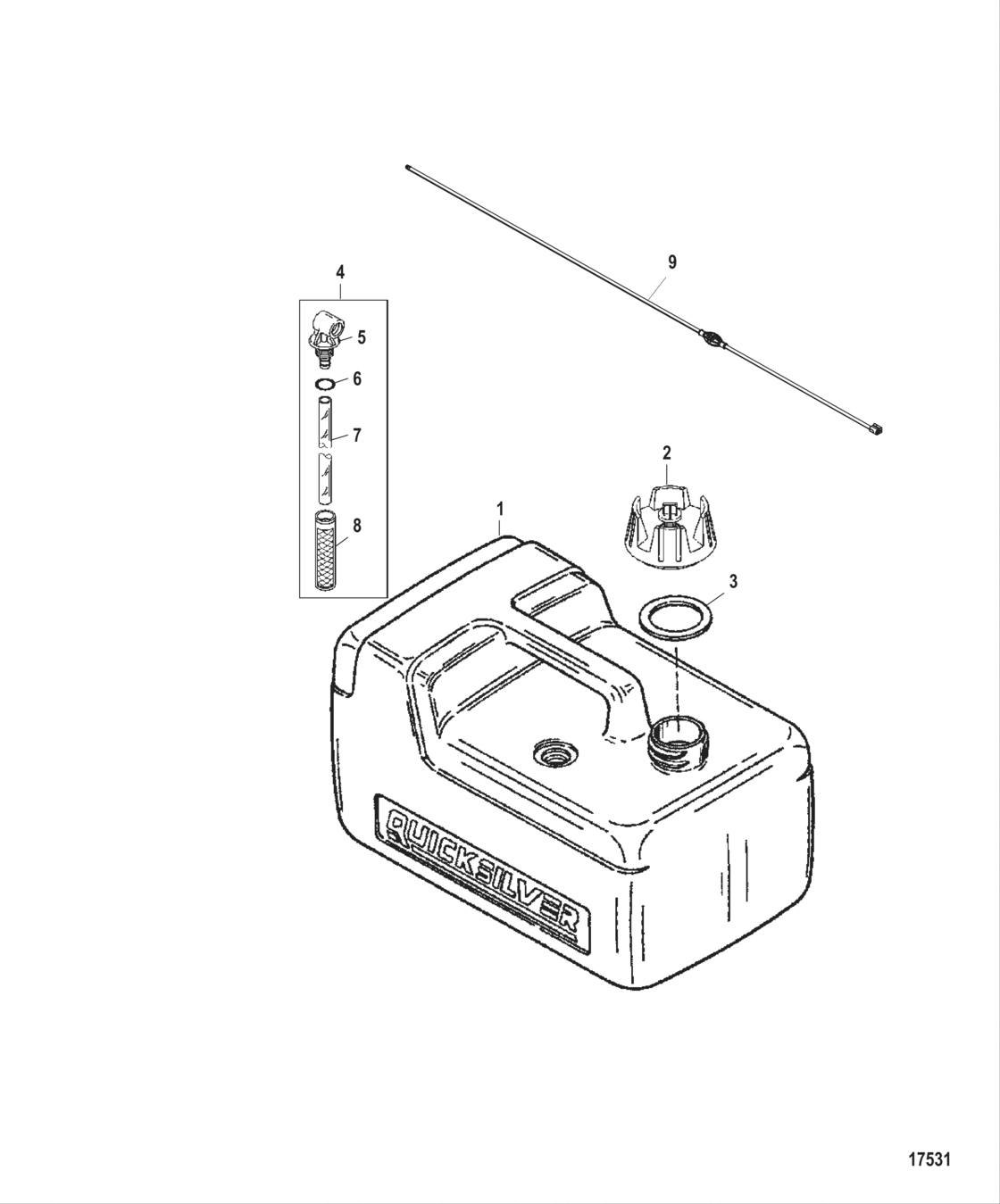

Fuel Tank Diagram Mercury-Mercruiser F9.9
- Engine Capacity
- 0.209
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R042475 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
859060A2
Tank assembly, fuel, fuel
|
859060A2 |
— | ||
|
2
|
2
816976Q1 Cap assembly, fuel, fuel |
816976Q1 |
US $21.22 |
||
|
3
|
3
8169771 Gasket, fuel cap, fuel cap |
8169771 |
US $9.86 |
||
|
4
|
4
823531A1
Connector kit, fuel, fuel
|
823531A1 |
— | ||
|
5
|
5
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
6
|
6
823533 O-ring |
823533 |
US $5.79 |
||
|
7
|
7
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
8
|
8
823534 Screen, fuel filter |
823534 |
US $14.26 |
||
|
9
|
9
858104Q08
Hose assembly, fuel - with quick disconnect engine end only
|
858104Q08 |
— | ||
| replacement | |||||
|
9
|
9
8M0044830
Hose Assembly Fuel (8 Feet) Quicksilver Branded 30.00/60.00 Inches
|
8M0044830 |
— | ||
|
9
|
9
858610A38
Hose Assembly Fuel (8.00 Feet-30.00/60.00 Inches)
Not for use in USA after 2009 |
858610A38 |
— | ||
