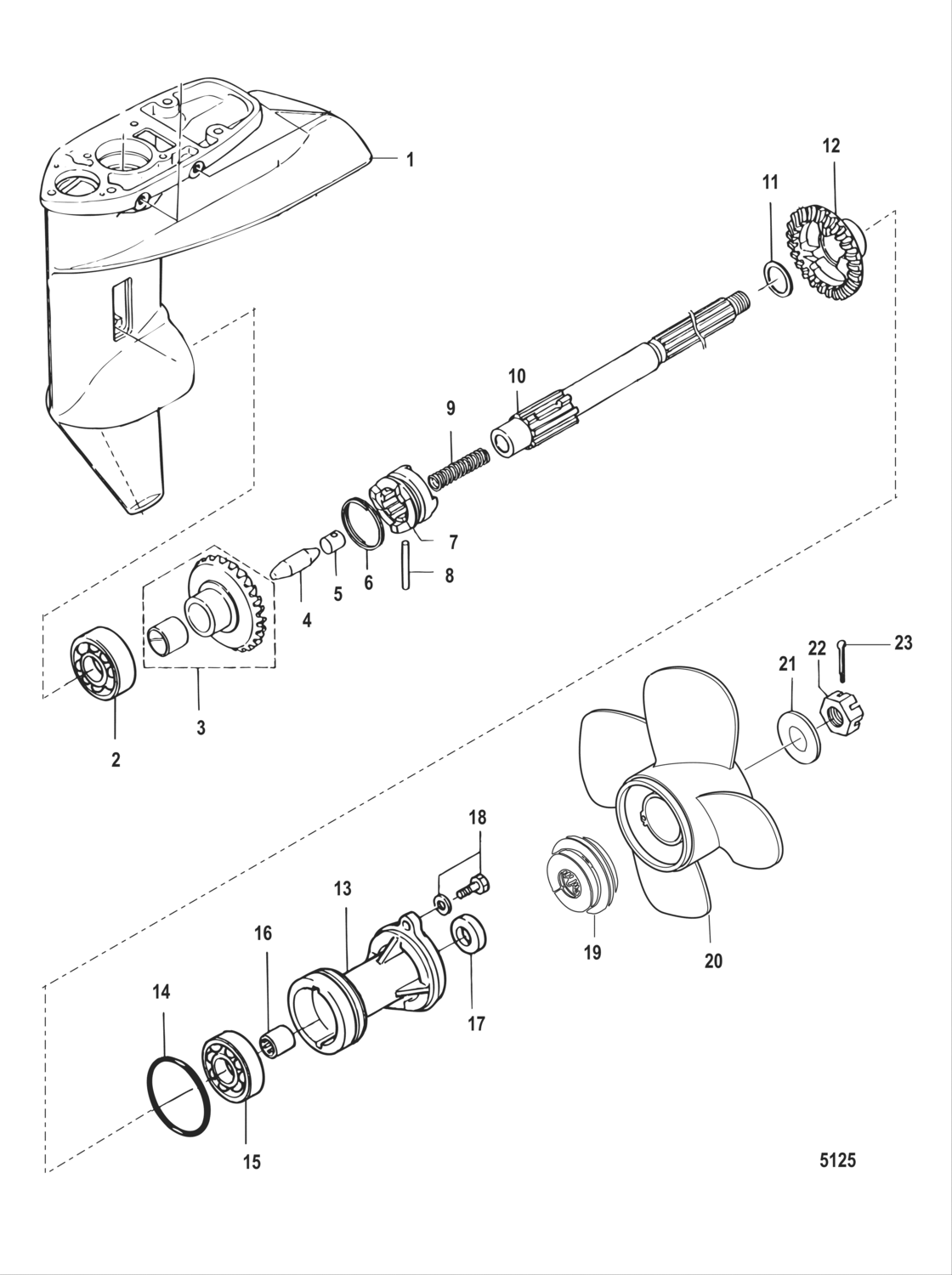

Gear Housing Propeller Shaft-Bigfoot Diagram Mercury-Mercruiser F9.9
- Engine Capacity
- 0.209
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R042475 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
895154T06 Gear Housing Assembly Basic |
895154T06 |
US $404.45 |
||
| replacement | |||||
|
1
|
1
8M0070873 GC BASIC 8/9.9 4S |
8M0070873 |
US $404.45 |
||
|
2
|
2
16132T01 Ball Bearing |
16132T01 |
US $54.06 |
||
|
3
|
3
803739T02 Gear Forward |
803739T02 |
US $240.67 |
||
| replacement | |||||
|
3
|
3
803739T03 GEAR-FORWARD |
803739T03 |
US $240.67 |
||
|
4
|
4
803747 New Genuine Part |
803747 |
US $29.66 |
||
|
5
|
5
853764 New Genuine Part |
853764 |
US $34.43 |
||
| replacement | |||||
|
5
|
5
853764003 RETAINER |
853764003 |
US $20.71 |
||
|
6
|
6
803746 Spring |
803746 |
US $4.90 |
||
|
7
|
7
803745 Clutch |
803745 |
US $244.11 |
||
|
8
|
8
160851 Pin |
160851 |
US $11.01 |
||
|
9
|
9
176672 Spring |
176672 |
US $4.98 |
||
|
10
|
10
803744T03 Propeller Shaft |
803744T03 |
US $359.78 |
||
| replacement | |||||
|
10
|
10
8M0088568 Propeller Shaft |
8M0088568 |
US $451.59 |
||
|
11
|
11
803742 Washer |
803742 |
US $9.61 |
||
|
12
|
12
803741T02 Gear Reverse |
803741T02 |
US $256.11 |
||
| replacement | |||||
|
12
|
12
803741T03 GEAR-REVERSE |
803741T03 |
US $256.11 |
||
|
13
|
13
803732T04 Carrier Assembly Bearing |
803732T04 |
US $183.78 |
||
| replacement | |||||
|
13
|
13
8M0070877 CARRIER-BEARING |
8M0070877 |
US $183.78 |
||
|
14
|
14
803735 O-ring |
803735 |
US $10.40 |
||
| replacement | |||||
|
14
|
14
8M0087846 O-Ring |
8M0087846 |
US $11.56 |
||
|
15
|
15
16132T01 Ball Bearing |
16132T01 |
US $54.06 |
||
|
16
|
16
803734 Bearing, needle |
803734 |
US $46.22 |
||
|
17
|
17
161622 Seal, oil |
161622 |
US $24.70 |
||
|
18
|
18
825702002 Bolt, stainless steel |
825702002 |
US $3.36 |
||
| replacement | |||||
|
18
|
18
823042 Bolt |
823042 |
US $3.36 |
||
|
19
|
19
803743
New Genuine Part
|
803743 |
— | ||
| replacement | |||||
|
19
|
19
8M0143215
THRUST HOLDER
|
8M0143215 |
— | ||
|
20
|
20
812948A10 Propeller, 4 bladeSilver-Power Tilt |
812948A10 |
US $242.91 |
||
|
20
|
20
812950A10 Black Max Propeller 4 Blade (10 Diameter/7 Pitch)Black-Non Power Tilt |
812950A10 |
US $244.11 |
||
|
21
|
21
161402 Washer |
161402 |
US $9.15 |
||
|
22
|
22
161471 Prop nut |
161471 |
US $15.69 |
||
|
23
|
23
8150264 Cotter pin |
8150264 |
US $2.78 |
||
|
NI
|
NI
895154T07 Gear Housing Assembly CompleteLong [USA-0R198975/BEL-0P513351] & Below |
895154T07 |
US $1,714.29 |
||
| replacement | |||||
|
NI
|
NI
8M0070884 GC 8/9.9 4S LGLong [USA-0R198975/BEL-0P513351] & Below |
8M0070884 |
US $1,518.99 |
||
|
NI
|
NI
895154T09 Gear Housing Assembly CompleteLong [USA-0R198976/BEL-0P513352] & Up |
895154T09 |
US $1,714.29 |
||
| replacement | |||||
|
NI
|
NI
8M0070884 GC 8/9.9 4S LGLong [USA-0R198976/BEL-0P513352] & Up |
8M0070884 |
US $1,518.99 |
||
|
NI
|
NI
895154T08 Gear Housing Assembly CompleteX-Long [USA-0R198975/BEL-0P513351] & Below |
895154T08 |
US $1,714.29 |
||
| replacement | |||||
|
NI
|
NI
8M0070895 GC 8/9.9 4S XLX-Long [USA-0R198975/BEL-0P513351] & Below |
8M0070895 |
US $1,714.29 |
||
|
NI
|
NI
895154T10 Gear Housing Assembly CompleteX-Long [USA-0R198976/BEL-0P513352] & Up |
895154T10 |
US $1,714.29 |
||
| replacement | |||||
|
NI
|
NI
8M0070895 GC 8/9.9 4S XLX-Long [USA-0R198976/BEL-0P513352] & Up |
8M0070895 |
US $1,714.29 |
||
|
NI
|
NI
803728A99
Gasket Set Lower Unit
|
803728A99 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0082884 GASKET SET |
8M0082884 |
US $92.29 |
||
