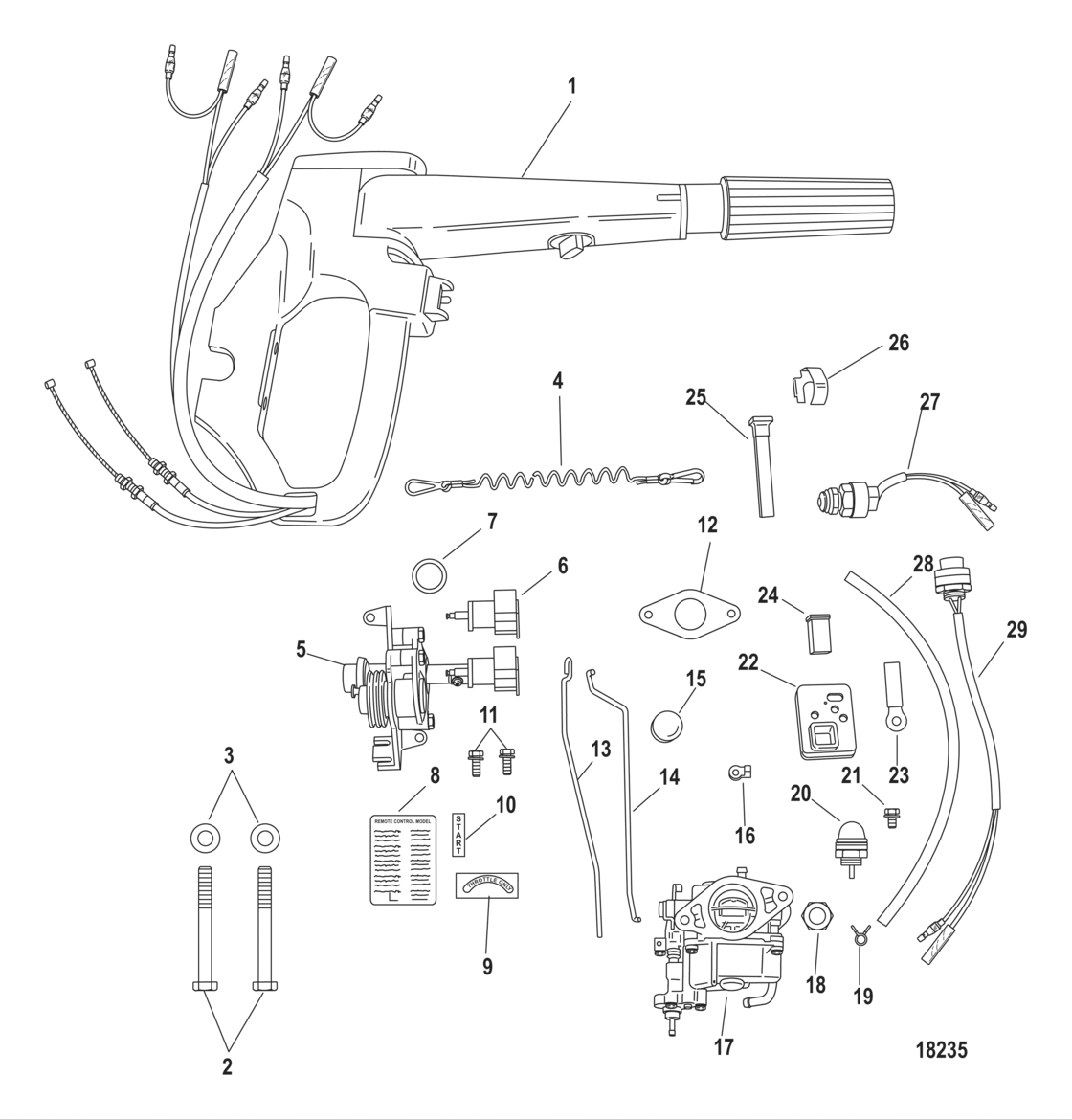

Tiller Handle Conversion Kit 9.9 Hp Electric 896289A02 Diagram Mercury-Mercruiser F9.9
- Engine Capacity
- 0.209
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 0R042475 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
2
|
2
895140 Bolt, steel |
895140 |
US $11.01 |
||
| replacement | |||||
|
2
|
2
8M0058362 Bolt Steel |
8M0058362 |
US $11.01 |
||
|
3
|
3
895141 Washer, stainless steel |
895141 |
US $4.40 |
||
| replacement | |||||
|
3
|
3
879194340 Washer |
879194340 |
US $4.40 |
||
|
4
|
4
15920Q54
New Genuine Part
|
15920Q54 |
— | ||
|
5
|
5
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
6
|
6
802971001 Shift detentBigfoot Model |
802971001 |
US $10.08 |
||
|
7
|
7
16219002 Seal |
16219002 |
US $3.82 |
||
|
8
|
8
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
9
|
9
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
10
|
10
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
11
|
11
804368 Bolt, stainless steel |
804368 |
US $1.62 |
||
| replacement | |||||
|
11
|
11
8248324 Screw |
8248324 |
US $2.04 |
||
|
12
|
12
835383001 Gasket, carburetor |
835383001 |
US $4.53 |
||
|
13
|
13
803574002 Throttle rod |
803574002 |
US $9.74 |
||
|
14
|
14
855561007 New Genuine Part |
855561007 |
US $15.18 |
||
|
15
|
15
162284 Grommet |
162284 |
US $4.86 |
||
|
16
|
16
16333 Rod snap |
16333 |
US $6.89 |
||
|
17
|
17
895110T01
Carburetor
|
895110T01 |
— | ||
| replacement | |||||
|
17
|
17
895110T11
Carburetor
|
895110T11 |
— | ||
|
18
|
18
895177 Nut |
895177 |
US $4.90 |
||
|
19
|
19
95224 Clip, drain hose |
95224 |
US $3.14 |
||
|
20
|
20
895124 Pump-priming |
895124 |
from US $37.81 |
||
|
21
|
21
82304234 Bolt |
82304234 |
US $3.60 |
||
| replacement | |||||
|
21
|
21
8230427 Bolt |
8230427 |
US $3.71 |
||
|
22
|
22
895175 Grommet |
895175 |
US $12.75 |
||
|
23
|
23
95306 Clamp, lead wire |
95306 |
US $4.64 |
||
| replacement | |||||
|
23
|
23
8M0130961 Clamp |
8M0130961 |
US $4.64 |
||
|
24
|
24
851858005 Bushing |
851858005 |
US $6.61 |
||
|
25
|
25
855565 New Genuine Part |
855565 |
US $12.18 |
||
| replacement | |||||
|
25
|
25
855565002 New Genuine Part |
855565002 |
US $12.18 |
||
|
26
|
26
803841 Actuator, neutral switch |
803841 |
US $14.85 |
||
|
27
|
27
803840
Switch, neutral
|
803840 |
— | ||
| replacement | |||||
|
27
|
27
8M0127937 Switch Neutral |
8M0127937 |
US $74.99 |
||
|
28
|
28
851848007
Hose, rubber
|
851848007 |
— | ||
|
29
|
29
853820A02 Switch assembly, start |
853820A02 |
US $32.69 |
||
|
NI
|
NI
896289A02
New Genuine Part
|
896289A02 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0051066
Conversion Kit Tiller Handle
|
8M0051066 |
— | ||
