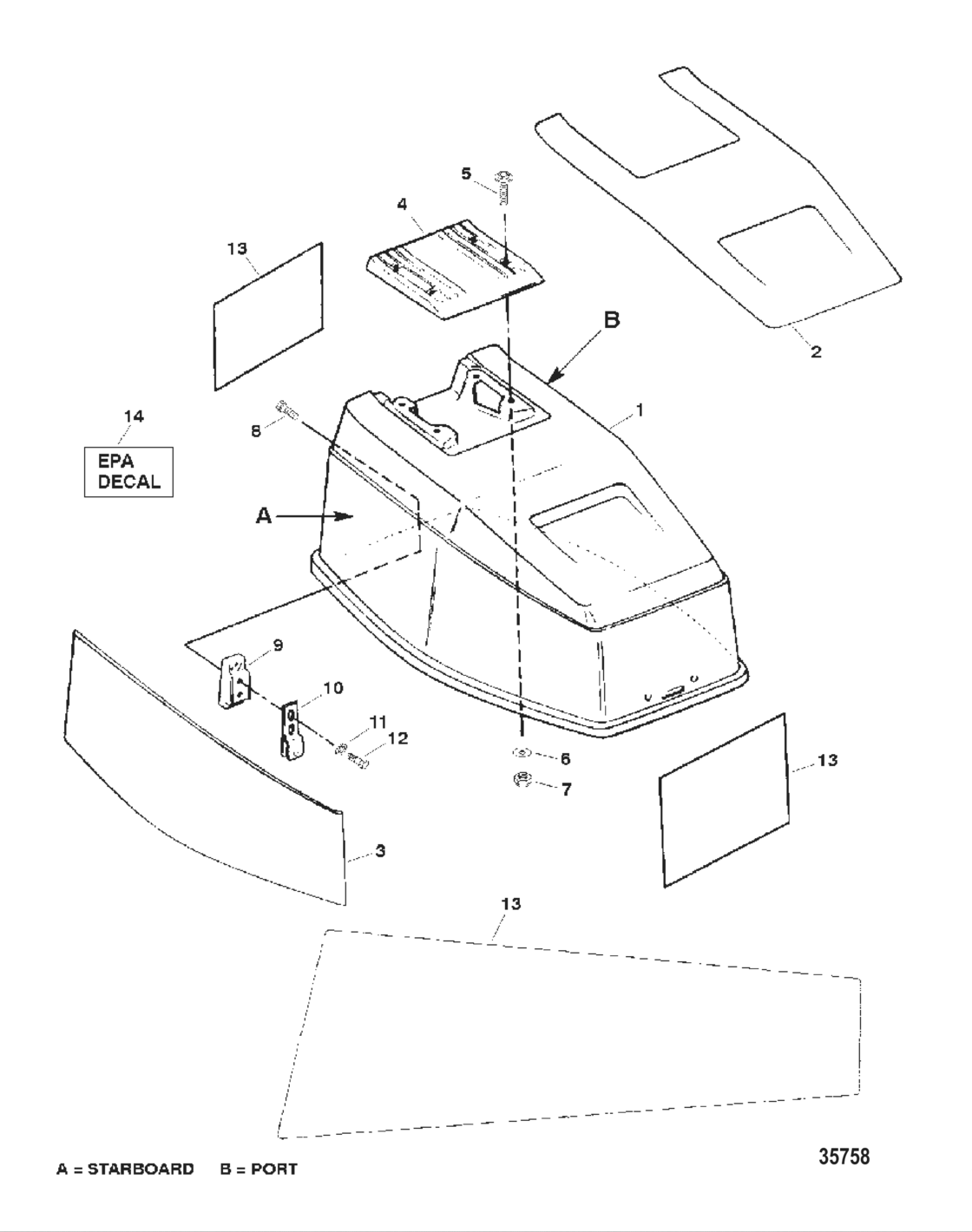

Top Cowl Assembly Diagram Mercury-Mercruiser Force50
- Year
- 1999
- Power
- 50
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E345000 THRU 0E369299
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
819748A6
Top Cowl Assembly (Painted)
(WITHOUT DECALS) |
819748A6 |
— | ||
| replacement | |||||
|
1
|
1
819748T6
COWL ASSY-BASIC
(WITHOUT DECALS) |
819748T6 |
— | ||
|
2
|
2
F684984
New Genuine Part
|
F684984 |
— | ||
|
3
|
3
F6849851
New Genuine Part
(PORT OR STARBOARD) |
F6849851 |
— | ||
|
4
|
4
828477
New Genuine Part
|
828477 |
— | ||
|
5
|
5
828478 Screw (.250-20 X 1.00) Stainless Steel |
828478 |
US $2.43 |
||
|
6
|
6
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
7
|
7
56374 Nut, starter motor stud |
56374 |
US $5.92 |
||
| replacement | |||||
|
7
|
7
8267098 Nut, stainless steel |
8267098 |
US $5.92 |
||
|
8
|
8
28639
Screw (250-20 X .625)
|
28639 |
— | ||
|
9
|
9
F684774 New Genuine Part |
F684774 |
US $66.90 |
||
|
10
|
10
18173 New Genuine Part |
18173 |
US $31.89 |
||
| replacement | |||||
|
10
|
10
893763 New Genuine Part |
893763 |
US $31.89 |
||
|
11
|
11
53166 Lockwasher |
53166 |
US $1.62 |
||
|
12
|
12
90285 Screw, mounting bracket |
90285 |
US $1.62 |
||
|
13
|
13
855393A98
Decal Set
(FORCE-40 HP) (FRONT-REAR-PORT-STARBOARD) |
855393A98 |
— | ||
|
13
|
13
855394A98
Decal Set
(FORCE-50 HP) (FRONT-REAR-PORT-STARBOARD) |
855394A98 |
— | ||
|
13
|
13
835012A96
Decal Set
(NORTHWOOD-40 HP) (FRONT-REAR-PORT-STARBOARD) |
835012A96 |
— | ||
|
14
|
14
85557718
Decal Epa Label Information (Applied To The Top Inside Of The Top Cowl)
|
85557718 |
— | ||
| replacement | |||||
|
14
|
14
855577A18
REF OB SB 09-18
|
855577A18 |
— | ||
|
NS
|
NS
852950A97
Decal Set
(TRACKER-40 HP) (FRONT AND WRAPAROUND SYTLE) [0E288000] THRU [0E357204] |
852950A97 |
— | ||
|
NS
|
NS
803908A99
Decal Set
(TRACKER-40 HP) (FRONT AND WRAPAROUND SYTLE) [0E357205] THRU [0E369299] |
803908A99 |
— | ||
|
NS
|
NS
852951A97
Decal Set
(TRACKER-50 HP) (FRONT AND WRAPAROUND SYTLE) [0E288000] THRU [0E344999] |
852951A97 |
— | ||
