Recirculation System Diagram Mercury-Mercruiser Force75

Year
1998
Power
75
Stroke (2-stroke or 4-stroke)
2 stroke
Country
USA
Серийный номер
0E288000 THRU 0E344999
Кол-в цилиндров
3
Подача топлива
Карбюратор

Difficulties in parts search?

Parts list

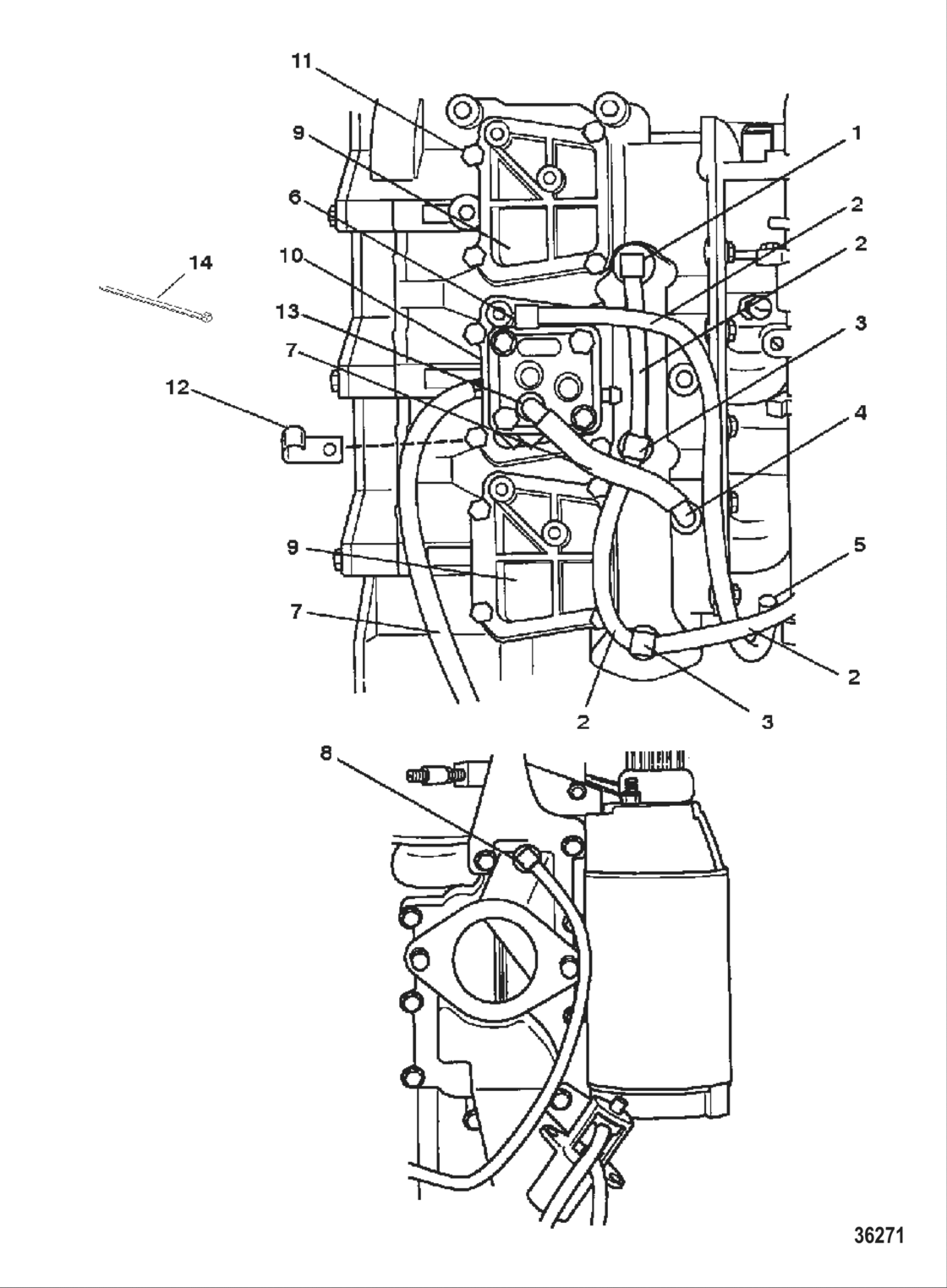

Recirculation System

Difficulties in parts search?

Recirculation System
Description OEM Part # Price
1
1

42864

Fitting, crankcase bleed

42864

US $22.50

replacement
1
1

428641

Fitting, check valve

428641

US $22.50

2
2

99130122

Hose, bleed drain

(2 PIECES-CUT 3.750 INCHES) (1 PIECE-CUT 11.750 INCHES) (1 PIECE-CUT 19.00 INCHES)

99130122

US $59.04

replacement
2
2
892024122
Tubing,

(2 PIECES-CUT 3.750 INCHES) (1 PIECE-CUT 11.750 INCHES) (1 PIECE-CUT 19.00 INCHES)

892024122

3
3
8207061
Fitting (T)

8207061

4
4

99664

Elbow, tell tale - hose to cylinder block

99664

US $2.21

replacement
4
4

996642

Fitting, elbow 90 degree nylon

996642

US $2.21

5
5
426582
Check valve

426582

replacement
5
5
426585
Check valve

426585

6
6
F743314
Elbow Recirculating

F743314

7
7

830756109

Hose, , map sensor

(1 PIECE-CUT 4.500 INCHES) (1 PIECE-CUT 21.00 INCHES)

830756109

US $54.61

replacement
7
7

8M0108355

Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches

(1 PIECE-CUT 4.500 INCHES) (1 PIECE-CUT 21.00 INCHES)

8M0108355

US $54.61

8
8

88780

Elbow, bleed drain

88780

US $15.54

replacement
8
8

887801

Fitting, elbow 90 degree

887801

US $15.54

9
9
8196944
Cover-t'fer port

8196944

10
10
8178702
New Genuine Part

8178702

replacement
10
10
8178703
New Genuine Part

8178703

11
11

819110062

Screw (.250-20 X .625)

819110062

US $2.21

12
12

55098

J clip

55098

US $4.40

13
13

99664

Elbow, tell tale - hose to cylinder block

99664

US $2.21

replacement
13
13

996642

Fitting, elbow 90 degree nylon

996642

US $2.21

14
14

816311

Tie strap,

816311

US $0.51

replacement
14
14

816311T

Tie Strap (8.00 Inches)

816311T

US $0.51

NI
NI
818153A62
Powerhead Assembly

818153A62
