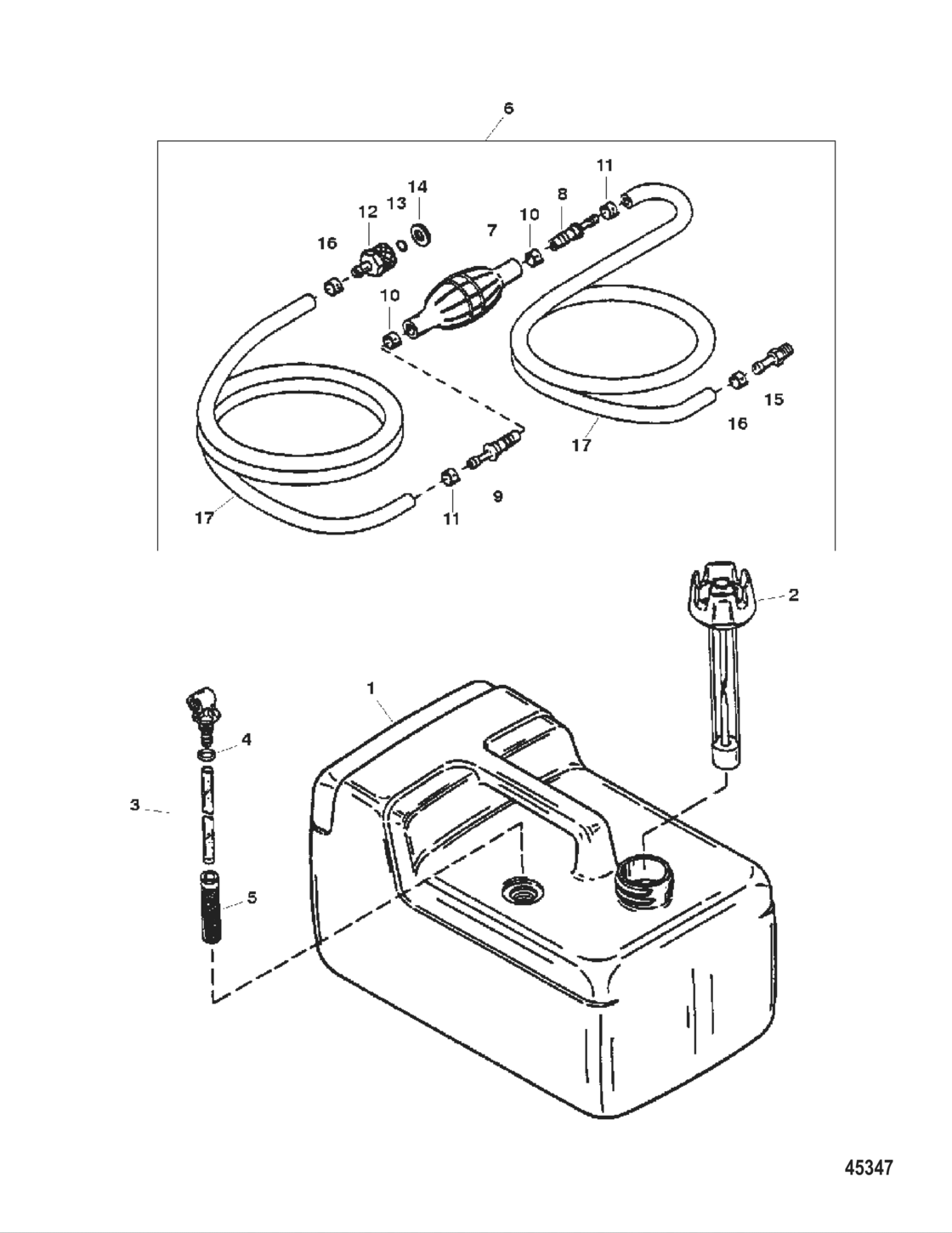

Fuel Tank And Line Assembly (Plastic - 3.2 Gallon) Diagram Mercury-Mercruiser Force9.9
- Year
- 1996
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0E127700 THRU 0E202999
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
823505A2
Tank Assembly Fuel (With Fuel Line Assembly 32-820572A8)
(COMPLETE) (PLASTIC-3.2 GALLON) |
823505A2 |
— | ||
|
1
|
1
823505A1
Tank assembly, fuel
(PLASTIC-3.2 GALLON) |
823505A1 |
— | ||
| replacement | |||||
|
1
|
1
859061A1
Tank assembly, fuel
(PLASTIC-3.2 GALLON) |
859061A1 |
— | ||
|
2
|
2
823535 Gauge asy-3.2 gal |
823535 |
US $34.78 |
||
|
3
|
3
823531 Connector Assembly Fuel |
823531 |
US $31.01 |
||
| replacement | |||||
|
3
|
3
823531A1
Connector kit, fuel, fuel
|
823531A1 |
— | ||
|
4
|
4
823533 O-ring |
823533 |
US $5.79 |
||
|
5
|
5
823534 Screen, fuel filter |
823534 |
US $14.26 |
||
|
6
|
6
820572A8
Line Assembly Fuel (.312 Inner Diameter) (8.00 Feet-30.00/60.00 Inches)
(.312 I.D.) (8.00 Ft.) (30.00 In. & 60.00 In.) |
820572A8 |
— | ||
| replacement | |||||
|
6
|
6
877684Q8
Hose Assembly Fuel (8.00 Feet-30.00/60.00 Inches)
(.312 I.D.) (8.00 Ft.) (30.00 In. & 60.00 In.) |
877684Q8 |
— | ||
|
7
|
7
13330A3
New Genuine Part
|
13330A3 |
— | ||
| replacement | |||||
|
7
|
7
13330Q07
Bulb Assembly Primer - Quicksilver Brand
|
13330Q07 |
— | ||
|
8
|
8
13331A1
Check valve assembly
|
13331A1 |
— | ||
| replacement | |||||
|
8
|
8
13331A3 Check Valve Assembly Inlet |
13331A3 |
US $10.08 |
||
|
9
|
9
13331A2
Check Valve Assembly Outlet
|
13331A2 |
— | ||
| replacement | |||||
|
9
|
9
13331A4 Check Valve Assembly Outlet |
13331A4 |
US $10.08 |
||
|
10
|
10
4158210
Clamp
|
4158210 |
— | ||
|
11
|
11
415827
Clamp, nylon
|
415827 |
— | ||
| replacement | |||||
|
11
|
11
41582Q7 Clamp |
41582Q7 |
US $7.54 |
||
|
12
|
12
F1977873 Coupler-fuel line |
F1977873 |
US $43.22 |
||
| replacement | |||||
|
12
|
12
F197787Q3 Coupler-fuel line |
F197787Q3 |
US $43.22 |
||
|
13
|
13
F17815 New Genuine Part |
F17815 |
US $2.54 |
||
|
14
|
14
F17816 New Genuine Part |
F17816 |
US $1.62 |
||
|
15
|
15
897711 Connector, , fuel tank |
897711 |
US $9.97 |
||
| replacement | |||||
|
15
|
15
89771Q2 Connector (.250-18) Tank End |
89771Q2 |
US $11.66 |
||
|
16
|
16
415827
Clamp, nylon
|
415827 |
— | ||
| replacement | |||||
|
16
|
16
41582Q7 Clamp |
41582Q7 |
US $7.54 |
||
|
17
|
17
1678978
Line-fuel-bulk cut as req'd
|
1678978 |
— | ||
| replacement | |||||
|
17
|
17
85861079
Hose
|
85861079 |
— | ||
|
17
|
17
16789100
Line-fuel-bulk cut as req'd
|
16789100 |
— | ||
| replacement | |||||
|
17
|
17
858610100
Hose
|
858610100 |
— | ||
