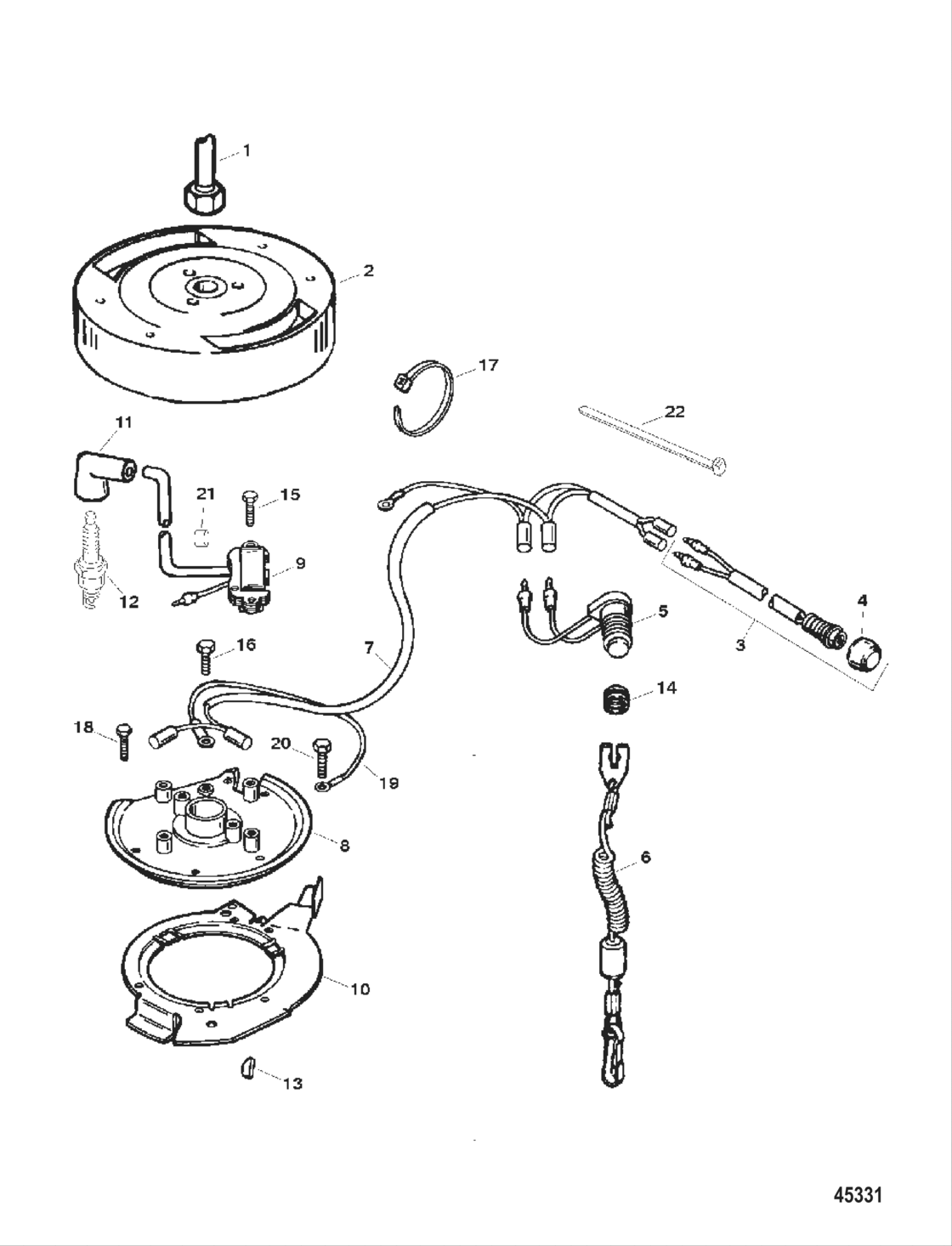

Ignition System Diagram Mercury-Mercruiser Force9.9
- Year
- 1996
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0E127700 THRU 0E202999
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F681091
New Genuine Part
|
F681091 |
— | ||
|
2
|
2
824380T3
Flywheel
|
824380T3 |
— | ||
| replacement | |||||
|
2
|
2
824380T4
Flywheel (Painted)
|
824380T4 |
— | ||
|
3
|
3
824440A9
Switch Assembly Stop
|
824440A9 |
— | ||
| replacement | |||||
|
3
|
3
824440A15 Switch Assembly Stop |
824440A15 |
US $44.45 |
||
|
4
|
4
824466A3
New Genuine Part
|
824466A3 |
— | ||
|
5
|
5
826214A1 Switch assembly-emergency stop |
826214A1 |
US $67.44 |
||
|
6
|
6
819399A1
New Genuine Part
|
819399A1 |
— | ||
| replacement | |||||
|
6
|
6
879104
Lanyard w/clip
|
879104 |
— | ||
|
7
|
7
819379A7
Harness Assembly Engine Stop
|
819379A7 |
— | ||
|
8
|
8
826692T
Plate Stator
|
826692T |
— | ||
| replacement | |||||
|
8
|
8
828243T
Plate kit-stator
|
828243T |
— | ||
|
9
|
9
819156T Module Ignition (Cut Wire As Req'd) |
819156T |
US $159.66 |
||
| replacement | |||||
|
9
|
9
850899T Module Ignition |
850899T |
US $159.66 |
||
|
10
|
10
8266911
New Genuine Part
|
8266911 |
— | ||
| replacement | |||||
|
10
|
10
855352
N.l.a.
|
855352 |
— | ||
|
11
|
11
63709A1 SPARK PLUG CAP |
63709A1 |
US $8.60 |
||
|
12
|
12
312 Spark Plug (9.9) (Champion # L87Yc) |
312 |
US $6.72 |
||
|
12
|
12
327
Spark Plug (9.9) (Rfi) (Champion # Rl87Yc)
|
327 |
— | ||
|
12
|
12
328 Spark Plug (15) (Champion # L82Yc) |
328 |
US $7.07 |
||
|
12
|
12
814 Spark Plug (15) (Rfi) ( Champion # Rl82Yc) |
814 |
US $8.11 |
||
| replacement | |||||
|
12
|
12
896329814 SP #RL82YC @4 |
896329814 |
US $8.11 |
||
|
13
|
13
F4584981
Key Crankshaft/flywheel
|
F4584981 |
— | ||
|
14
|
14
F681188
Nut Stop Switch Sleeve
|
F681188 |
— | ||
| replacement | |||||
|
14
|
14
855594
Nut (Special)-Stop Switch Sleeve
|
855594 |
— | ||
|
15
|
15
824353
Screw -ign module mount
|
824353 |
— | ||
|
16
|
16
824352 Screw (#10-24 X .375) (#10-24 X .375)-Ground |
824352 |
US $1.86 |
||
|
17
|
17
56762 New Genuine Part |
56762 |
US $0.35 |
||
|
18
|
18
824358
Screw -stator plate
|
824358 |
— | ||
|
19
|
19
60466A21
Cable Assembly Ground
|
60466A21 |
— | ||
|
20
|
20
824358
Screw -stator plate
|
824358 |
— | ||
|
21
|
21
20117A1
New Genuine Part
|
20117A1 |
— | ||
|
22
|
22
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
22
|
22
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
