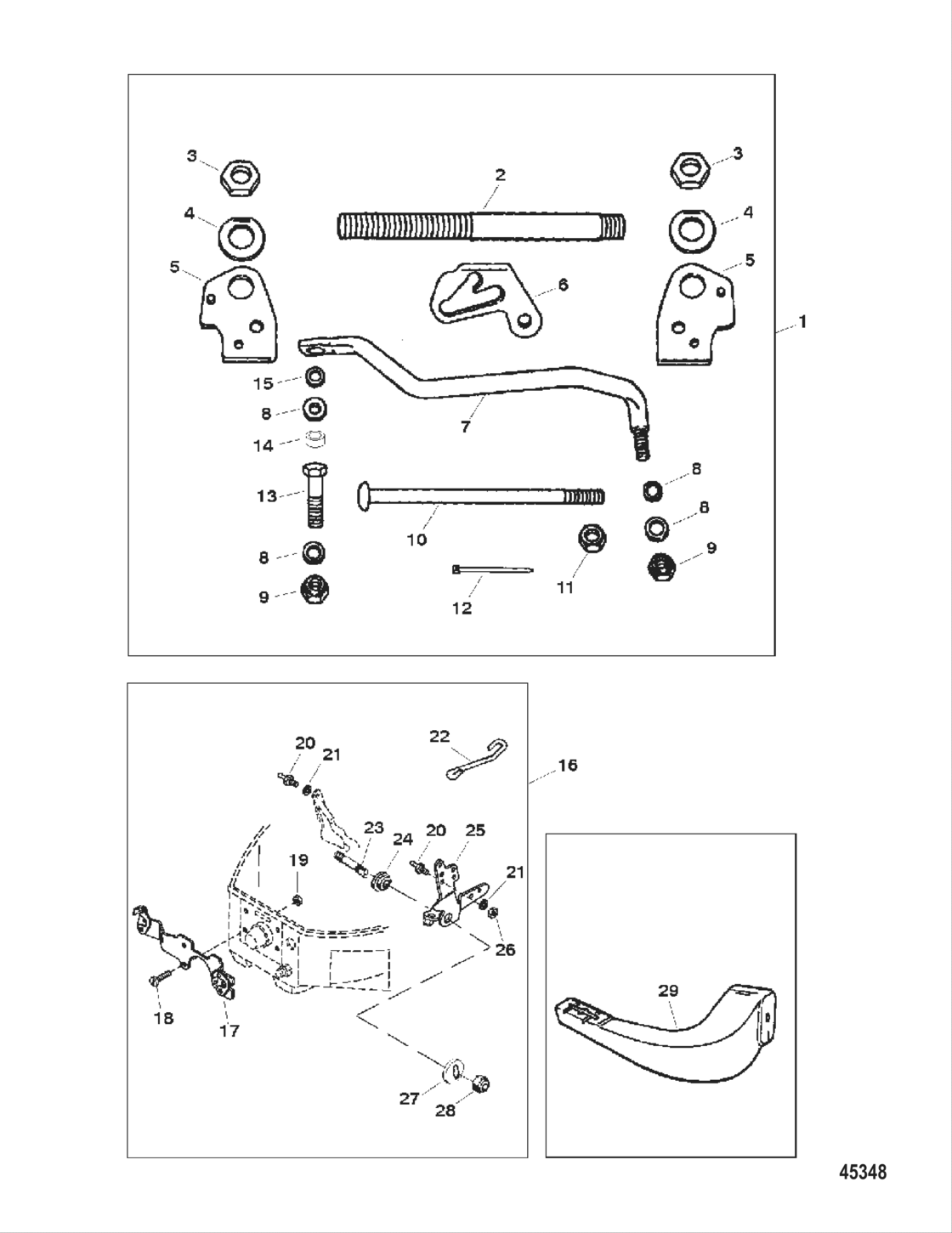

Remote Control Linkage Diagram Mercury-Mercruiser Force9.9
- Year
- 1996
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0E127700 THRU 0E202999
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
827889A1
New Genuine Part
|
827889A1 |
— | ||
| replacement | |||||
|
1
|
1
827889A2
N.l.a.
|
827889A2 |
— | ||
|
2
|
2
71565A2
New Genuine Part
|
71565A2 |
— | ||
|
3
|
3
37984 Nut, , jam - steering cable guide tube |
37984 |
US $9.97 |
||
| replacement | |||||
|
3
|
3
8M0041651 Nut (.875-14) |
8M0041651 |
US $9.97 |
||
|
4
|
4
42100 Tab washer |
42100 |
US $5.26 |
||
|
5
|
5
827890
New Genuine Part
|
827890 |
— | ||
|
6
|
6
F6765412
New Genuine Part
|
F6765412 |
— | ||
|
7
|
7
F676881
827889a 2
|
F676881 |
— | ||
| replacement | |||||
|
7
|
7
827889A2
N.l.a.
|
827889A2 |
— | ||
|
8
|
8
37828 Washer, stainless steel |
37828 |
US $0.58 |
||
|
9
|
9
34863
Nut
|
34863 |
— | ||
| replacement | |||||
|
9
|
9
8M0042636 Nut (.375-24) Brass |
8M0042636 |
US $1.62 |
||
|
10
|
10
827894
Bolt (.375-16 X 7.375)
|
827894 |
— | ||
| replacement | |||||
|
10
|
10
850185
Bolt-pivot-stern bracket
|
850185 |
— | ||
|
11
|
11
F7026
Nut (.375-16)
|
F7026 |
— | ||
|
12
|
12
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
12
|
12
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
13
|
13
90072 Screw |
90072 |
US $4.18 |
||
|
14
|
14
F522359
Spacer
|
F522359 |
— | ||
|
15
|
15
F84215
Spacer
|
F84215 |
— | ||
|
16
|
16
819356A4
Conv ??? ????
|
819356A4 |
— | ||
| replacement | |||||
|
16
|
16
819356A7
Conv ??? ????
|
819356A7 |
— | ||
|
17
|
17
819356A5
New Genuine Part
|
819356A5 |
— | ||
|
18
|
18
F1733 Screw (#10-24 X .562) Ss |
F1733 |
US $1.28 |
||
| replacement | |||||
|
18
|
18
852453 Screw |
852453 |
US $1.28 |
||
|
19
|
19
F7009 Nut (#10-24) |
F7009 |
US $3.01 |
||
|
20
|
20
F98273
Stud
|
F98273 |
— | ||
|
21
|
21
F8058 Lockwasher Internal (#10) |
F8058 |
US $1.20 |
||
|
22
|
22
824142
New Genuine Part
|
824142 |
— | ||
| replacement | |||||
|
22
|
22
824142T
New Genuine Part
|
824142T |
— | ||
|
23
|
23
F286440
Stud Magneto Control Lever
|
F286440 |
— | ||
|
24
|
24
F183813
Bearing Control Lever
|
F183813 |
— | ||
|
25
|
25
819408A1
New Genuine Part
|
819408A1 |
— | ||
|
26
|
26
29488 Nut, mounting bracket to hydraulic pump |
29488 |
US $4.06 |
||
| replacement | |||||
|
26
|
26
826709106 Nut, stainless steel |
826709106 |
US $4.06 |
||
|
27
|
27
F286282
Washer
|
F286282 |
— | ||
|
28
|
28
F1803
Nut (.312-24)
|
F1803 |
— | ||
|
29
|
29
F5H054
New Genuine Part
|
F5H054 |
— | ||
