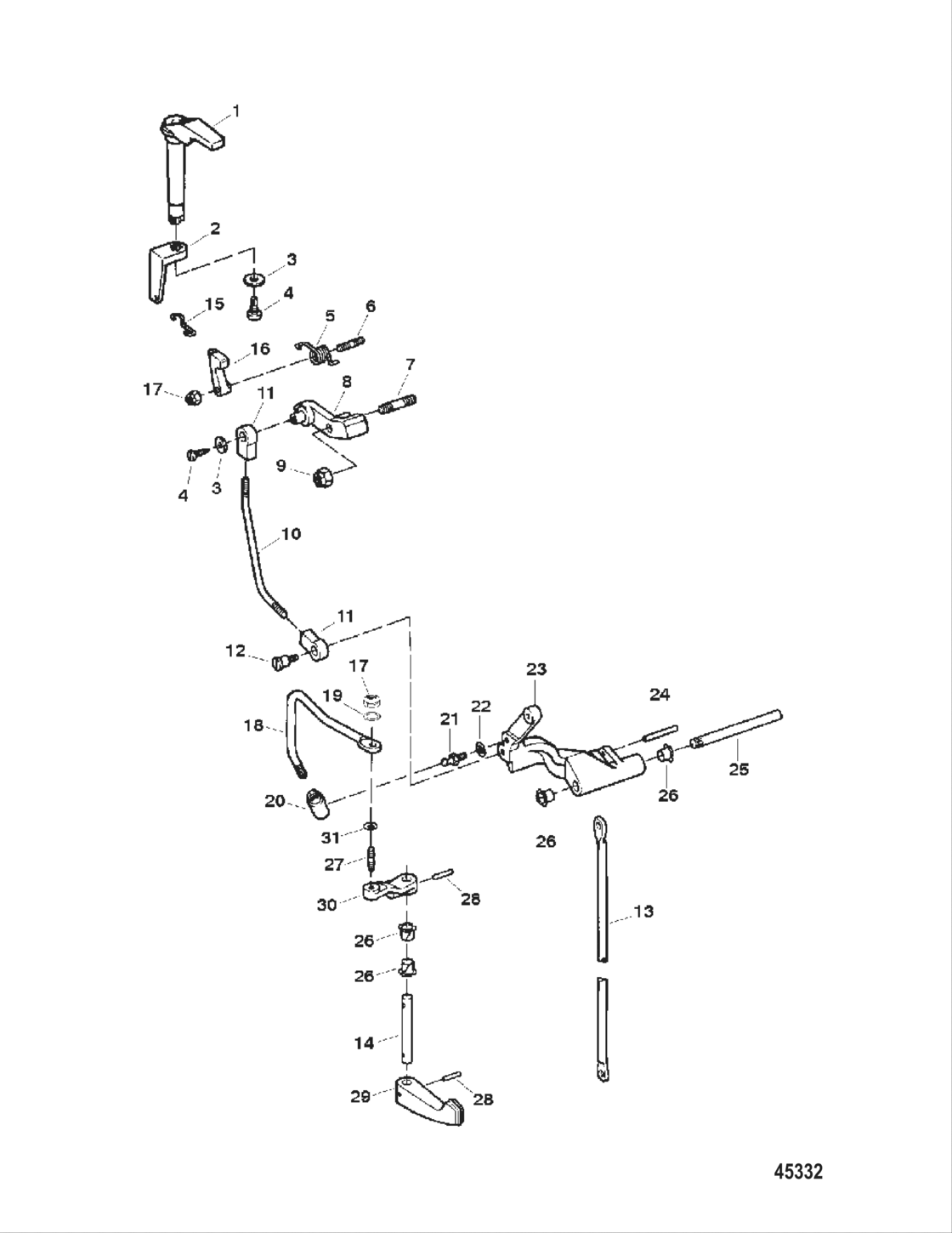

Shift Linkage Diagram Mercury-Mercruiser Force9.9
- Year
- 1996
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0E127700 THRU 0E202999
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F681490
New Genuine Part
|
F681490 |
— | ||
|
2
|
2
F6810031
New Genuine Part
|
F6810031 |
— | ||
|
3
|
3
F8143
Washer
|
F8143 |
— | ||
|
4
|
4
48408 Screw, exhaust relief cover |
48408 |
US $2.22 |
||
|
5
|
5
F681424
Spring Interlock Lever
|
F681424 |
— | ||
|
6
|
6
F681134
Stud Interlock Lever
|
F681134 |
— | ||
|
7
|
7
826590
Stud
With Dri Lok-Neutral Interlock Pivot |
826590 |
— | ||
|
8
|
8
824357
New Genuine Part
|
824357 |
— | ||
|
9
|
9
814101 Nut, stainless steel |
814101 |
US $2.43 |
||
|
10
|
10
F6815311
New Genuine Part
|
F6815311 |
— | ||
| replacement | |||||
|
10
|
10
852369
New Genuine Part
|
852369 |
— | ||
|
11
|
11
816514
Bearing-black
|
816514 |
— | ||
|
12
|
12
819625
Screw-shoulder
|
819625 |
— | ||
|
13
|
13
F286615
New Genuine Part
|
F286615 |
— | ||
|
14
|
14
824826
New Genuine Part
|
824826 |
— | ||
| replacement | |||||
|
14
|
14
828931
New Genuine Part
|
828931 |
— | ||
|
15
|
15
F6812631
New Genuine Part
|
F6812631 |
— | ||
|
16
|
16
F681742 New Genuine Part |
F681742 |
US $4.86 |
||
|
17
|
17
20110 Nut, , shift control lever to cam lever stud |
20110 |
US $1.50 |
||
|
18
|
18
825402 New Genuine Part |
825402 |
US $35.89 |
||
|
19
|
19
26996 Lockwasher, stainless steel, terminal block screws |
26996 |
US $1.04 |
||
|
20
|
20
F286685
New Genuine Part
|
F286685 |
— | ||
|
21
|
21
F98273
Stud
|
F98273 |
— | ||
|
22
|
22
F8058 Lockwasher Internal (#10) |
F8058 |
US $1.20 |
||
|
23
|
23
819508T New Genuine Part |
819508T |
US $77.55 |
||
| replacement | |||||
|
23
|
23
855621T New Genuine Part |
855621T |
US $77.55 |
||
|
24
|
24
31656 Pin, steering handle |
31656 |
US $15.78 |
||
|
25
|
25
F286871T
New Genuine Part
|
F286871T |
— | ||
|
26
|
26
26841 Bushing, nylon - reverse lock lever rod |
26841 |
US $6.72 |
||
|
27
|
27
F286134
Stud Gear Shift Lever
|
F286134 |
— | ||
|
28
|
28
25905
Roll pin, cam to shift shaft
|
25905 |
— | ||
|
29
|
29
819626T
New Genuine Part
|
819626T |
— | ||
|
30
|
30
8203671
New Genuine Part
|
8203671 |
— | ||
| replacement | |||||
|
30
|
30
820367F1
New Genuine Part
|
820367F1 |
— | ||
|
31
|
31
F8048
Washer Bowed
|
F8048 |
— | ||
|
NI
|
NI
819553A12
Cylinder Block Assembly
|
819553A12 |
— | ||
|
NI
|
NI
819553A14
Short Block Assembly
|
819553A14 |
— | ||
| replacement | |||||
|
NI
|
NI
819553A15
Short Block Assembly
|
819553A15 |
— | ||
