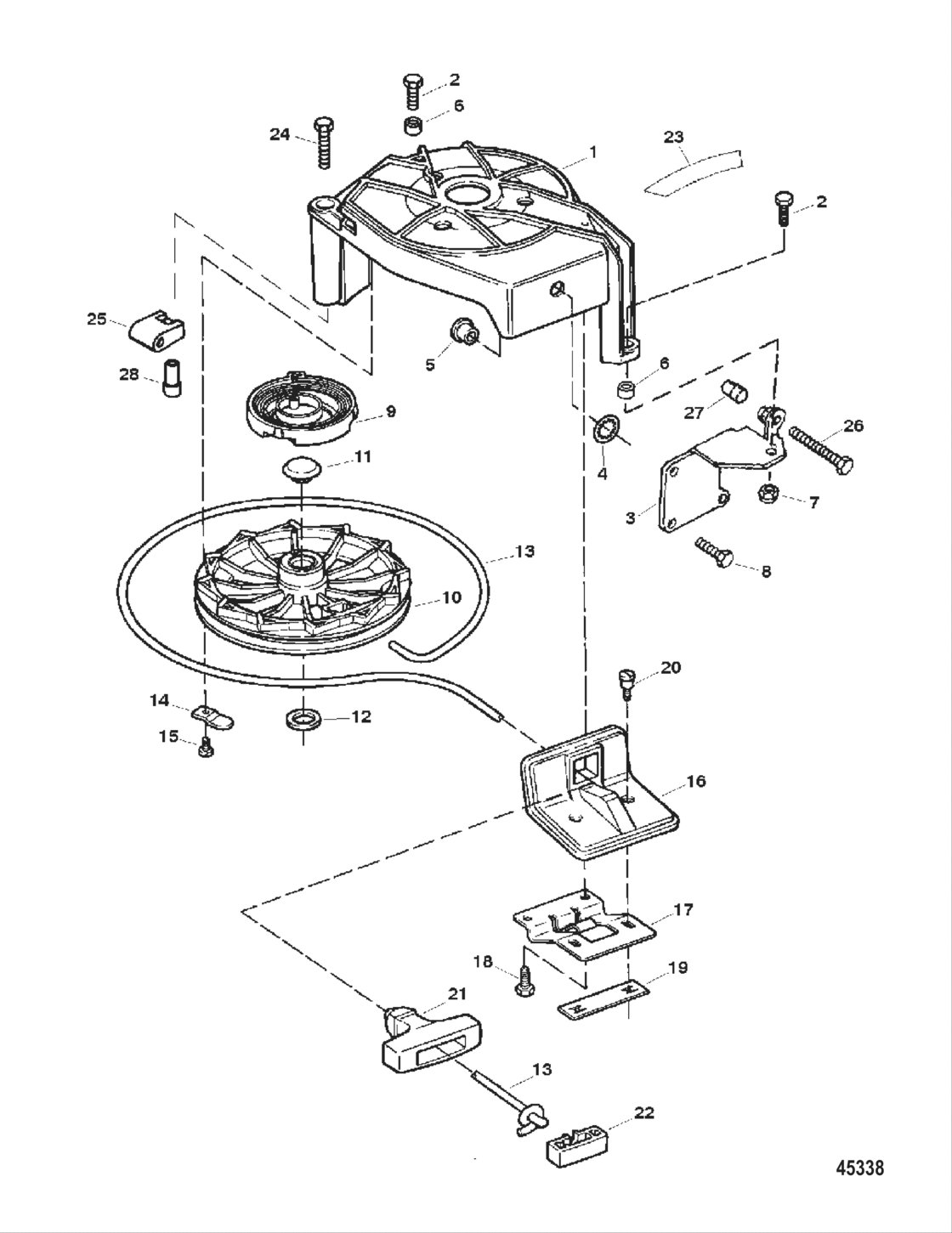

Starter Componets Diagram Mercury-Mercruiser Force9.9
- Year
- 1996
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0E127700 THRU 0E202999
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
826693
New Genuine Part
|
826693 |
— | ||
|
2
|
2
90192 Screw, , extension to plate |
90192 |
US $1.62 |
||
|
3
|
3
826559A2
New Genuine Part
|
826559A2 |
— | ||
| replacement | |||||
|
3
|
3
826559A3
New Genuine Part
|
826559A3 |
— | ||
|
4
|
4
818853 Retaining ring |
818853 |
US $1.80 |
||
|
5
|
5
F681428
New Genuine Part
|
F681428 |
— | ||
|
6
|
6
F681405
Insert Starter Housing
|
F681405 |
— | ||
| replacement | |||||
|
6
|
6
F681405T
Insert Starter Housing
|
F681405T |
— | ||
|
7
|
7
814101 Nut, stainless steel |
814101 |
US $2.43 |
||
|
8
|
8
F1922
Screw (.250-20 X .625)
|
F1922 |
— | ||
|
9
|
9
F681970
Spring Starter Rewind
|
F681970 |
— | ||
|
10
|
10
42034A2
New Genuine Part
|
42034A2 |
— | ||
|
11
|
11
817362 Cap, starter sheave |
817362 |
US $0.82 |
||
|
12
|
12
F681579
Seal Pulley Bearing
|
F681579 |
— | ||
| replacement | |||||
|
12
|
12
124941
Seal-pulley bearing
|
124941 |
— | ||
|
13
|
13
F681232 Rope-starter |
F681232 |
US $8.67 |
||
| replacement | |||||
|
13
|
13
12066T03 ROPE-STARTER |
12066T03 |
US $8.67 |
||
|
14
|
14
F681592
New Genuine Part
|
F681592 |
— | ||
|
15
|
15
48408 Screw, exhaust relief cover |
48408 |
US $2.22 |
||
|
16
|
16
FA681630T New Genuine Part |
FA681630T |
US $39.01 |
||
|
17
|
17
F681090
New Genuine Part
|
F681090 |
— | ||
|
18
|
18
F2210
Screw (.250-14 X .500)
|
F2210 |
— | ||
|
19
|
19
F6818741
New Genuine Part
|
F6818741 |
— | ||
|
20
|
20
819625
Screw-shoulder
|
819625 |
— | ||
|
21
|
21
F681132
New Genuine Part
|
F681132 |
— | ||
|
22
|
22
F681817
New Genuine Part
|
F681817 |
— | ||
|
23
|
23
FA609853
New Genuine Part
|
FA609853 |
— | ||
| replacement | |||||
|
23
|
23
825149A1
Decal kit-shift to neutral
|
825149A1 |
— | ||
|
24
|
24
F2030 Screw (.250-20 X 1.250) Stainless Steel |
F2030 |
US $3.01 |
||
|
25
|
25
830265
New Genuine Part
|
830265 |
— | ||
|
26
|
26
826676
Screw (.250-28 X 2.00) Idle Adjust
|
826676 |
— | ||
|
27
|
27
26852 New Genuine Part |
26852 |
US $3.47 |
||
|
28
|
28
830196
Spacer Throttle Cable Retainer
|
830196 |
— | ||
