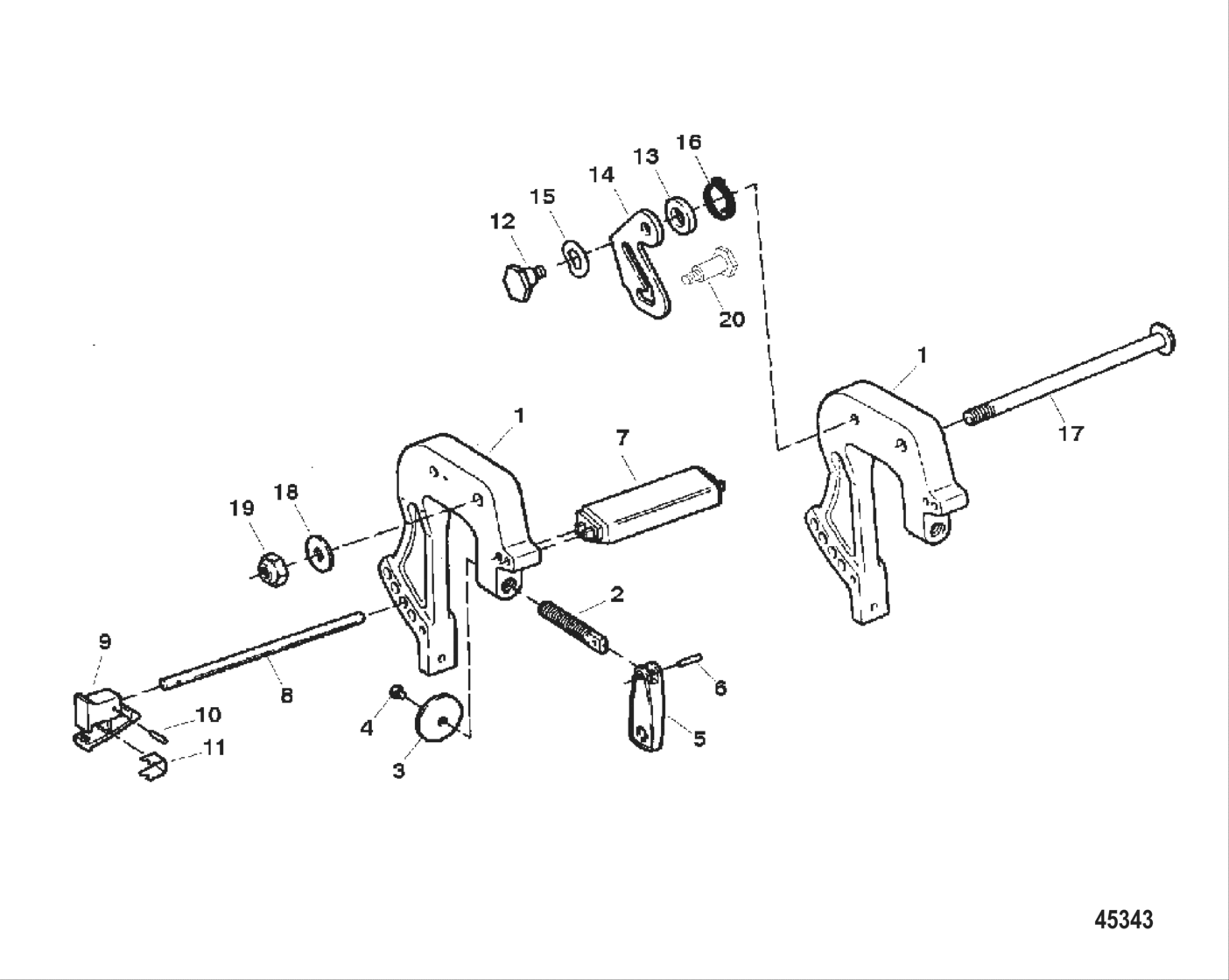

Clamp Brackets (Serial # 0E127700 Thru 0E143887) Diagram Mercury-Mercruiser Force9.9
- Year
- 1997
- Power
- 9.9
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0E203000 THRU 0E287999
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
820068T1
Bracket Stern (Painted)
|
820068T1 |
— | ||
| replacement | |||||
|
1
|
1
850073A1
BRACKET KIT-STERN
|
850073A1 |
— | ||
|
2
|
2
826248
Screw-stern bracket
|
826248 |
— | ||
|
3
|
3
F24074
Foot-clamp screw
|
F24074 |
— | ||
|
4
|
4
69022 Screw |
69022 |
US $0.93 |
||
|
5
|
5
F424075T
Handle-graph/gray
|
F424075T |
— | ||
| replacement | |||||
|
5
|
5
F424075T3
Handle-steel/gray
|
F424075T3 |
— | ||
|
6
|
6
24198
Pin, roll, plunger to shift lever
|
24198 |
— | ||
|
7
|
7
F286647 New Genuine Part |
F286647 |
US $31.66 |
||
| replacement | |||||
|
7
|
7
832035T New Genuine Part |
832035T |
US $31.66 |
||
|
8
|
8
FA617113
New Genuine Part
|
FA617113 |
— | ||
| replacement | |||||
|
8
|
8
851924A2
New Genuine Part
|
851924A2 |
— | ||
|
9
|
9
F286114 New Genuine Part |
F286114 |
US $7.07 |
||
|
10
|
10
38489 Roll pin, latch handle to crank |
38489 |
US $4.40 |
||
|
11
|
11
F286461 Spring Lock Bar Handle |
F286461 |
US $14.85 |
||
|
12
|
12
F2864221 Screw (.312-18 Special) Tilt Lock |
F2864221 |
US $48.22 |
||
|
13
|
13
819226 Spacer-tilt lock |
819226 |
US $3.14 |
||
|
14
|
14
F429541 New Genuine Part |
F429541 |
US $38.56 |
||
|
15
|
15
69150 Wave washer, throttle cam screw |
69150 |
US $3.25 |
||
|
16
|
16
F2865441 Spring Tilt Lock |
F2865441 |
US $5.68 |
||
|
17
|
17
F617037
Bolt (.375-16 X 6.880) Stern Bracket Pivot
|
F617037 |
— | ||
|
18
|
18
20553 Washer, , alternator brace screw |
20553 |
US $1.28 |
||
|
19
|
19
F7026
Nut (.375-16)
|
F7026 |
— | ||
|
20
|
20
819707 Pin-tilt lock |
819707 |
US $14.03 |
||
