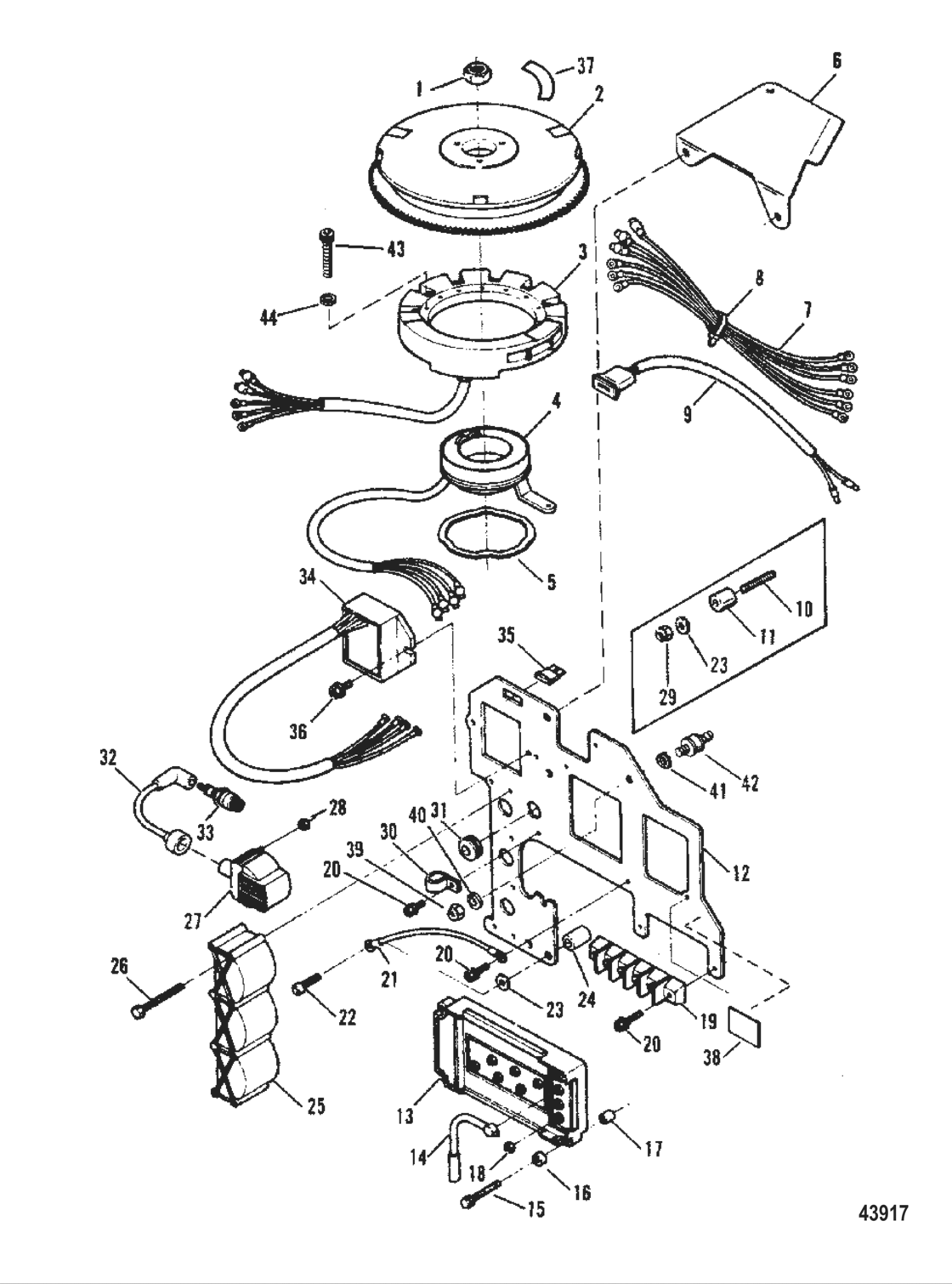

Ignition Components (91H Thru 92C) Diagram Mercury-Mercruiser Force90
- Year
- 1991-1994
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E000001 THRU 0E093699
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
--
|
--
56762 New Genuine Part |
56762 |
US $0.35 |
||
|
1
|
1
F1968 Nut (.750-16) |
F1968 |
US $17.39 |
||
|
2
|
2
817494A2
Flywheel Assembly
|
817494A2 |
— | ||
| replacement | |||||
|
2
|
2
859241T10 FLYWHEEL ASY |
859241T10 |
US $779.74 |
||
|
3
|
3
8778A10
Stator assembly
[0E000001] THRU [0E009499] |
8778A10 |
— | ||
|
3
|
3
8778A26
Stator Assembly Black
[0E009500] THRU [0E039023] |
8778A26 |
— | ||
|
4
|
4
817029A3
New Genuine Part
|
817029A3 |
— | ||
|
5
|
5
F2442
Washer Wave
|
F2442 |
— | ||
|
6
|
6
819111
N.l.a.
|
819111 |
— | ||
|
7
|
7
817441A1
Harness Assembly
|
817441A1 |
— | ||
|
8
|
8
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
8
|
8
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
9
|
9
19637 Socket-fuse |
19637 |
US $39.44 |
||
|
10
|
10
F746210
Stud (.312-18 X 2.25) (91H Thru 92C)
[0E00001] THRU [0E009499] |
F746210 |
— | ||
| replacement | |||||
|
10
|
10
826393
Stud (.312-18 X 2.250)
[0E00001] THRU [0E009499] |
826393 |
— | ||
|
11
|
11
F722932
Spacer (.750) Elec Bracket
[0E000001] THRU [0E009499] |
F722932 |
— | ||
|
12
|
12
8172685
Plate-ign-3 cyl
|
8172685 |
— | ||
| replacement | |||||
|
12
|
12
8172686
N.l.a.
|
8172686 |
— | ||
|
13
|
13
7778A12 Switch box |
7778A12 |
US $354.78 |
||
|
14
|
14
88807A34 Cable Assembly |
88807A34 |
US $4.64 |
||
|
15
|
15
812987 Screw |
812987 |
US $11.60 |
||
|
16
|
16
94304 Spacer, rectifier screw |
94304 |
US $34.34 |
||
|
17
|
17
91912 Bushing, switch box screw |
91912 |
US $12.40 |
||
|
18
|
18
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
19
|
19
817492 Block-term-4 post[0E000001] THRU [0E009499] |
817492 |
US $12.91 |
||
|
20
|
20
41805 Screw-mercury switch and cover |
41805 |
US $2.43 |
||
| replacement | |||||
|
20
|
20
418051 Screw |
418051 |
US $2.43 |
||
|
21
|
21
88807A29 Cable Assembly Black |
88807A29 |
US $18.08 |
||
|
22
|
22
F2192 Screw (.250-20 X 1.750)[0E000001] THRU [0E009499] |
F2192 |
US $5.22 |
||
|
23
|
23
71055 Washer, reverse stop screw[0E000001] THRU [0E009499] |
71055 |
US $1.74 |
||
|
24
|
24
F722452
Spacer (91H Thru 92C)
[0E000001] THRU [0E009499] |
F722452 |
— | ||
|
25
|
25
43542
New Genuine Part
|
43542 |
— | ||
|
26
|
26
817458
Screw (#10-24 X 2.250)
|
817458 |
— | ||
|
27
|
27
7370A23 Coil Assembly Ignition |
7370A23 |
US $109.44 |
||
| replacement | |||||
|
27
|
27
832757A4 Coil kit |
832757A4 |
US $109.44 |
||
|
28
|
28
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
29
|
29
F7006 Nut (.312-18)[0E000001] THRU [0E009499] |
F7006 |
US $3.14 |
||
| replacement | |||||
|
29
|
29
26484 Nut[0E000001] THRU [0E009499] |
26484 |
US $3.14 |
||
|
30
|
30
63153 "j" clip, battery cable[0E000001] THRU [0E009499] |
63153 |
US $0.69 |
||
|
31
|
31
817491 Grommet |
817491 |
US $3.94 |
||
|
32
|
32
821945A28 Cable Assembly High Tension |
821945A28 |
US $13.10 |
||
| replacement | |||||
|
32
|
32
821945T28 CABLE ASSY |
821945T28 |
US $13.10 |
||
|
33
|
33
827C Spark Plug |
827C |
US $8.82 |
||
| replacement | |||||
|
33
|
33
896329827 SP #L76V @4 |
896329827 |
US $8.82 |
||
|
33
|
33
898 Spark Plug Rfi |
898 |
US $16.82 |
||
| replacement | |||||
|
33
|
33
896329898 SP #QL76V @4 |
896329898 |
US $16.82 |
||
|
34
|
34
817411 Rect/reg-(ring)[0E000001] THRU [0E009499] |
817411 |
US $360.45 |
||
| replacement | |||||
|
34
|
34
830179A2 Volt/reg kit-ring[0E000001] THRU [0E009499] |
830179A2 |
US $360.45 |
||
|
34
|
34
8174111
Rect/reg-(bullet)
[0E009500] THRU [0E039023] |
8174111 |
— | ||
| replacement | |||||
|
34
|
34
883071A1 Reg kit-volt-bull[0E009500] THRU [0E039023] |
883071A1 |
US $368.67 |
||
|
35
|
35
812619 Fuse, yellow - 20 ampere |
812619 |
US $4.90 |
||
|
36
|
36
817504 Screw, stainless steel[0E000001] THRU [0E009499] |
817504 |
US $4.18 |
||
|
36
|
36
817505 Screw, stainless steel[0E009500] THRU [0E039023] |
817505 |
US $2.43 |
||
|
37
|
37
FA609853
New Genuine Part
|
FA609853 |
— | ||
| replacement | |||||
|
37
|
37
825149A1
Decal kit-shift to neutral
|
825149A1 |
— | ||
|
38
|
38
819526
Decal Cable Adjustment
|
819526 |
— | ||
|
39
|
39
68292 Nut |
68292 |
US $3.36 |
||
|
40
|
40
53166 Lockwasher |
53166 |
US $1.62 |
||
|
41
|
41
819869
New Genuine Part
|
819869 |
— | ||
|
42
|
42
F8124
Lockwasher (.312) (5/16" External)
|
F8124 |
— | ||
|
43
|
43
76566 Screw |
76566 |
US $4.18 |
||
| replacement | |||||
|
43
|
43
19926100 Screw (#10-24 X 1.00) |
19926100 |
US $4.18 |
||
|
44
|
44
26996 Lockwasher, stainless steel, terminal block screws |
26996 |
US $1.04 |
||
