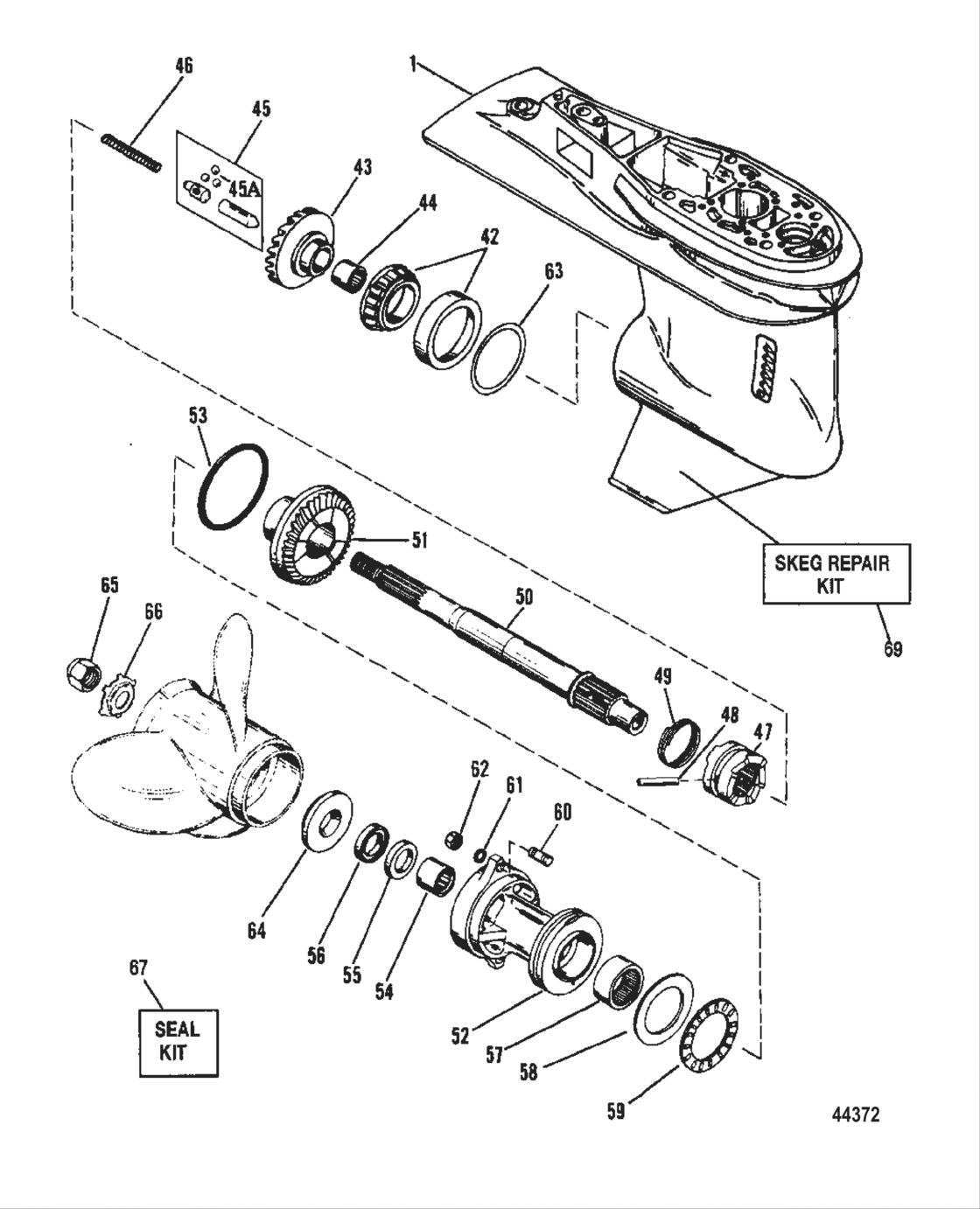

Gear Housing (Propeller Shaft) Diagram Mercury-Mercruiser Force90
- Year
- 1995
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Belgium
- Серийный номер
- 0E093700 THRU 0E138599
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
--
|
--
9011A77
Gear Housing Assembly Complete
(Painted) (LONG) |
9011A77 |
— | ||
| replacement | |||||
|
--
|
--
9011G75
GEAR HSG KIT
(Painted) (LONG) |
9011G75 |
— | ||
|
--
|
--
9011A79
Gear Housing Assembly
(Complete) (Painted) (X-LONG) |
9011A79 |
— | ||
| replacement | |||||
|
--
|
--
9011J27
ORD 1667-9011J24
(Complete) (Painted) (X-LONG) |
9011J27 |
— | ||
|
1
|
1
9011A80
Gear Housing Assembly Basic
(Painted) |
9011A80 |
— | ||
| replacement | |||||
|
1
|
1
9011T80
ORD 1667-9011T73
(Painted) |
9011T80 |
— | ||
|
42
|
42
30894A1 Bearing set, cup and cone |
30894A1 |
US $79.10 |
||
|
43
|
43
12634A2
Forward gear assembly
|
12634A2 |
— | ||
| replacement | |||||
|
43
|
43
12634T02 GEAR ASSEMBLY |
12634T02 |
US $509.57 |
||
|
44
|
44
30895 Bearing, needle |
30895 |
US $24.17 |
||
| replacement | |||||
|
44
|
44
30895T Bearing Needle |
30895T |
US $27.08 |
||
|
45
|
45
12239A1
Follower kit-cam
|
12239A1 |
— | ||
| replacement | |||||
|
45
|
45
850315A1
Follower kit-cam
|
850315A1 |
— | ||
|
45A
|
45A
44530 Ball |
44530 |
US $2.21 |
||
|
46
|
46
30622 Spring, compression - cam follower |
30622 |
US $5.68 |
||
|
47
|
47
822539 Clutch |
822539 |
US $294.22 |
||
| replacement | |||||
|
47
|
47
822539T CLUTCH |
822539T |
US $294.22 |
||
|
48
|
48
30632 Pin, cross |
30632 |
US $3.82 |
||
| replacement | |||||
|
48
|
48
8M0100263 PIN @3 |
8M0100263 |
US $3.82 |
||
|
49
|
49
30893 Spring, retainer-cross pin |
30893 |
US $3.15 |
||
|
50
|
50
12238T Propeller Shaft |
12238T |
US $714.78 |
||
|
51
|
51
12635 Reverse gear |
12635 |
US $255.07 |
||
| replacement | |||||
|
51
|
51
12635T GEAR-REVERSE |
12635T |
US $255.07 |
||
|
52
|
52
12596A2
New Genuine Part
|
12596A2 |
— | ||
| replacement | |||||
|
52
|
52
12596T2 CARRIER ASSY-BRG |
12596T2 |
US $424.20 |
||
|
53
|
53
97386 O-ring |
97386 |
US $8.40 |
||
| replacements | |||||
|
53
|
53
861844 O-ring |
861844 |
US $8.40 |
||
|
53
|
53
8M0214974 O-ring |
8M0214974 |
US $8.40 |
||
|
54
|
54
30956 Bearing, needle |
30956 |
US $23.80 |
||
| replacement | |||||
|
54
|
54
30956T Bearing Needle |
30956T |
US $25.38 |
||
|
55
|
55
76868 Seal (outside ) |
76868 |
US $112.30 |
||
| replacement | |||||
|
55
|
55
8M0204670 SEAL |
8M0204670 |
US $20.96 |
||
|
56
|
56
70081 Oil seal, bearing carrier - outer |
70081 |
US $28.22 |
||
| replacement | |||||
|
56
|
56
8M0205729 SEAL |
8M0205729 |
US $28.59 |
||
|
57
|
57
12578 Roller bearing |
12578 |
US $39.51 |
||
| replacement | |||||
|
57
|
57
12578T Bearing Roller |
12578T |
US $42.50 |
||
|
58
|
58
12577 Thrust washer |
12577 |
US $11.71 |
||
|
59
|
59
12576 Thrust bearing |
12576 |
US $34.22 |
||
|
60
|
60
429174
Stud
|
429174 |
— | ||
| replacement | |||||
|
60
|
60
8M0034456 Stud (M8 X 1.25 X 48) |
8M0034456 |
US $5.57 |
||
|
61
|
61
70132 Washer, stainless steel |
70132 |
US $1.80 |
||
| replacement | |||||
|
61
|
61
8M0042642 Washer (.323 X .562 X .063) |
8M0042642 |
US $1.80 |
||
|
62
|
62
401198 Nut |
401198 |
US $9.28 |
||
| replacement | |||||
|
62
|
62
401378 Nut |
401378 |
US $9.28 |
||
|
63
|
63
44491A1 Shim set |
44491A1 |
US $88.06 |
||
|
64
|
64
13191A1
New Genuine Part
|
13191A1 |
— | ||
| replacement | |||||
|
64
|
64
13191Q01 Thrustwasher2 |
13191Q01 |
US $27.98 |
||
|
65
|
65
52707A1
Prop Nut Kit (.750-16)
|
52707A1 |
— | ||
| replacement | |||||
|
65
|
65
52707Q1 Prop Nut Kit (.750-16) |
52707Q1 |
US $19.24 |
||
|
66
|
66
816629 Tab washer, propeller nut |
816629 |
US $5.55 |
||
| replacement | |||||
|
66
|
66
816629Q Tab Washer |
816629Q |
US $6.92 |
||
|
67
|
67
43035A4 Seal kit |
43035A4 |
US $120.55 |
||
|
68
|
68
43024A7
Repair Kit Water Pump
|
43024A7 |
— | ||
| replacement | |||||
|
68
|
68
8M0113799 Water Pump Repair Kit |
8M0113799 |
US $314.70 |
||
|
69
|
69
15985A1
New Genuine Part
|
15985A1 |
— | ||
| replacement | |||||
|
69
|
69
15985A02 Skeg-replacement |
15985A02 |
US $113.55 |
||
