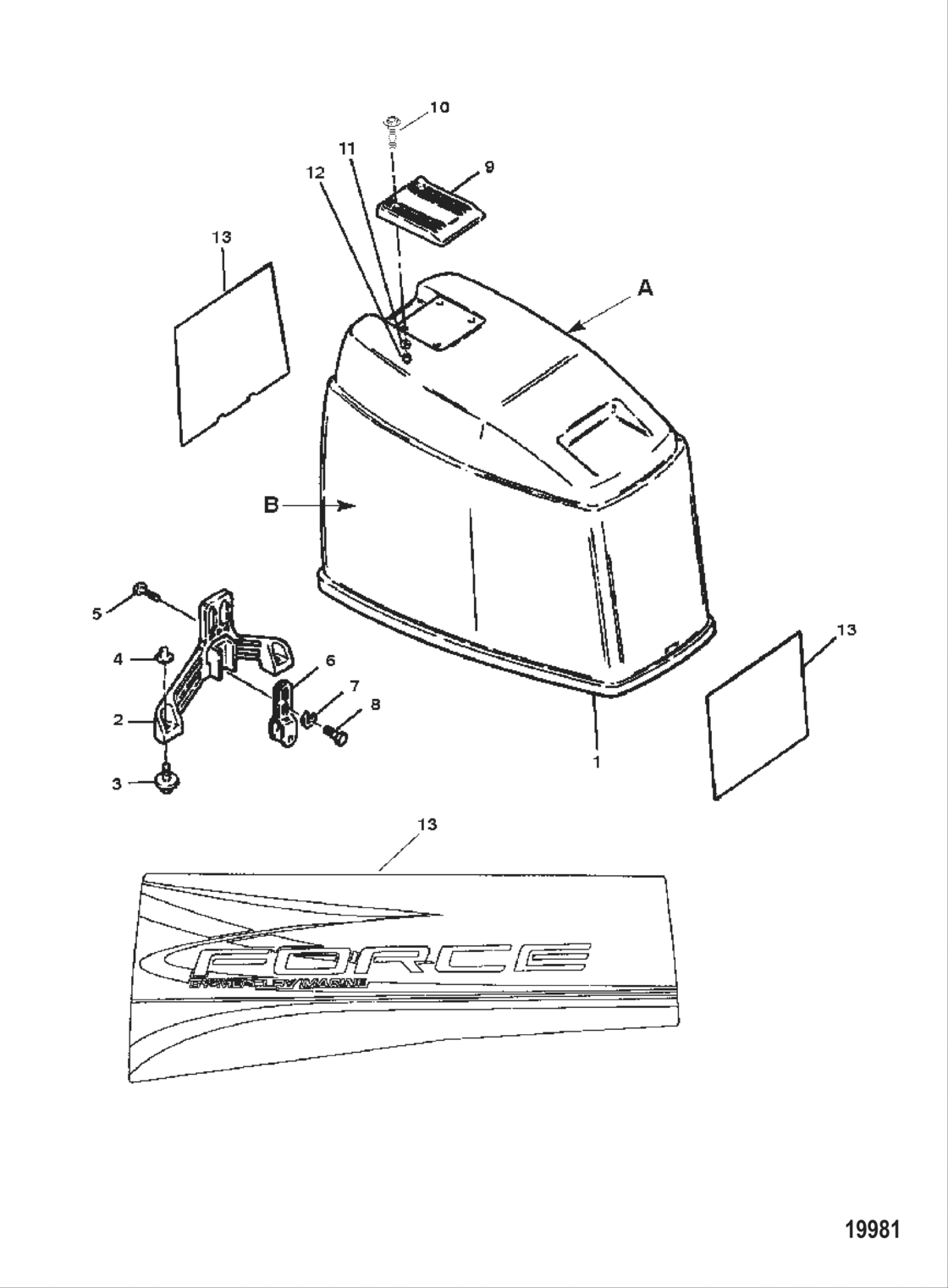

Cowl Assembly (Top) Diagram Mercury-Mercruiser Force90
- Year
- 1996
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E138600 THRU 0E202999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
819364A7
Top Cowl Assembly Top (Without Decals)
|
819364A7 |
— | ||
| replacement | |||||
|
1
|
1
819364T9
COWL ASSY-BASIC
|
819364T9 |
— | ||
|
2
|
2
8198141
New Genuine Part
|
8198141 |
— | ||
|
3
|
3
F481434 New Genuine Part |
F481434 |
US $17.78 |
||
|
4
|
4
F2088 New Genuine Part |
F2088 |
US $0.93 |
||
| replacement | |||||
|
4
|
4
91925 Nut, speed-fuel cap retainer |
91925 |
US $0.93 |
||
|
5
|
5
28639
Screw (250-20 X .625)
|
28639 |
— | ||
|
6
|
6
18173 New Genuine Part |
18173 |
US $31.89 |
||
| replacement | |||||
|
6
|
6
893763 New Genuine Part |
893763 |
US $31.89 |
||
|
7
|
7
53166 Lockwasher |
53166 |
US $1.62 |
||
|
8
|
8
90285 Screw, mounting bracket |
90285 |
US $1.62 |
||
|
9
|
9
828477
New Genuine Part
|
828477 |
— | ||
|
10
|
10
828478 Screw (.250-20 X 1.00) Stainless Steel |
828478 |
US $2.43 |
||
|
11
|
11
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
12
|
12
56374 Nut, starter motor stud |
56374 |
US $5.92 |
||
| replacement | |||||
|
12
|
12
8267098 Nut, stainless steel |
8267098 |
US $5.92 |
||
|
13
|
13
820737A95
Decal Set (Force)
(Force Models) (Includes Front-Rear-Port-Starboard) |
820737A95 |
— | ||
|
NS
|
NS
827291
New Genuine Part
|
827291 |
— | ||
|
NS
|
NS
F663985
New Genuine Part
|
F663985 |
— | ||
|
NS
|
NS
809861A96
Decal Set
(Force Tracker Models) (Includes Front-Port And Starboard Upper And Lower Wraparound Style) [0E138600] THRU [0E252999] |
809861A96 |
— | ||
| replacement | |||||
|
NS
|
NS
852953A97
Decal Set
(Force Tracker Models) (Includes Front-Port And Starboard Upper And Lower Wraparound Style) [0E138600] THRU [0E252999] |
852953A97 |
— | ||
|
NS
|
NS
852953A97
Decal Set
(Force Tracker Models) (Includes Front-Part And Starboard Upper And Lower Wraparound Style [0E253000] THRU [0E287999] |
852953A97 |
— | ||
