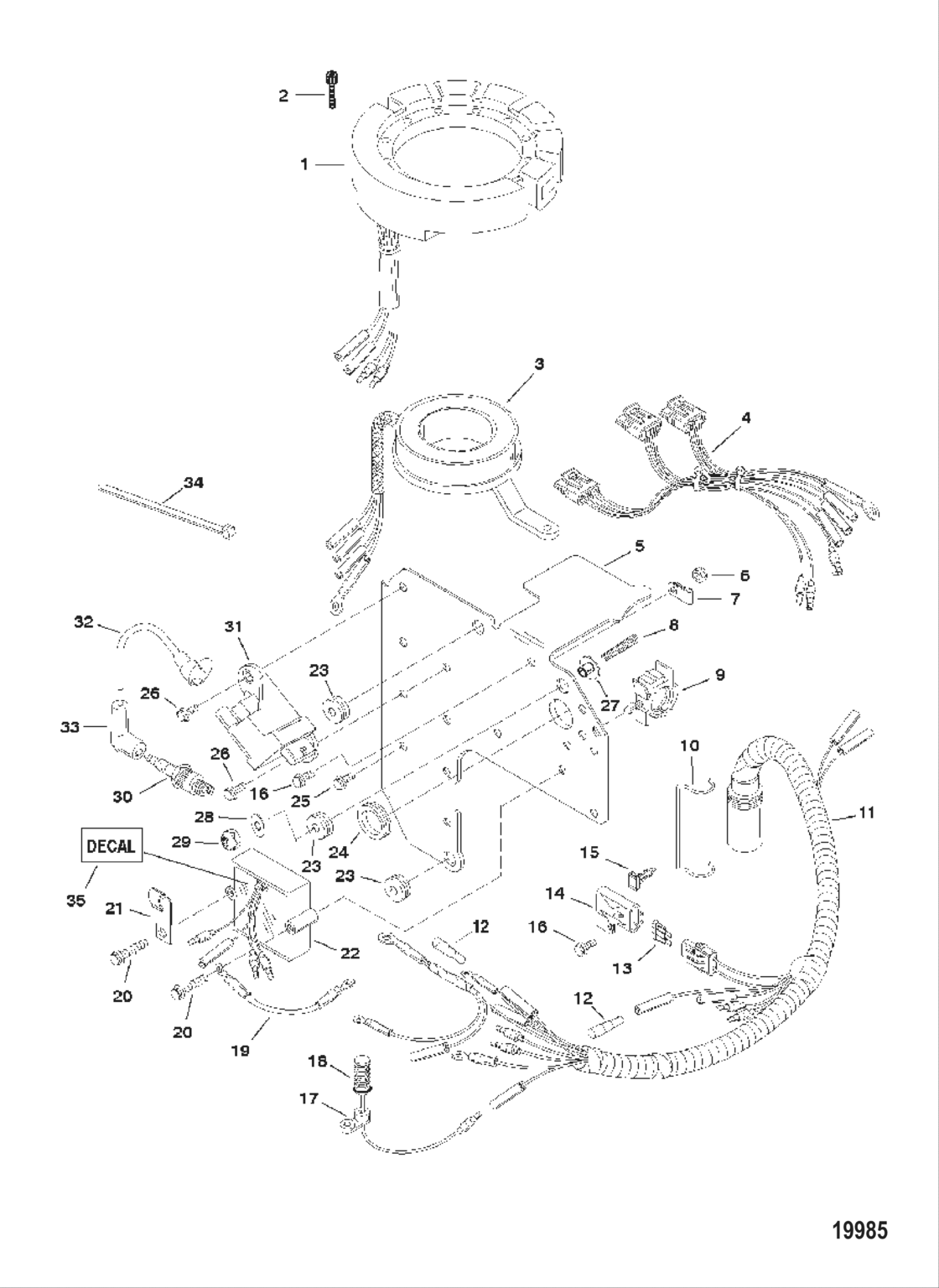

Electrical Components (Ignition) Diagram Mercury-Mercruiser Force90
- Year
- 1996
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0E138600 THRU 0E202999
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
9873A28 Stator Assembly (Black) |
9873A28 |
US $411.44 |
||
| replacement | |||||
|
1
|
1
832075A21 Stator assembly |
832075A21 |
US $564.52 |
||
|
1
|
1
832075A4
Ignition Stator Kit (Red)
|
832075A4 |
— | ||
| replacement | |||||
|
1
|
1
832075A21 Stator assembly |
832075A21 |
US $564.52 |
||
|
2
|
2
19926100 Screw (#10-24 X 1.00) |
19926100 |
US $4.18 |
||
|
3
|
3
828302A1
New Genuine Part
|
828302A1 |
— | ||
|
4
|
4
828298A1
Harness Assembly Ignition
|
828298A1 |
— | ||
|
5
|
5
8283121
Plate-ign mount
|
8283121 |
— | ||
|
6
|
6
8268336
Nut
|
8268336 |
— | ||
| replacement | |||||
|
6
|
6
401386 Nut, stainless steel |
401386 |
US $5.22 |
||
|
7
|
7
820437
Clip Harness Retainer
|
820437 |
— | ||
|
8
|
8
830228 Stud (.312-18/.250-28 X 1.750) |
830228 |
US $6.50 |
||
| replacement | |||||
|
8
|
8
8302281 STUD |
8302281 |
US $6.50 |
||
|
9
|
9
828791 New Genuine Part |
828791 |
US $2.43 |
||
|
10
|
10
92753 New Genuine Part |
92753 |
US $3.25 |
||
|
11
|
11
828297A1
Harness Assembly
|
828297A1 |
— | ||
|
12
|
12
13541 New Genuine Part |
13541 |
US $2.78 |
||
|
13
|
13
812619 Fuse, yellow - 20 ampere |
812619 |
US $3.94 |
||
|
14
|
14
828054 Cover-fuse |
828054 |
US $5.10 |
||
|
15
|
15
828991 Clip |
828991 |
US $4.40 |
||
| replacement | |||||
|
15
|
15
828991T Clip |
828991T |
US $4.40 |
||
|
16
|
16
82239312 Screw |
82239312 |
US $0.93 |
||
|
17
|
17
44552 New Genuine Part |
44552 |
US $4.86 |
||
| replacement | |||||
|
17
|
17
889733 New Genuine Part |
889733 |
US $4.86 |
||
|
18
|
18
8190221
Thermoswitch
|
8190221 |
— | ||
| replacement | |||||
|
18
|
18
819022T01 THERMOSWITCH |
819022T01 |
US $91.10 |
||
|
19
|
19
88807A21 Cable Assembly Black |
88807A21 |
US $5.68 |
||
|
20
|
20
82129135 Screw |
82129135 |
US $3.14 |
||
|
21
|
21
54457 J clip |
54457 |
US $4.18 |
||
|
22
|
22
815279T5
Reg kit-volt-bull
|
815279T5 |
— | ||
| replacement | |||||
|
22
|
22
883071A1 Reg kit-volt-bull |
883071A1 |
US $368.67 |
||
|
23
|
23
822002 Grommet |
822002 |
US $7.78 |
||
|
24
|
24
828836
Grommet
|
828836 |
— | ||
|
25
|
25
4010620 Screw, stainless steel |
4010620 |
US $3.01 |
||
|
26
|
26
82129116 Screw |
82129116 |
US $1.97 |
||
|
27
|
27
822003 Bushing |
822003 |
US $3.25 |
||
|
28
|
28
4002316
Washer
|
4002316 |
— | ||
|
29
|
29
828451
Nut (.250-28)
|
828451 |
— | ||
|
30
|
30
827C Spark Plug |
827C |
US $8.82 |
||
| replacement | |||||
|
30
|
30
896329827 SP #L76V @4 |
896329827 |
US $8.82 |
||
|
30
|
30
898 Spark Plug Rfi |
898 |
US $16.82 |
||
| replacement | |||||
|
30
|
30
896329898 SP #QL76V @4 |
896329898 |
US $16.82 |
||
|
31
|
31
827509A4 Cdm module assy |
827509A4 |
US $144.11 |
||
| replacement | |||||
|
31
|
31
827509A10 Cdm module assy |
827509A10 |
from US $144.11 |
||
|
32
|
32
821945A61 CABLE ASSY (BLACK) |
821945A61 |
US $20.40 |
||
|
33
|
33
63709A1 SPARK PLUG CAP |
63709A1 |
US $6.83 |
||
|
34
|
34
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
34
|
34
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
35
|
35
819526
Decal Cable Adjustment
|
819526 |
— | ||
|
NI
|
NI
818153A41
Powerhead Assembly
[0E138600] THRU [0E173408] |
818153A41 |
— | ||
| replacement | |||||
|
NI
|
NI
818153A64
Powerhead Assembly
[0E138600] THRU [0E173408] |
818153A64 |
— | ||
|
NI
|
NI
818153A57
Powerhead Assembly
[0E173409] THRU [0E287999] |
818153A57 |
— | ||
| replacement | |||||
|
NI
|
NI
818153A64
Powerhead Assembly
[0E173409] THRU [0E287999] |
818153A64 |
— | ||
