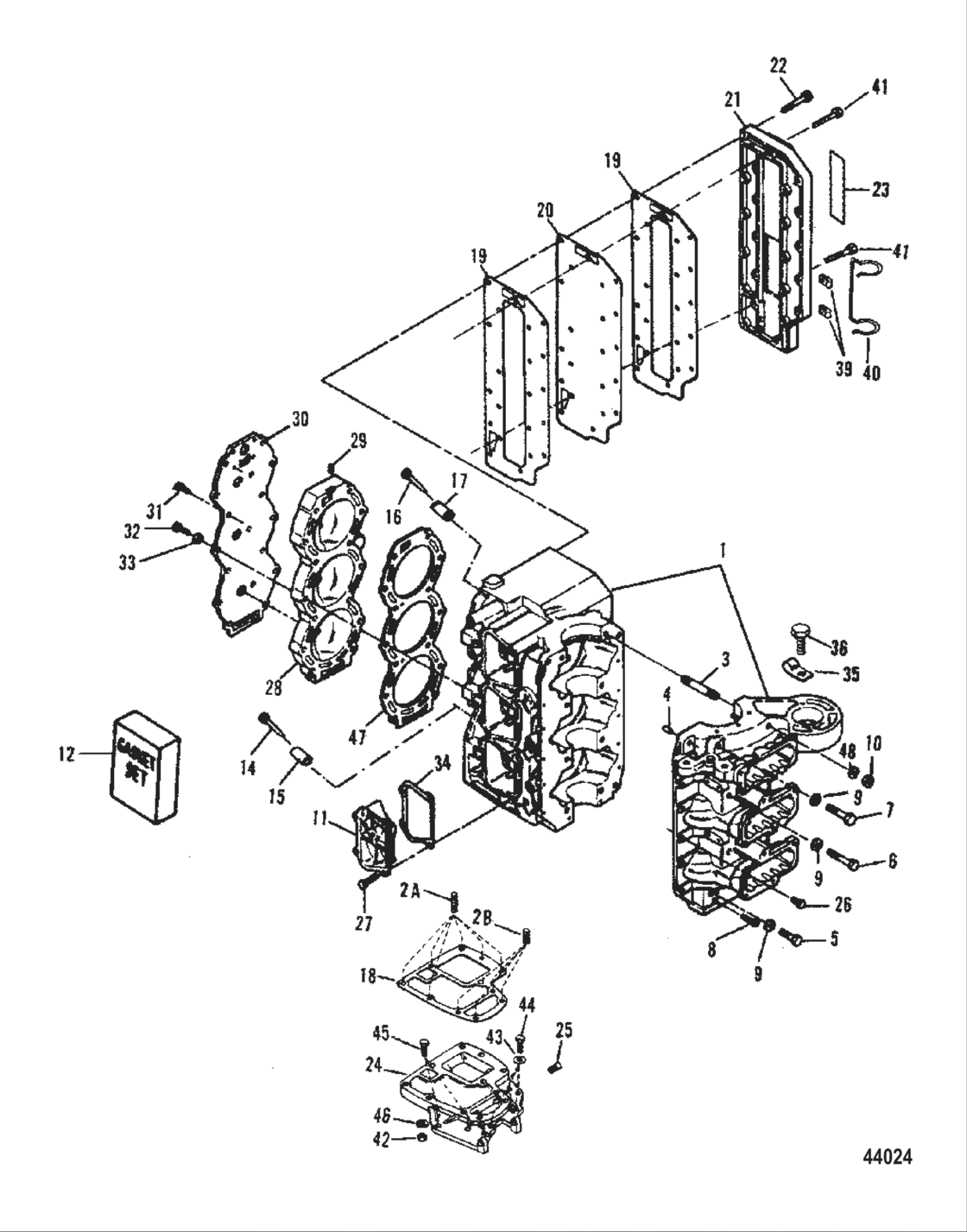

Cylinder Block Diagram Mercury-Mercruiser Force90
- Year
- 1991-1992
- Power
- 90
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 1991E THRU 1992C
- Кол-в цилиндров
- 3
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
--
|
--
817608A6
Short Block
[0E000001] THRU [0E065371] |
817608A6 |
— | ||
| replacement | |||||
|
--
|
--
817608A22
POWERHEAD KIT
[0E000001] THRU [0E065371] |
817608A22 |
— | ||
|
1
|
1
817881A5
Cylinder W/cover
[0E000001] THRU [0E065371] |
817881A5 |
— | ||
| replacement | |||||
|
1
|
1
818153A23
Cylinder Block Kit
[0E000001] THRU [0E065371] |
818153A23 |
— | ||
|
1
|
1
817608A17
Powerhead Assembly
[0E065372] THRU [0E093699] |
817608A17 |
— | ||
| replacement | |||||
|
1
|
1
817608A22
POWERHEAD KIT
[0E065372] THRU [0E093699] |
817608A22 |
— | ||
|
1
|
1
817608A18
Cylinder Block Kit
[0E065372] THRU [0E093699] |
817608A18 |
— | ||
| replacement | |||||
|
1
|
1
818153A23
Cylinder Block Kit
[0E065372] THRU [0E093699] |
818153A23 |
— | ||
|
2A
|
2A
826391
Stud (3/8-16 X 3.11") With Dri Loc
|
826391 |
— | ||
|
2B
|
2B
826395
Stud (3/8-16 X 2-1/4") With Dri Loc
|
826395 |
— | ||
| replacement | |||||
|
2B
|
2B
F85859
Stud (.375-16 X 2.25) Forward
|
F85859 |
— | ||
|
3
|
3
826394
Stud (.375-16 X 3.843)
|
826394 |
— | ||
| replacement | |||||
|
3
|
3
8263942
STUD
|
8263942 |
— | ||
|
4
|
4
20433
Dowel pin
|
20433 |
— | ||
|
4
|
4
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
5
|
5
32132 Screw, , mounting bracket |
32132 |
US $2.54 |
||
|
6
|
6
53734
Screw, , pulley
|
53734 |
— | ||
|
7
|
7
47688 Screw, , mounting bracket to engine |
47688 |
US $3.14 |
||
|
8
|
8
820589 Screw (.250-20 X 1.250) |
820589 |
US $8.82 |
||
|
9
|
9
37828 Washer, stainless steel |
37828 |
US $0.58 |
||
|
10
|
10
86226 Nut, , starter terminal |
86226 |
US $2.43 |
||
|
11
|
11
817790A1
Cover kit-port
|
817790A1 |
— | ||
|
12
|
12
FG10282 Gasket Set Powerhead[0E000001] THRU [0E065371] |
FG10282 |
US $287.66 |
||
| replacement | |||||
|
12
|
12
809748A1 GASKET SET[0E000001] THRU [0E065371] |
809748A1 |
US $287.66 |
||
|
12
|
12
820725A1
Gasket Set
[0E065372] THRU [0E093699] |
820725A1 |
— | ||
|
14
|
14
F719372 Pin Water Jacket Tube |
F719372 |
US $1.62 |
||
|
15
|
15
F719418 Tube Water Jacket |
F719418 |
US $2.54 |
||
|
16
|
16
F691372 Pin Water Jacket Tube |
F691372 |
US $1.28 |
||
|
17
|
17
F719943 Tube Water Jacket |
F719943 |
US $2.78 |
||
|
18
|
18
819381 Gasket Spacer Plate |
819381 |
US $23.33 |
||
|
19
|
19
819023 Gasket Exhaust Port Plate |
819023 |
US $22.34 |
||
| replacement | |||||
|
19
|
19
8190231 Gasket Exhaust Port Plate |
8190231 |
US $22.34 |
||
|
20
|
20
8192831 Plate Exhaust Port |
8192831 |
US $52.45 |
||
|
21
|
21
F692152
New Genuine Part
|
F692152 |
— | ||
| replacement | |||||
|
21
|
21
803932T
COVER-EXHAUST
|
803932T |
— | ||
|
22
|
22
76213 Screw |
76213 |
US $1.62 |
||
|
23
|
23
F5293981
Decal Wiring
[0E000001] THRU [0E009499] |
F5293981 |
— | ||
|
24
|
24
819750A1
N.l.a.
|
819750A1 |
— | ||
|
25
|
25
F695275
Fitting (.500-14) (.500-14)
|
F695275 |
— | ||
| replacement | |||||
|
25
|
25
827976
FITTING
|
827976 |
— | ||
|
26
|
26
28636 Scerw, cover |
28636 |
US $2.09 |
||
|
27
|
27
98254 Screw |
98254 |
US $0.46 |
||
|
28
|
28
819857 Cylinder Head Cylinder |
819857 |
US $368.45 |
||
| replacement | |||||
|
28
|
28
819857A3
Cylinder Head Kit Cylinder
|
819857A3 |
— | ||
|
29
|
29
F7221091
Plug (Nylon) Nylon
|
F7221091 |
— | ||
|
30
|
30
F692995
Cover Cylinder Head
|
F692995 |
— | ||
|
31
|
31
98254 Screw |
98254 |
US $0.46 |
||
|
32
|
32
F1883 Bolt (.312-18 X 2.375) |
F1883 |
US $4.64 |
||
|
33
|
33
34437 Washer, lifting eye screw |
34437 |
US $2.43 |
||
|
34
|
34
820500 Gasket Fuel Pump |
820500 |
US $14.72 |
||
| replacement | |||||
|
34
|
34
820500A3 GASKET KIT |
820500A3 |
US $14.72 |
||
|
35
|
35
55098 J clip |
55098 |
US $4.40 |
||
|
36
|
36
28636 Scerw, cover |
28636 |
US $2.09 |
||
|
39
|
39
820437
Clip Harness Retainer
|
820437 |
— | ||
|
40
|
40
92753 New Genuine Part |
92753 |
US $3.25 |
||
|
41
|
41
F9019381
Screw (.250-20 X .875)
|
F9019381 |
— | ||
|
42
|
42
68411 Nut |
68411 |
US $5.79 |
||
| replacement | |||||
|
42
|
42
82670912 Nut, stainless steel |
82670912 |
US $5.79 |
||
|
43
|
43
20553 Washer, , alternator brace screw |
20553 |
US $1.28 |
||
|
44
|
44
37612 Screw, , clamping |
37612 |
US $1.86 |
||
|
45
|
45
68101 Screw, , mounting bracket to engine |
68101 |
US $2.08 |
||
|
46
|
46
58643 Lockwasher, hydraulic pump screw |
58643 |
US $1.62 |
||
|
47
|
47
820438 Gasket Cylinder Head |
820438 |
US $88.93 |
||
|
48
|
48
35048 Lockwasher, clamping screw |
35048 |
US $0.99 |
||
|
NI
|
NI
817608A6
Short Block
|
817608A6 |
— | ||
| replacement | |||||
|
NI
|
NI
817608A22
POWERHEAD KIT
|
817608A22 |
— | ||
|
NI
|
NI
817608A17
Powerhead Assembly
|
817608A17 |
— | ||
| replacement | |||||
|
NI
|
NI
817608A22
POWERHEAD KIT
|
817608A22 |
— | ||
|
NI
|
NI
FG10282 Gasket Set Powerhead |
FG10282 |
US $287.66 |
||
| replacement | |||||
|
NI
|
NI
809748A1 GASKET SET |
809748A1 |
US $287.66 |
||
|
NI
|
NI
820725A1
Gasket Set
|
820725A1 |
— | ||
